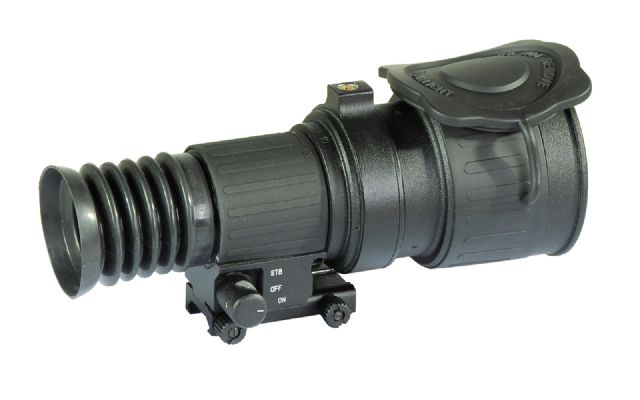

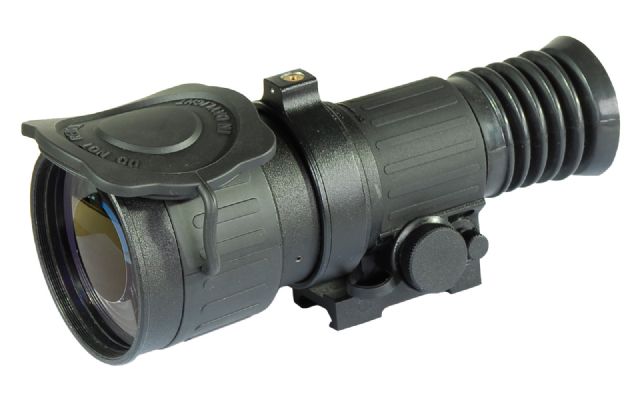

ATN PS22 Gen DK-3
The ATN PS22-Gen 3 night vision optics will one day power in a matter of seconds.

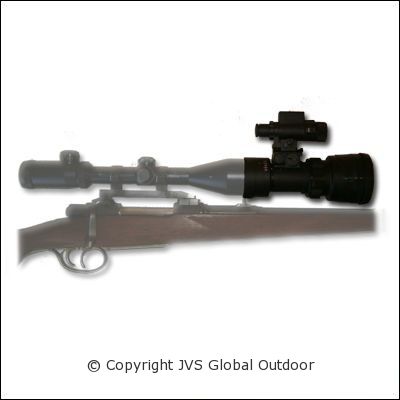

The ATN PS22-Gen3 can be used as a hand-held night vision or can be mounted using a mounting clip on the front of a rifle scope, the rifle scope night vision capability will result.
The ATN PS22-3 Gen uses a multi-Alkali third generation image intensifier tube technology for outstanding resolution (64 up to 72 lp / mm) and more than 1800 uA / lm.
The ATN PS22-3 Gen is one of the most compact and lightweight units in its class, only 640 grams.
The ATN PS22-3 Gen Night Vision system uses a Gen 3 image intensifier tube. This ingenious setup allows the shooter to go from day to night in less than 30 seconds without tools and without changes in eye relief.
Using the night vision attachment viewer does not affect the precision shot.
Combined with the brand Blaser is a higher assembly required.
The ATN PS22 front system is qualitatively the best in Europe for sale.
- Easy to install for Night Vision
- Waterproof
- Multi-coated all glass optics
- Fast catadiotric front lens system
- Lightweight and robust
- Large 40 mm eyepiece / output window
- to 1900μA/lm
- to 64 lp / mm
- Includes mounting clamp / adapter
- Two-year warranty.
We serving PS-22 mounting bracket fits almost all rifle scopes, the number in the Adapter behind what mm is the minimum and maximum outer diameter of the rifle scope that is appropriate for that adapter.
Mounting bracket / Adaptor:
ADAPTER #1: 25.4 mm t/m 30 mm - b.v. Leupold 1,5-5x20 PR; 30 mm - Leupold 1,5-5x20 MR/T M2, Zeiss 1.1-4x24 T.
ADAPTER #2: 38 mm t/m 42 mm - b.v. Meopta Artemis 2000 4x32; 42 mm - Leupold Mark 4 3-9x36, Leupold Mark 4 2.5-8x36, Kahles 4x36
ADAPTER #3: 46.7 mm t/m 50 mm - b.v. Leupold 3.5-10x40, Leupold VX-II 3-9x40; 48 mm - Zeiss 1.5-6x42, Swarovski PV-N 2.5-10x42; 48.7-49 mm - Meopta Artemis 3000 3-9x42; 49.5 mm - Meopta Artemis 3000 4-12x40; 50 mm Schmidt@Bender 10x42 PMII
ADAPTER #4: 56 mm t/m 58,7 mm - b.v. Zeiss 2,5-10x50; 57 mm - Schmidt@Bender 3-12x50; 58.7 mm - Leupold 4,4-14x50, Leupold VX-III 3.5-10x50
ADAPTER #5: 46.7 mm - b.v. Leupold 3.5-10x40, Leupold VX-II 3-9x40
ADAPTER #6: 62 mm - b.v. Zeiss 3-12x56, Swarovski 2.5-10x56, Kahles CSX 3-12x56
You can select the mounting clamp / adapter number to use during the ordering process in the Comments.

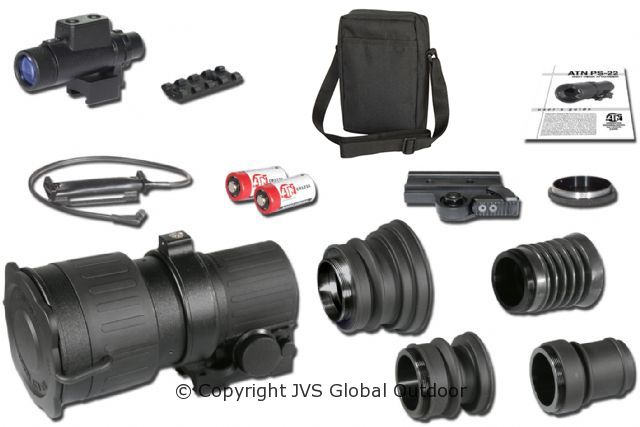

The price includes 1x adapter / mounting clamp and all standard accessories including infrared amplifier, etc.
Comes in case.
2 years WARRANTY
