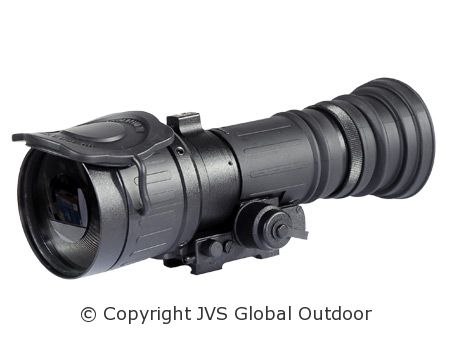

ATN PS40-3DK
DESCRIPTION

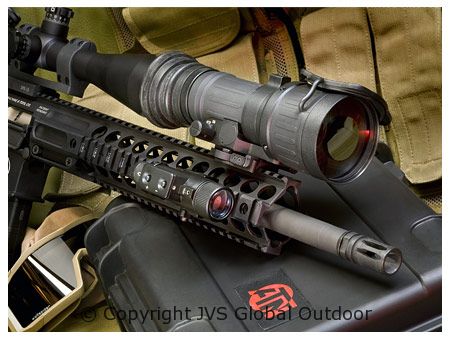

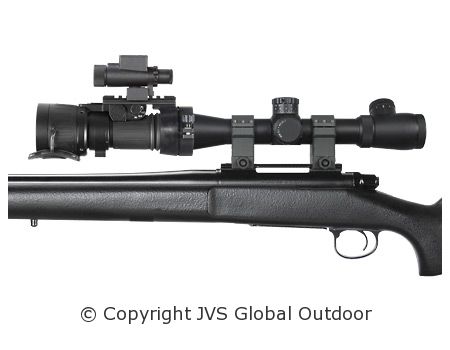

Representing the latest advancement in Night Vision optics, the ATN PS40-3DK gives your Daytime Scope Night Vision capability in a matter of seconds. The ATN PS40-3DK mounts in front of a Daytime Scope to enable nighttime operation. No shift of impact, no need to rezero nor change of eye relief occurs. The ATN PS40-3DK uses the latest in image intensifier tube technology for outstanding resolution and performance.
Precision optical alignment is essential for a front sight system to work properly. This is why each ATN PS40-3DK is individually tested and aligned on an optical scale by our engineers to provide perfect alignment. The ATN PS40-3DK is one of the most compact and lightweight NV systems in its class, at only 840 grams.
FEATURES
Easily changes daytime scope to Night Vision
Mounts in front of the daytime scope, no re-zeroing required
Multi-coated all-glass optics
Fast catadioptic front lens system
Large 40 mm output window
Lightweight and rugged
Comes with Quick Release Mount
Optional 7/8" weaver mount
Optional Scope Mounting System attaches the PS40 unit to the objective of the day scope (47-50; 56-58.7 mm diameter)
Automatic brightness control
Limited Two-Year Warranty
SPECIFICATION
Total Darkness IR System No
"SMART" Technology No
Generation 3 DK
Photocathode Type Thin-Filmed/Auto-Gated
Resolution 64-72 lp/mm
Signal to noise ratio 25-30
Figure of merit 1800 typical
Magnification 1x
Lens System F1.44, 80 mm
Proshield Lens Coating Yes
FOV 12°
Exit Pupil 40 mm
Range of Focus 10 m to infinity
Diopter Adjustment No
Controls Direct
Remote Control Yes
Automatic Brightness Control Yes
Bright Light Cut-off Yes
Infrared Illuminator No
IR Indicator No
Low Battery Indicator Yes
Power Supply 1x1.5 V AA type battery or
1x3 V CR123A type battery
Battery Life 50 hours ( 3 V )
25 hours (1. 5 V )
Reticle System No
Windage & Elewation Adjustment No
Environmental Rating Waterproof
MIL-STD-810 Yes
Operating Temperature -20 to +50 °C
Storage Temperature -50 to +50 °C
Dimensions 177 x 85 x 83 mm
7.0" x 3.4" x 3.3"
Weight 0.84 kg / 1.85 lbs
Warranty 2 years
