Blaser RD20
See more - hit better

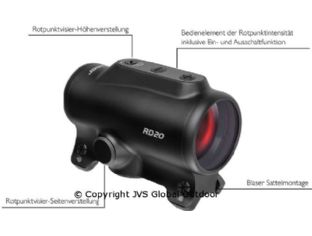

The RD20 red dot sight, specially developed for Blaser rifles, is characterised by a unique combination of great visibility and minimal field of view coverage. The Blaser saddle mount integrated into the light metal housing results in a harmonious appearance and a very low overall weight.
The RD20 is the perfect sight for quick shots at game on the move and therefore an ideal complement to the riflescope.

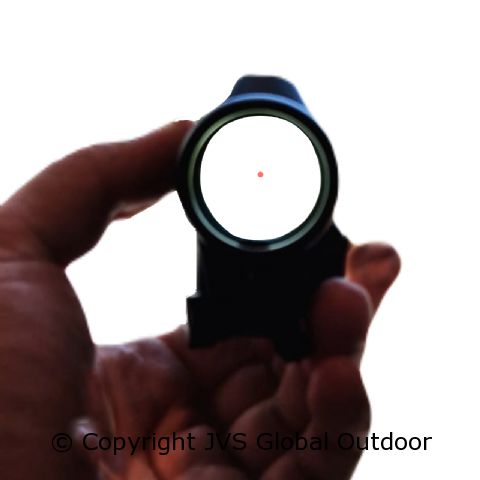

See more: 36 mm inner diameter with only 3.5 mm cover through the housing wall.
For any weather: Scratch-resistant protective lenses that are almost flush with the housing make it easy to wipe off dust, water droplets or snow.
Always ready: Up to 50,000 hours of battery life thanks to intelligent switch-off function.
IIC - Intelligent Illumination Control
The red dot switches off when the weapon is carried with the muzzle up or down and when the weapon is laid down on the stand.
It is automatically reactivated immediately when the weapon is brought to the firing position.
After six hours without button operation, the RD20 switches itself off and therefore does not have to be switched off manually at the end of the hunting day.
Thanks to this energy-saving concept, a battery life of up to 50,000 hours is achieved.
Technical Specifications
| Usable free diameter / Clear aperture | 36 mm |
| Red dot sight diameter | 2 MOA or 58 mm / 100 m |
| Magnification | 1x (no magnification) |
| Parallax-free adjustment | 50 m |
| Adjustment range height / side | 300 cm / 100 m |
| Adjustment per click | 2 cm / 100 m or 1 cm / 50 m |
| Length x Width x Height | 98 x 44 x 66 mm |
| Weight | 195 g (ready to use) |
| Water resistance | 0.4 bar / 4 m water depth |
| Battery life | up to 50,000 hours |
| Illumination setting | 30 levels, continuously dimmable |
| Operating temperature | -25°C to +50°C |
| Shutdown functions | IIC function |
