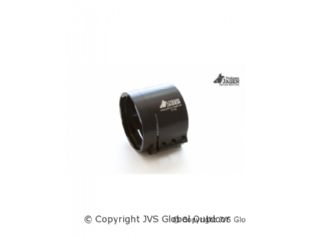

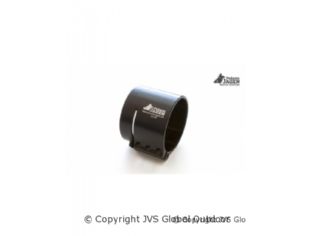

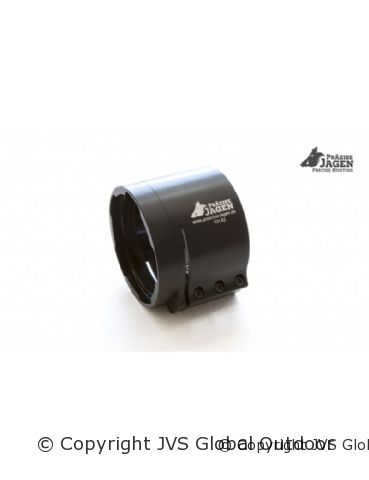

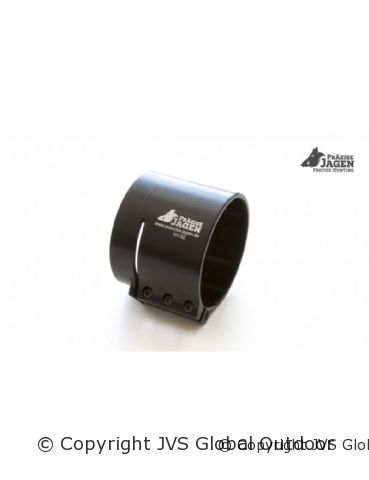

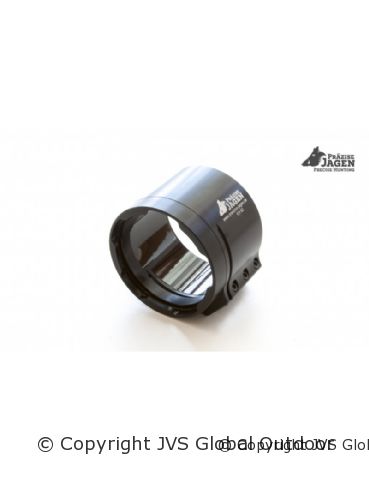

Basic Clamp for Riflescope
The basic clamp is slid over the riflescope lens for a length of 40 mm (or 35 mm for KH-30 to KH-38) and screwed tight there. It remains permanently on the riflescope. 4 mm of space is required between the riflescope and the barrel for installation. Our basic clamp offers 3.5 mm. For extremely low-mounted riflescopes, we offer a “Low Scope” basic clamp with a diameter of 62 mm and 63.5 mm, which has a recess milled towards the barrel root.
A protective film is applied to the contact surfaces of the basic clamp, which prevents damage and increases adhesion to the riflescope.
This ensures that the basic clamp and the clip are not pulled off the riflescope, even when using magnum calibers. A special inner contour (three-point support on the riflescope) ensures that the attachment can be precisely aligned with the riflescope. The bayonet on the front of the basic clamp guarantees absolutely repeatable alignment, even after hundreds of applications.
Our basic clamp is made from a single piece of high-quality aluminum and is protected against corrosion and wear by a hard-anodized layer.
Please note: Observe the legal regulations of your local government. Installation is at your own risk.
Specifications
- Material: high-quality aluminum
- Surface: black anodized
- Wall thickness: 3.5 mm
