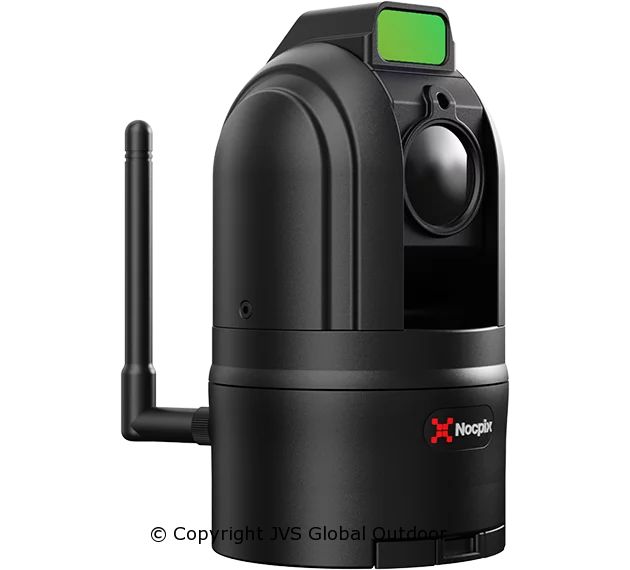

Nocpix MT Series Thermal Dome Camera M6T25S - AI-powered 360° dome scanner for hunting
The MT series from Nocpix is an innovative thermal dome scanner specifically designed for hunting applications. It is ideal for vehicle-based hunting but also perfectly suited for various hunting methods and styles. The combination of intelligent technology and robust hardware ensures reliable performance in all conditions.
Equipped with advanced AI models and powerful computing capacity, the MT series remains extremely stable even while driving. It excels in accurate detection, tracking and observation of game, delivering high-quality thermal images for maximum situational awareness.
AI-driven intelligent performance
Powered by the YOLO v5 deep learning model and 2T computing performance, the MT simplifies the entire hunting workflow. Trained on extensive datasets, the system enables fast automatic target recognition and precise tracking.
Targets are clearly marked with bounding boxes, making identification, assessment and tracking of game faster and easier.
Brushless 360° panoramic view with 90° tilt range
The MT provides full 360° panoramic coverage combined with a 90° tilt range. This ensures comprehensive area coverage with virtually no blind spots, allowing seamless target tracking.
Ultimate stabilization
Thanks to advanced 2-axis stabilization, the MT delivers a consistently stable image even on rough terrain or while driving. Automatic calibration compensates for vibrations and external environmental influences.
Extremely quiet operation
The M6T25S features a high-quality brushless motor for 360° horizontal rotation combined with a dynamic balancing design. This results in very low noise levels during movement, ensuring an uninterrupted hunting experience.

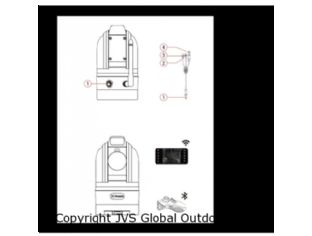

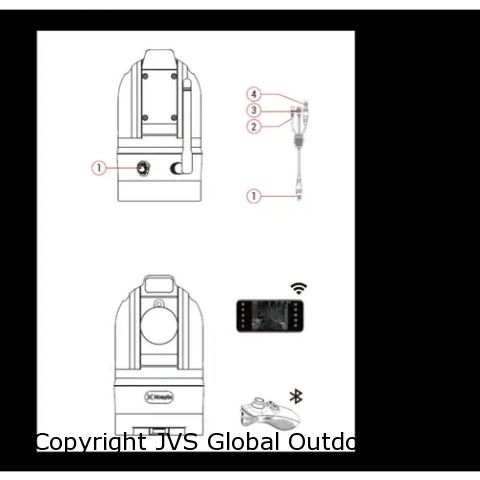

Multiple connection and viewing options
The MT series supports both cable and WiFi connections. The cable connection offers maximum transmission stability, while WiFi provides flexibility and wireless convenience. Real-time image streaming is available via the Nocpix app on smartphones, tablets and iPads.
Key features
- AI-powered detection and tracking based on YOLO v5
- 360° panoramic view with 90° tilt range
- 2-axis image stabilization with automatic calibration
- Extremely quiet brushless motor operation
- Real-time image streaming via cable or WiFi

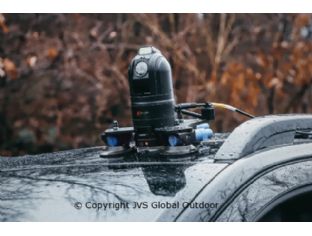

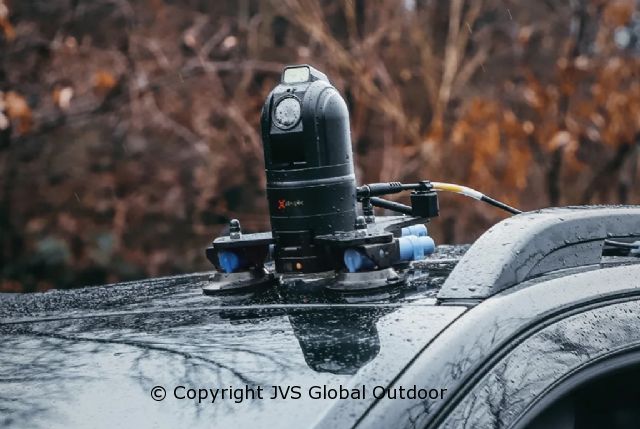

- Vehicle or fixed mounting options

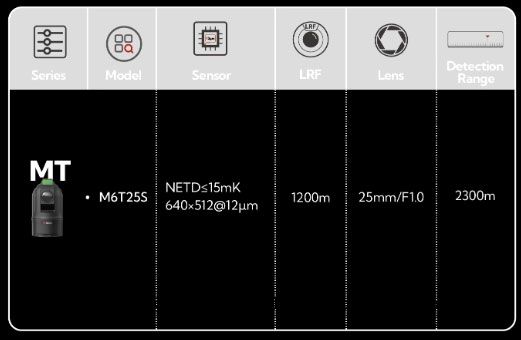

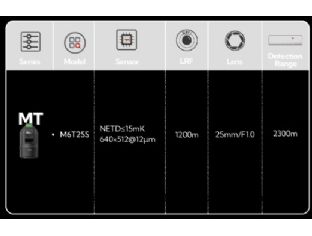

Technical specifications
| Model | M6T25S |
| Thermal sensor | 640 × 512, 12 μm |
| NETD | ≤ 15 mK |
| Frame rate | 50 Hz |
| Objective lens | 25 mm F1.0 |
| Field of view (H × V) | 17.5° × 14° |
| Detection / Recognition / Identification | 2300 m / 590 m / 290 m |
| Magnification | 1x, 2x, 4x |
| Azimuth range | 360° continuous rotation |
| Pitch range | -90° to +90° |
| Motor | Brushless, low noise, stable performance |
| Preset points | Up to 8 |
| Auto cruise | Preset point tracking |
| Battery type | Rechargeable and replaceable battery pack (7 h x2) |
| Backup power | 12V DC via cable |
| Laser safety class | Class 1 |
| Max. rangefinder distance | 1200 m |
| Mounting | Fixed mount with bracket |
| IP rating | IP56 |
| Operating temperature | -20 to +60 °C |
| Weight | 889 g |
| Dimensions | Ø80.2 × 146.6 mm |
Disclaimer
Products supplied by JVS Global Outdoor may not be resold to sanctioned entities or countries. Export of this optical device outside the EU without a license is prohibited by law.
