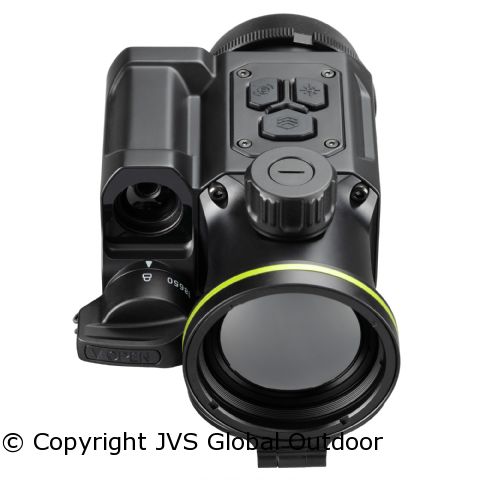

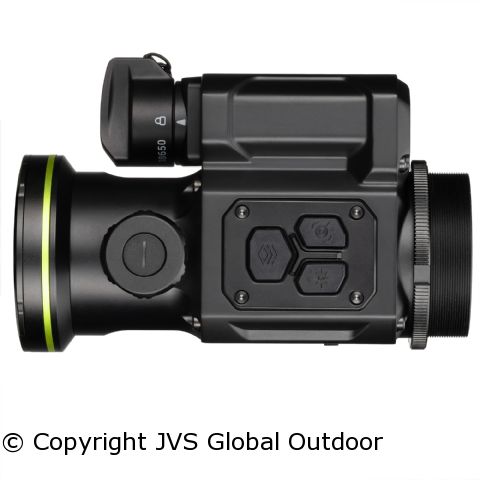

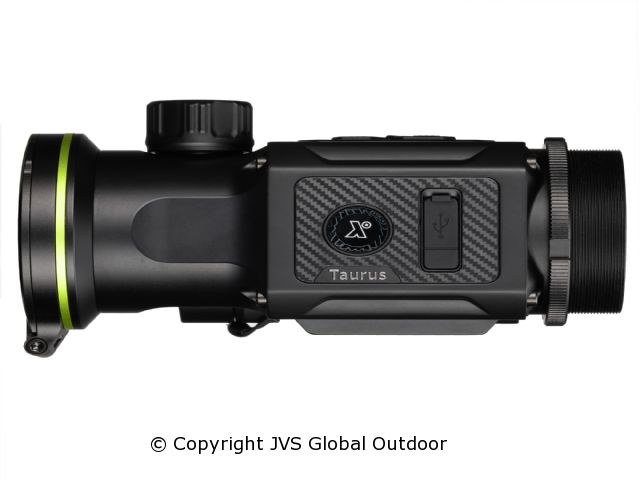

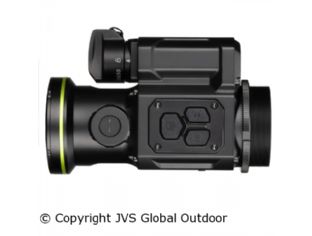

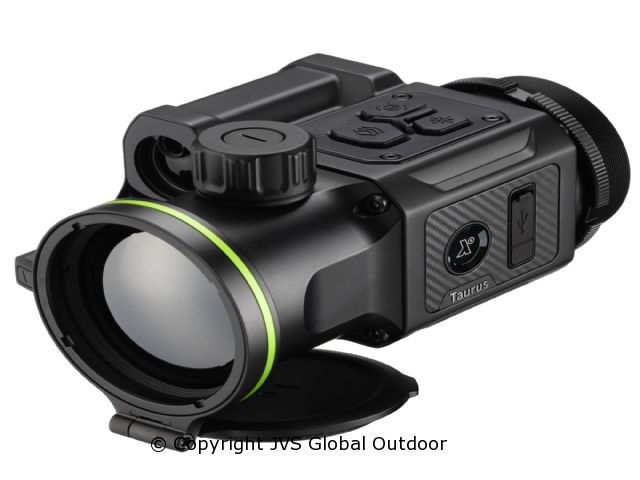

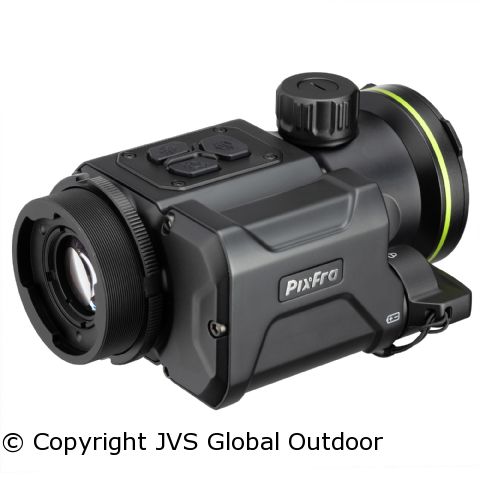

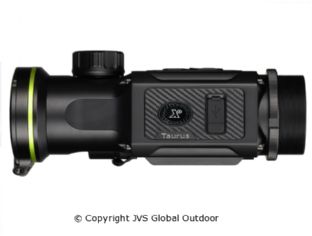

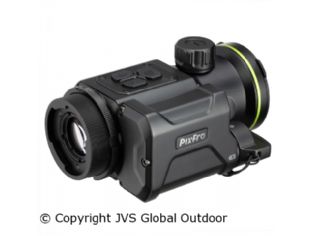

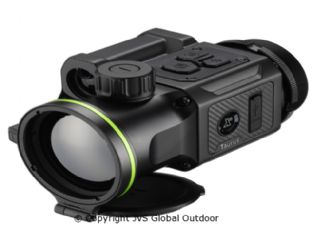

Product Information "PIXFRA Taurus T650 LRF Thermal Imaging Clip-On with Laser Rangefinder"
Powerful and Compact Thermal Imaging Clip-On
The PIXFRA Taurus T650 LRF combines advanced technology with a compact design. The extremely sensitive and high-quality VOx 640x512, 12µm, <18mK NETD sensor, the f1.0 50-mm lens, and the large 1920 x 1080 OLED display provide reliable detection and a sharp display of heat sources up to 2600 m. Despite these powerful components, the Taurus remains compact and lightweight.
High Repetition Accuracy
Thanks to the advanced subpixel-zeroing technology with an ultra-fine click value of 0.9 cm at 100 m, the point of impact remains accurate after each shot.
Integrated Precise Laser Rangefinder
The built-in laser rangefinder accurately measures distances up to 1000 m and is completely invisible to animals.
Huge Detection Range
With a wide field of view of 15.4 m (at 100 m) and an enormous detection range of 2600 m, the PIXFRA Taurus T650 LRF is the perfect companion in the field and on the high seat.
Advanced Firmware for Sharp Images
The thermal imager is equipped with the latest PIPS 2.0 Firmware (Pixfra Imaging Processing System), which enhances image quality with improved zoom, noise reduction, and edge sharpening.
AI-Supported Adaptive Image Calibration
All models provide AI-optimized imaging. The AI-powered Adaptive Image Calibration (AAIC) learns with each shot and continuously optimizes the image quality.
6 Color Palettes:
Available color palettes: White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia.
One Battery for the Whole Night
A powerful interchangeable battery (2 included) offers up to 6 hours of usage time, ensuring long sessions without interruption.
Robust and Reliable in All Conditions
With an IP67 certification, the thermal imager is fully dust- and waterproof. The rugged yet lightweight magnesium alloy housing ensures that the device functions flawlessly, even in extreme weather conditions such as rain or fog. In addition, the device works reliably, even in temperatures from -30 °C to +55 °C, thanks to temperature-stabilized technology.
Stable Livestream via WiFi to Smartphone and Tablet
Thanks to WiFi connectivity, the device can quickly and stably connect with up to four devices at the same time.
Recording and Storage Function for Photos and Videos
With 32 GB of internal storage, there is plenty of room to capture images and videos.
FEATURES
- Powerful clip-on for mid-range to long-range distances
- Integrated, precise, and animal-invisible laser rangefinder (up to 1000m)
- M 52 0.75 thread
- Ultra-fine click value of 0.9 cm at 100 m
- 640x512, 12µm, <18mK NETD thermal image sensor
- 50 mm f1.0 lens with 2600 m detection range
- Intuitive and silent operation, including Bluetooth remote control
- Shockproof up to 6000 joules
- Field of view (H: 15.4 m; V: 12.3 m) for optimal overview
- PIPS 2.0 Firmware: improved zoom, noise reduction, and edge sharpening
- AI-optimized image
- 6 color palettes: White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia
- Water- and dustproof according to IP67
- Metal housing and lens cover
- Interchangeable battery, up to 6 hours of battery life per battery
- Hotspot tracking for accurate detection of heat sources
- Recording and storage function for photos and videos
- 32 GB internal storage
- Fast and stable livestream via WiFi
- Dimensions/Weight: 139 mm × 102 mm × 73 mm / 580 g
PACKAGE CONTENTS
- 1× PIXFRA Taurus T650 LRF Thermal Imaging Clip-On with Laser Rangefinder
- 2× 18650 batteries
- 1× Charger for 2× 18650 batteries
- 1× Remote control with magnetic holder
- 1× USB-C cable
- 1× Carry strap
- 5× Heat pads
- 1× Mounting tool
- User manual
Specifications PIXFRA Taurus T650 LRF Thermal Imaging Clip-On with Laser Rangefinder
| Automatic shutdown | Yes |
| Batteries included | Yes |
| Batteries required | Yes |
| Frame rate | 50 Hz |
| Housing material | Metal |
| Compatible with Pulsar remote | No |
| Detection range (m) | 2600 m |
| Objective lens diameter (mm) | 50 |
| Diopter compensation | No |
| Field of view (degrees) | 8.7° |
| Field of view (m/100m) min. | 15.4 m |
| Field of view at 1000 m | 154 m |
| Head mountable | No |
| Impact resistance / rifle (J) | 6000 J |
| Interfaces | USB Type-C |
| Internal memory | 32 GB |
| Calibration | Automatic, Manual |
| Color | Black |
| Color palette | Yes |
| Battery life (h) | 6 hours |
| NETD (< mK) | 18 |
| Net weight (without accessories) (g) | 535 g |
| Eyepieces for glasses wearers | No |
| Product family [Night vision] | Taurus |
| Rangefinder | Yes |
| Resolution | 1920 x 1080 pixels |
| Screen type | OLED |
| Close-up focusing (m) | 6 m |
| Tripod thread | Yes |
| Stream Vision compatible | No |
| Max temperature range (°C) | 55°C |
| Min temperature range (°C) | -30°C |
