Volans – Advanced Technology for Hunting and Observation
The Volans from Pixfra is designed for demanding users who want to get the most out of their day and night shots. Thanks to the combination of high-quality optics, smart features, and robust build quality, this model is ideal for accurate detection, observation, and shot placement determination in various conditions.
Key Features:

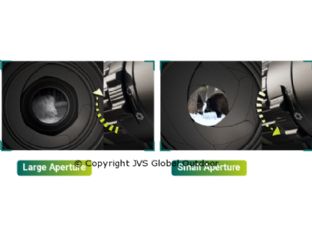

Infinitely adjustable aperture (F1.2 – F3.0)
With the variable aperture, you can adjust the optics precisely to the lighting conditions of the moment. From bright daylight to deep dusk, with a range of F1.2 to F3.0, you have full control over the brightness and sharpness of your image.
4K Starlight CMOS sensor
The advanced 4K sensor with starlight technology provides exceptional detail even in minimal light. With a resolution of 3840 × 2160 pixels and a base magnification of 4.3x, the Volans offers razor-sharp image quality for reliable target recognition across the board.
Round 1.25-inch display
The circular display provides a comfortable, natural viewing experience. Combined with the intuitive round user interface, you can easily navigate through the features – both during the day and at night.
Laser rangefinder up to 1000 meters
With the integrated LRF, you can quickly and extremely accurately determine the distance to your target. The range of 1000 meters and a precision of ±1 meter make long-range shots more reliable than ever.
Built-in ballistic calculation module
The smart ballistic feature automatically calculates the optimal point of aim based on input ammunition data, environmental factors, and distance. Thanks to the link with the laser rangefinder, you can confidently shoot at long distances.
Quick battery change
Time lost in changing batteries is a thing of the past. The smart twist-off construction gives you immediate access to the battery compartment for a quick, tool-free change.
70 mm eye relief
With a generous eye relief of 70 mm, the eyepiece offers a comfortable and safe viewing experience, even during extended use or when wearing glasses.
Advanced zeroing via the Pixfra Outdoor App
With the integrated zeroing function via the app, you can adjust your scope more accurately than ever before. Create multiple profile groups and finely adjust XY values – all via your smartphone.
Local gallery on the device
View, delete, or browse your recordings directly on the device. The Volans makes managing your images as intuitive as capturing them.
Full metal housing with extreme shock resistance
The robust aluminum alloy protects against heavy shocks up to 1000 g/ms, so you can always rely on your equipment – even under the toughest conditions.
Specifications PIXFRA VOLANS V850 LRF
| Product Model | V850LRF |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Frame Rate | 50 Hz |
| Lens (Focal Length) | 50 mm, F1.2 to 3.0 adjustable aperture |
| Detection Range | Day: 1,000 m |
| Min. Focusing Distance | 5 m |
| Magnification | 4.3× |
| Field of View @100 m | 8.6 m × 8.6 m |
| Screen | LCD 1.25", 800 (H) × 800 (V) |
| Exit Pupil | 10 mm |
| Eye Relief | 70 mm |
| Image Mode | 4 (Colour / Night / Green / Yellow) |
| Max. Recoil | 1,000 g / 0.4 ms |
| Ballistic Calculation | Yes |
| Storage | Built-in 64 GB |
| LRF | 1,000 m |
| Power Supply | 5 VDC / 2 A, USB Type-C |
| Battery Type | One rechargeable Lithium battery (external) |
| Standby Time | ≥5.5 h @ 25 °C (Wi-Fi off) |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Protection | IP67 |
| Product Dimensions | 434.3 mm × 86.8 mm × 86.9 mm (17.1" × 3.42" × 3.42") (L × W × H) |
| Packaging Dimensions | 499 mm × 155 mm × 142 mm (19.65" × 6.1" × 5.59") (L × W × H) |
| Net Weight | ≤1,040 g (2.29 lb) (battery excluded) |
| Gross Weight | ≤2.6 kg (5.73 lb) |
