Compact and Handy Thermal Spotter for Hunting

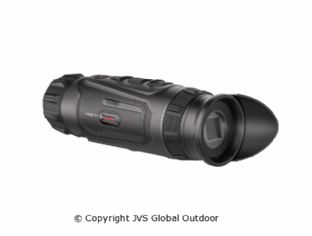

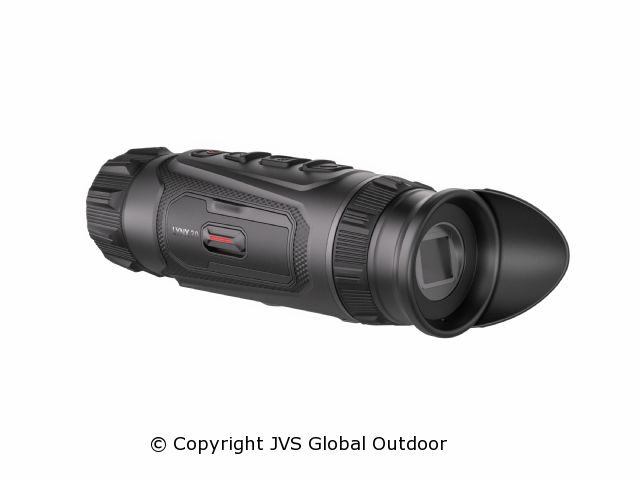

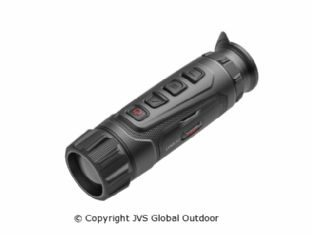

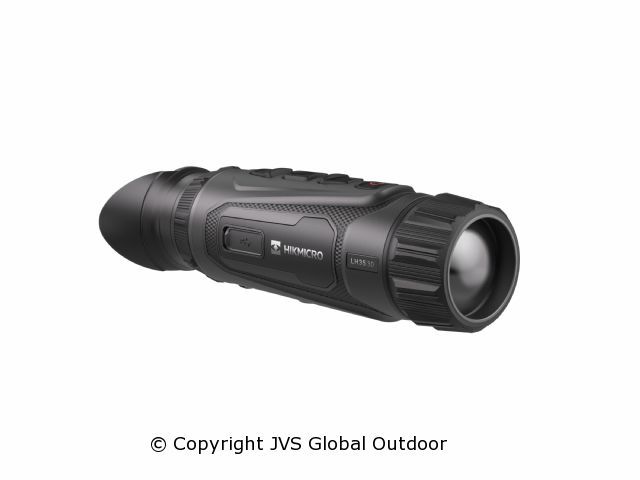

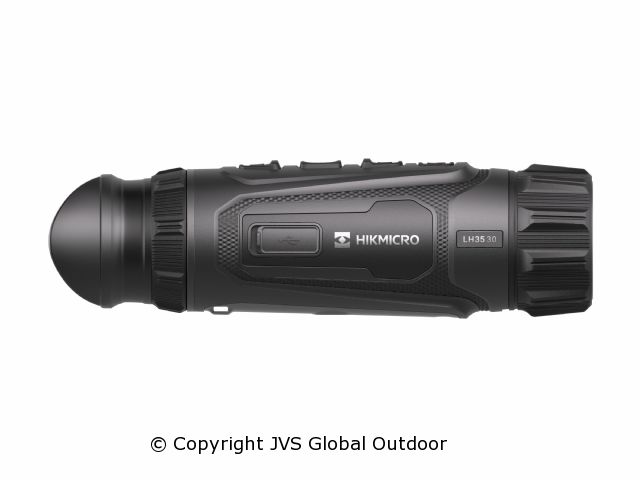

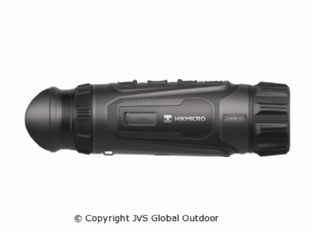

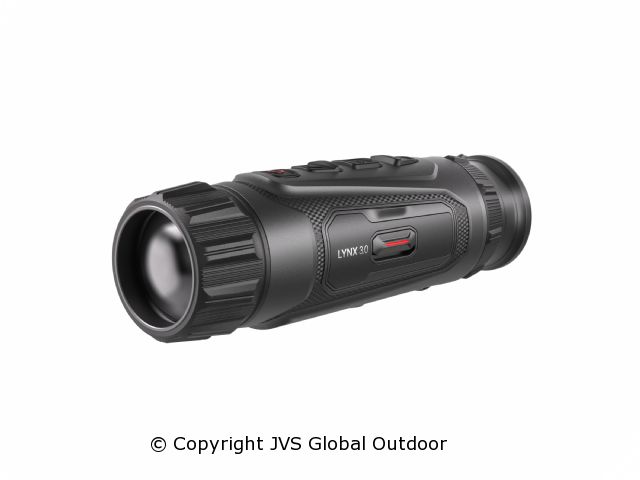

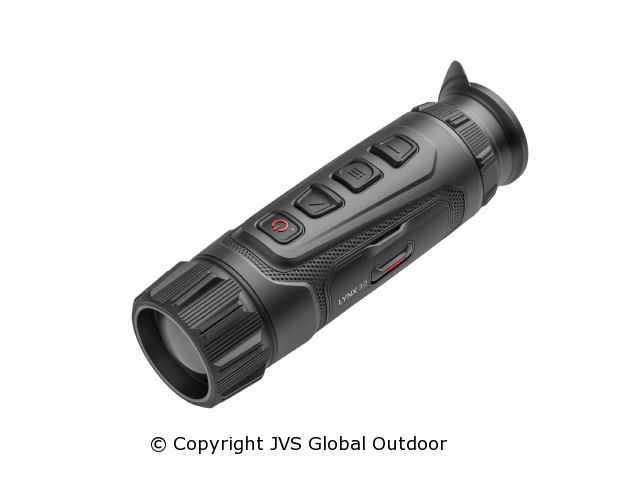

The HIKMICRO Lynx 3.0 LH35 is a powerful and ultra-compact thermal monocular, designed for hunters and wildlife observers who demand both high image quality and mobility. With a high resolution of 384×288 pixels, a 12 μm pixel pitch, and an extremely sensitive sensor (<20mK NETD), this device delivers razor-sharp thermal imaging – even in challenging weather conditions like fog, rain, or complete darkness. Thanks to its wide field of view and detection range of up to 1800 meters, it is ideal for both wide-area scanning and precise wildlife spotting.
Main Features
- 384×288 resolution with 12μm pixel pitch – Provides detailed thermal images for accurate observation.
- Highly sensitive sensor (<20mK NETD) – Detects minimal temperature differences, ideal for poor weather conditions.
- OLED HD display (1024×768) – Ensures a clear and smooth image, even during extended use.
- Long detection range up to 1800 meters – Perfect for hunting in open fields or forests.
- Compact and lightweight (only 500g) – Ideal for mobile use without fatigue.
- Digital zoom up to 8x – Allows precise magnification without losing sight of the target.
- 4 color palettes (Whitehot / Blackhot / Fusion / Redhot) – Adaptable to your preference and environment.
- Intuitive controls – Easy-to-use buttons and quick startup for immediate field deployment.
- IP67 rated – Waterproof and dustproof, built for rugged conditions.
- Replaceable Li-ion battery (up to 6.5 hours) – Long-lasting performance with optional backup battery support.
Included Accessories
- Carrying case
- USB-C charging cable
- Eyecup
- Wrist strap
- User manual
- 1x replaceable Li-ion battery
Key Specifications HIKMICRO Lynx 3.0 LH35
| Model | HIKMICRO Lynx 3.0 LH35 |
| Resolution and μm | 384×288 @ 12μm |
| Sensor type | VOx uncooled focal plane array |
| NETD | < 20 mK |
| Detection range | 1800 meters |
| Rangefinder | No |
| Lens diameter | 35 mm |
| Field of View | Wide (10.66° × 8.00°) |
| Screen type | OLED HD 1024×768 |
| Battery life | Up to 6.5 hours |
| Battery replaceable | Yes |
| Weight | 500 grams |
| Color Palettes | Whitehot / Blackhot / Fusion / Redhot |
| Zoom options | 1x / 2x / 4x / 8x |
| Adjustable contrast | Yes |
| Water-resistance rating | IP67 |
Comparison with other Lynx 3.0 models
| Model | Resolution | Detection Range | Lens | Weight | Target User |
| LE10 3.0 | 256×192 @ 12μm | 500 meters | 10 mm | 290 g | Entry-level, short range |
| LE15 3.0 | 256×192 @ 12μm | 700 meters | 15 mm | 310 g | Entry-level with extended range |
| LH15 3.0 | 384×288 @ 12μm | 800 meters | 15 mm | 370 g | Compact with high resolution |
| LH19 3.0 | 384×288 @ 12μm | 900 meters | 19 mm | 380 g | Portable with balanced optics |
| LH25 3.0 | 384×288 @ 12μm | 1200 meters | 25 mm | 410 g | Versatile, extended reach |
| LH35 3.0 | 384×288 @ 12μm | 1800 meters | 35 mm | 500 g | Experienced hunters, long range |
Additional Manufacturer Information
- Storage: 16 GB internal memory
- Wi-Fi support for live view via HIKMICRO Sight app
- Photo and video recording functionality
- Automatic and manual calibration
- Operating temperature: -30 °C to +55 °C
Try the HIKMICRO Lynx 3.0 LH35 in person
This model is available for demonstration by appointment at JVS Global Outdoor. Get expert advice from experienced hunters to find the right device for your hunting conditions.
