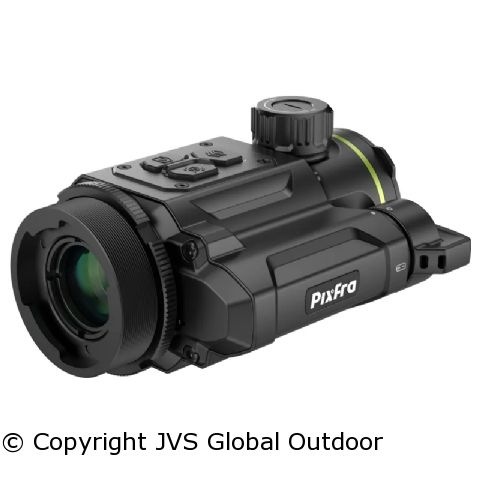

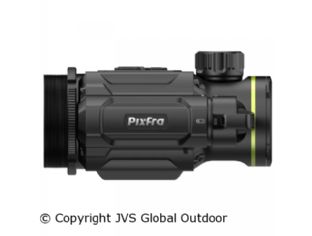

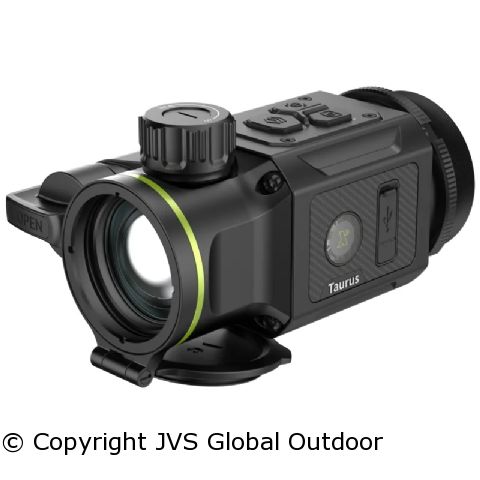

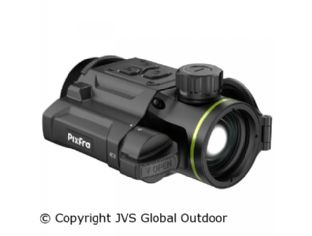

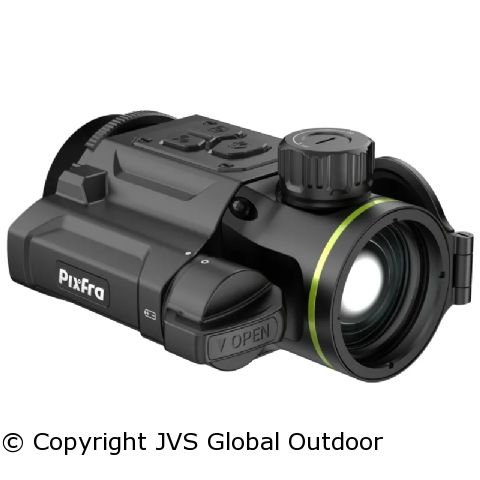

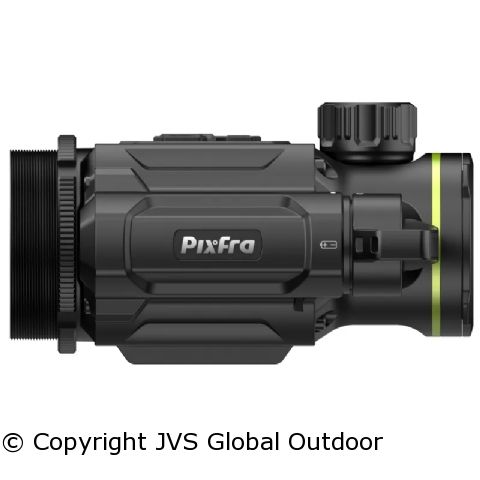

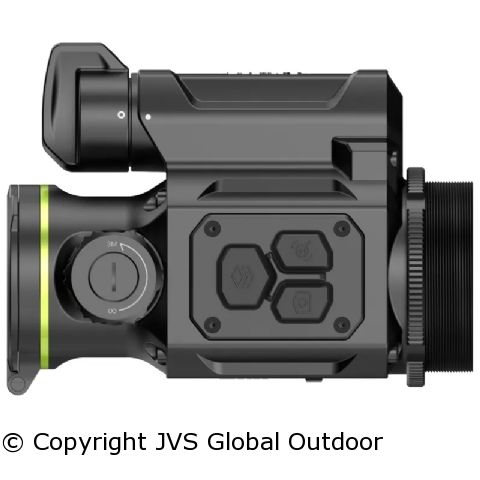

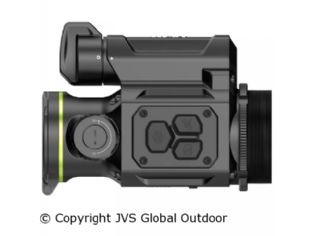

Product Information "PIXFRA Taurus T635 Thermal Clip-On"
High resolution, compact, and powerful
The PIXFRA Taurus T635 combines advanced technology with a compact design. The extremely sensitive and high-resolution VOx 640×512, 12µm, <18mK NETD sensor, the f1.0 35-mm lens, and the large 1920 × 1080 OLED display ensure reliable detection and a clear thermal image up to 1800 m. Despite its powerful components, the Taurus remains compact and lightweight.
High repeatability accuracy
Thanks to advanced Sub-Pixel Zeroing technology with an ultra-fine click value of 0.9 cm at 100 m, the impact remains consistent after every shot.
Wide field of view and high resolution
The wide field of view of 22 m (at 100 m), the large detection range of 1800 m, and the high sensor resolution make the PIXFRA Taurus T635 the perfect all-rounder for woodland, stalking, and medium-range distances.
Modern firmware for razor-sharp images
The thermal imager is equipped with the latest PIPS 2.0 firmware (Pixfra Imaging Processing System), which elevates the image quality with enhanced zoom, noise reduction, and edge sharpening.
AI-assisted adaptive image calibration
All models deliver an AI-optimized image. The AI-powered Adaptive Image Calibration (AAIC) learns with each recording and continuously adjusts the image quality.
6 Color palettes
Available in 6 color palettes: White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia.
One battery lasts the whole night
A powerful, replaceable battery (2 included) provides up to 6 hours of battery life for long sessions without interruption.
Robust and reliable in all conditions
With an IP67 certification, the thermal imager, with its rugged lightweight magnesium alloy housing, is dust and water-resistant, functioning flawlessly in harsh weather conditions such as rain or fog. Thanks to temperature-stabilized technology, the device works reliably at temperatures from -30 °C to +55 °C.
Fast and stable livestream via WiFi
WiFi connectivity enables fast and stable connections with up to four devices at once.
Recording and storage function for photos and videos
With 32 GB of internal storage, there is plenty of space for capturing images and videos.
FEATURES
- Compact and lightweight all-rounder – ideal for woodland, feeding grounds, and medium-range distances
- M52 0.75 thread
- Ultra-fine click value of 0.9 cm at 100 m
- 640×512, 12µm, <18mK NETD thermal image sensor
- 50 mm f1.0 lens with 2600 m detection range
- Intuitive and silent operation, also via Bluetooth remote control
- Shockproof up to 6000 Joules
- Field of view (H: 22 m; V: 17.5 m) for optimal overview
- PIPS 2.0 firmware: enhanced zoom, noise reduction, edge sharpening
- AI-optimized image
- 6 color palettes: White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia
- Water and dustproof according to IP67
- Metal housing and lens cap
- Replaceable battery, up to 6 hours of battery life per battery
- Hotspot tracking for accurate detection of heat sources
- Recording and storage function for photos and videos
- 32 GB internal storage
- Fast and stable livestream via WiFi
- Stadiametric rangefinder
- Dimensions/Weight: 139 mm × 102 mm × 73 mm / 535 g
PACKAGE CONTENT
- 1× PIXFRA Taurus T635 Thermal Clip-On
- 2× 18650 batteries
- 1× Charging station for 2× 18650 batteries
- 1× Bluetooth remote control with magnetic holder
- 1× USB-C cable
- 1× Carry strap
- 5× Heat pads
- 1× Mounting key
- User manual
Specifications PIXFRA Taurus T635 Thermal Clip-On
| Automatic shut-off | Yes |
| Batteries included | Yes |
| Batteries required | Yes |
| Frame rate | 50 Hz |
| Housing material | Metal |
| Compatible with Pulsar remote | No |
| Detection range (m) | 1800 m |
| Objective lens diameter (mm) | 35 |
| Diopter compensation | No |
| Field of view (degrees) | 12.4° |
| Field of view (m/100m) min. | 22 m |
| Field of view at 1000 m | 220 m |
| Head-mountable | No |
| Impact resistance / rifle (J) | 6000 J |
| Interfaces | USB Type-C |
| Internal memory | 32 GB |
| Calibration | Automatic, Manual |
| Color | Black |
| Color palette | Yes |
| Battery life (h) | 6 hours |
| NETD (< mK) | 18 |
| Net weight (without accessories) (g) | 500 g |
| Eyepieces for glasses wearers | No |
| Product family [Night Vision] | Taurus |
| Rangefinder | No |
| Resolution | 1920 x 1080 pixels |
| Display type | OLED |
| Close focus (m) | 3 m |
| Tripod thread | Yes |
| Stream Vision compatible | No |
| Max temperature range (°C) | 55°C |
| Min temperature range (°C) | -30°C |
| Total net weight (incl. accessories) (g) | 1570 g |
| Total width (mm) | 92 mm |
| Total height (mm) | 71 mm |
| Total length (mm) | 126 mm |
| Step zoom | 1x |
| Type | Lithium-ion |
| Type [Nightvision] | Monocular |
| Sensor type | VOx 640x512 / 12µm / NETD |
| Zoom up to | 27.6x |
| Zoom from | 1x |
| Power included | No |
| Waterproof | Yes |
| Waterproof protection level | IP67 |
| Display off function | Yes |
