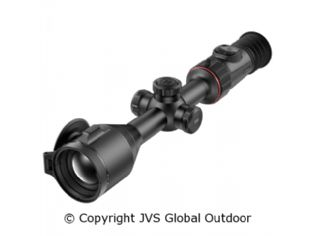

The ACE series is an infrared viewer for outdoor hunting. It is designed based on infrared thermal imaging principles and does not require any external light sources during the day or night, in all difficult weather conditions (such as rain, snow, fog and mist). It can be used without being bothered by bright light and can even detect targets behind obstacles (such as branches, grass and bushes). ACE series has a variety of battery-powered solutions with long working hours, and can be widely used for hunting, observation and positioning in low visibility conditions.
Main Features
- 15mK NETD
- Ocular zoom
- Built-in LRF (ACE H50R / ACE S60R)
- Ballistic calculation (ACE H50R / ACE S60R)
- Recoiling activated video function
- Gallery function
- Dual power system
- Built-in memory, supports photographing, video recording
- Built-in Wi-Fi module, supports APP connection
- Built-in compass and motion sensor
- PIP function (Picture in Picture)
- Pixel defect correction
- Convenient operating interface
| Model | ACE H50 |
|---|
| Thermal Sensor | 640×512,12μm |
| NETD,mK | ≤15 |
| Frame rate,Hz | 60 |
| Objective lens,mm | 50 F0.9 |
| Field of view,° | 8.8x7.0 |
| Magnification,× | 3~24 |
| Detective range,m | 2600 |
| Exit relief,mm | 50 |
| Exit pupil diameter,mm | 8 |
| Diopter,D | -5~+5 |
| Display | AMOLED Round 2560×2560 |
| Battery Type | Built-in 4000mAh & 18650 battery |
| Max.operation time,(t=22℃)h* | 7 |
| Safety Class for Laser | |
| Max.Rangerfinder distance,m | |
| MIC | Support |
| Memory capacity,GB | 64 |
| IP rating | IP67 |
| Operating temperature,℃ | -20 ~ +50 |
| Weight,g(with battery) | 1050 |
| Dimension,mm | 350x90x62 |
| *The actual operating time depends on the density of Wi-Fi use, photographing, video recording, etc. | |
