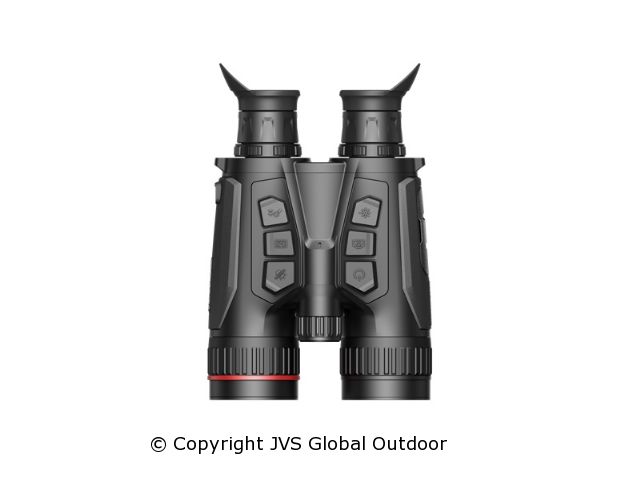

HIKMICRO Habrok Pro HQ50L Multi-Spectrum Binoculars
Inspiration in detail.
HIKMICRO Habrok Pro HQ50L multi-spectrum binoculars. The HQ50L is equipped with a 15 mK NETD, 640×512 thermal detector @ 50 mm thermal lens and an advanced 4K digital detector with 60 mm lens, which ensures perfect image quality and detail recognition in various weather and light conditions. Combined with a 1,000 m laser rangefinder and a replaceable IR emitter with a wavelength of 940nm, this all-in-one binocular can be used primarily for hunting in the forest and in the field, bird watching, animal search, rescue and marine scenarios.
Description
HIKMICRO Habrok Pro HQ50L multi-spectrum binoculars.
The HQ50L is equipped with a 15 mK NETD, 640 × 512 thermal detector @ 50 mm thermal lens and an advanced 4K digital detector with 60 mm lens, for perfect image quality and detail recognition in various weather and light conditions. Combined with a 1,000m Laser Rangefinder and a replaceable IR emitter with a wavelength of 940nm, this all-in-one binocular can be mainly applied to hunting in the forest and in the field, bird watching, animal search, rescue and marine scenarios.
The manufacturer:
HIKMICRO is one of the leading manufacturers of thermal imaging equipment and the company's goal is to make high-quality equipment available to professionals for the commercial market. HIKMICRO is a subsidiary of the world leader in security cameras Hikvision Group, established in 2001. The Hikvision Group has a turnover of 9.2 billion dollars and employs 42,000 people worldwide.
Main features
640 × 512 resolution @ 12 μm thermal detector
High sensitivity thermal module NETD < 15 mK (@ 25°C, F# = 1.0)
50mm, F1.0 lens with thermal detection range up to 2,600m
3,840×2,160 4K CMOS detector with ultra-high resolution
1,920×1,080 resolution 0.49-inch OLED screen
Built-in 850nm IR illuminator and Laser Rangefinder of 1,000m measuring distance
7 hours+ continuous use time with replaceable battery
975g lightweight, with a compact and ergonomic design
Technical Specifications
Thermal module
| Image sensor |
| Type | VOx uncooled focal plane |
| Resolution | 640 × 512 |
| Image rate | 50 Hz |
| Pixel interval | 12 μm |
| Response waveband | 8 μm to 14 μm |
| NETD | Less than 15 mK (@25°C), F#=1.0 |
| Lens (focal length) | 50 mm, F1.0 |
| Focus mode | Focus ring |
| Detection range | 2,600 m |
| Focus distance | 5 m |
| Magnification | 4.3x to 25.8x (6x) |
| Field of View (H × V), Degrees/m @100 m | 8.8° × 5.3° / 15.4 m × 9.3 m |
| Optical Module |
| Image Sensor | 1.88” Progressive Scan CMOS |
| Resolution | 3.840 × 2.160 |
| Focal Length | 60 mm, F2.2 |
| Working Distance | 3 m |
| Focus mode | Focus ring |
| Magnification | 5.5x to 22.0x (4x) |
| Field of view (H × V), Degrees/m @100 m | 7.3°× 4.1° / 12.6 m × 7.2 m |
| Smart IR | Yes |
| IR illumination wavelength | 940nm |
| Night Field of View | 400 m |
| Replaceable IR Illuminator | Yes |
| Image Display |
| Display | 0.49 inch, OLED, 1920×1080 |
| Palettes | Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 8mm |
| Eye Relief | 15mm |
| Diopter (Range) | -5D to +3D |
| Brightness Adjustment | Yes |
| Tone Adjustment | Koud, warm |
| Adjust contrast | Yes |
| Zoom Pro | Yes |
| Picture Pro 2.0 | Yes |
| System |
| Record video | Yes |
| Capture snapshot | Yes |
| Audio recording | Yes |
| Standby mode | Yes |
| Storage | Built-in EMMC (64 GB) |
| PIP | Yes |
| Hotspot | Yes |
| Hot Track | Yes |
| Digital magnetic compass | Yes |
| GPS | Yes |
| Local Album | Yes |
| Power |
| Battery Type | Replaceable and rechargeable Li-ion battery |
| Battery Life | ≥7h (-20°C, with hotspot off, LRF and Zoom Pro on) |
| Type-C Power | 5V DC, 2A; Supports external power supply |
| General |
| Protection level | IP67 |
| Dimension | 142.9mm × 79.7mm × 230.5mm |
| Weight | 975g with battery |
| Working temperature | -30℃ to +55℃ |
| Interpupillary adjustment range | 60mm up to 74 mm |
| Mounting adapter | 1/4"-20-UNC |
| Laser distance meter |
| Laser safety class | Class 1 |
| Wavelength | 905 nm |
| Measurement range | 1,000 m |
| Measurement accuracy | ±1 m |
| Measuring range | 10 m |
| Included in the box |
| Product | HIKMICRO Habrok Pro HQ50L Multi-spectrum Binoculars |
| Neck strap | Yes |
| Lens cloth | Yes |
| Quick start guide | Yes |
| Binocular harness | Yes |
| Power cable | Yes |
| Battery (x2) | Yes |
| Battery charger | Yes |
