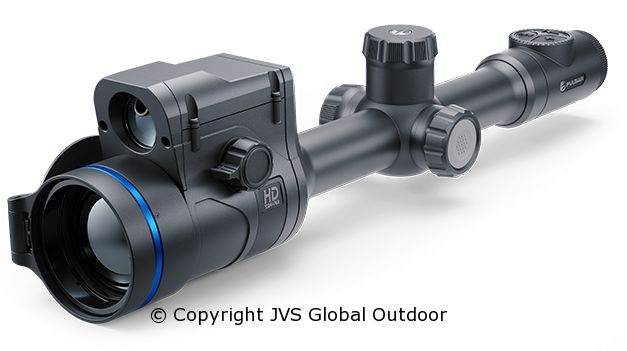

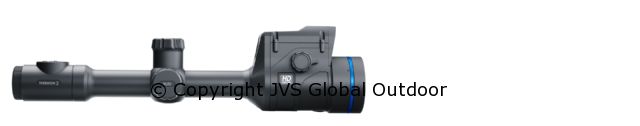

Pulsar Thermion 2 LRF XL50
Integrated ballistic calculator for long-range shooting

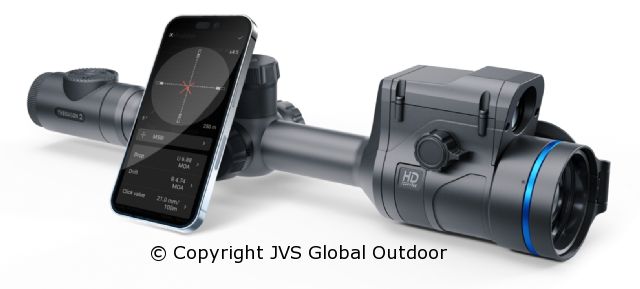

Thermion 2 LRF ensures accurate shooting at any distance. The built-in laser rangefinder provides the hunter with an exact sense of distance to the target while the sophisticated internal ballistics algorithm calculates the suggested POA for accurate long-range shooting. Simply create a ballistic profile for your shooting equipment, upload it to the Thermion's memory with the Stream Vision Ballistics App, and turn your Thermion 2 LRF XL50 into a highly accurate and efficient long-range aiming tool.
Variable 1.75-14x magnification (x8 digital zoom) provides improved focus and better overall object recognition at significant distances. The HD-sensor allows to maintain a high level of image detail across the whole magnification range. The zoom changes either gradually in 2x step or continuously for a customized FOV / magnification ratio for each specific situation.
Revolutionary HD, clear, thermal image

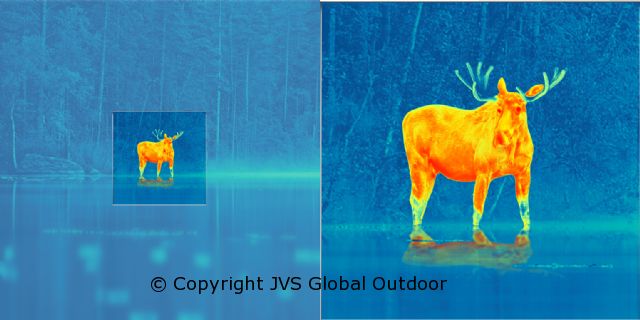

Thermion 2 LRF XL50 offers the highest level of thermal imaging. The image generated with the new 1024x768- pixel thermal sensor features high definition and rich detail ideal for uncompromised trophy identification. The silhouettes, anatomy & behavioural peculiarities of the animal are clearly visible and easily distinguished.
Precise laser range finding
Understanding the target distance is an essential factor in making the right decisions. The compact laser rangefinder with a range of up to 800 metres is seamlessly integrated into a slim design riflescope, the receiver and emitter are within clearance limits of a single optical channel.
Wide field of view for easy scanning
Thermion 2 LRF XL50 offers a wide field of view for easy scanning and spotting. Even at high zoom levels, the large-format sensor allows for a well-balanced FOV / magnification ratio.
For a clear and detailed image field of view, the Thermion's 2 LRF XL50 germanium F50/1.0 objective lens truly expands the advantages of an HD thermal sensor. The use of aspherical lenses and diffractive optical elements maintains a high aperture ratio with the capability of sharp and precise image projection across the entire sensor area.
Objective lens with internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy either left- or right-handed.
The pixel-to-pixel image transfer from the sensor to the display makes the image as sharp as possible. Adjustable sensor sensitivity amplification combined with new filtration algorithms offers the hunter great opportunities for observation in diverse weather and temperature conditions. The amplification setting helps to define the animal’s trophy features and ensures clear rendering of objects and background in the field of view.
The Pulsar BT wireless Bluetooth remote control completely duplicates the regular buttons. The remote control features excellent ergonomics − the buttons activate the most used functions, while rotating or pressing the encoder operates fine adjustment and menu navigation. The design, size and positioning of the buttons and encoder are customized for use with both bare hands and gloved hands. It takes minimum movement for a hunter to control the riflescope enabling them to maintain maximum concentration on the hunting process with the remote control placed in any convenient position on the fore-end or rifle butt.
Main
Sensor
1024x768 @ 12 µm (NETD <35 mK)
Objective lens
F50 / 1.0
Magnification, x
1.75 – 14
Field of view (HxV), degrees / m@100m
14x10.5 / 24.6x18.4
Detection range, m
2300
Sensor
Type
uncooled
Resolution, pixels
1024x768
Pixel pitch, µm
12
NETD, mK
35
Frame rate, Hz
50
Optics
Objective lens
F50 / 1.0
Magnification, x
1.75 – 14
Field of view (HxV), degrees / m @ 100 m
14x10.5 / 24.6x18.4
Eye relief, mm
50
Display
Type
AMOLED
Resolution, pixels
1024x768
Range Performance
Detection range, m
2300
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014
1
Wavelength, nm
905
Max. measuring range, m
800
Measurement accuracy, m
± 1
Reticle
Click value, H/V, mm at 100 m
24 – 1.75х, 12 – 3.5х, 6 – 7х, 3 – 14х
Click range, H/V, mm at 100 m
4800 / 4800
Number of preloaded reticles
10
Video Recorder
Video / photo resolution, pixel
1024x768
Video / photo format
.mp4 / .jpg
Built-in memory, GB
64
Wi-Fi
Wireless Protocol
Wi-Fi
Wireless Standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz
2.4 / 5
Bluetooth
Wireless Protocol
BLE 4.2
Wireless Standard
IEEE 802.15.1
Frequency, GHz
2.4
Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPÐ¥7 (waterproof)
Operating temperature range, °С
-25 – +50
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules
6000
Shock resistance on the smooth-bore rifles, caliber
12
Compatible mounts
Standard 30 mm rings
Supported Application
Stream Vision 2, Stream Vision Ballistics
Power Supply
Output voltage, V
3.0 – 4.2
Battery type
Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal)
Capacity, mAh
2000 (external) + 4900 (internal)
Operating time on battery pack (at t=22°C), h *
7
External power supply, V
5V, 9V (USB Type-C Power Delivery)
Weight & Size
Body material
Aluminum alloy
Dimensions, mm
426x78.5x94.5
Weight, kg
1.03
Trade Data
SKU (Model #)
76557
Status
production
