Infiray Mate MAH50R
COMING SOON

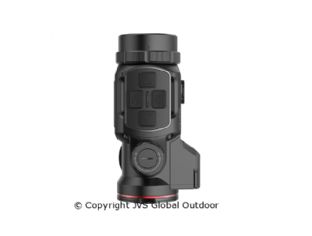

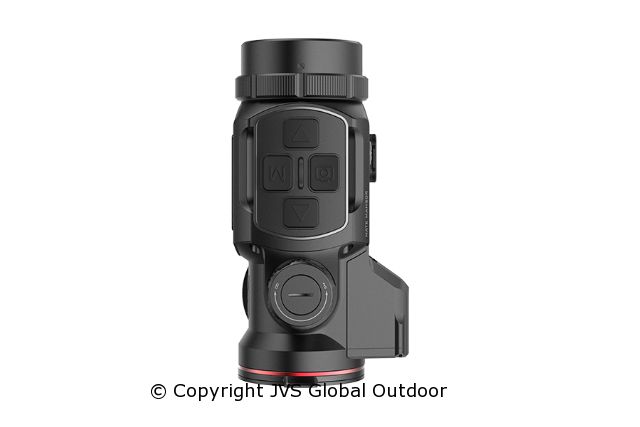

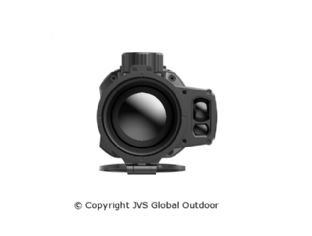

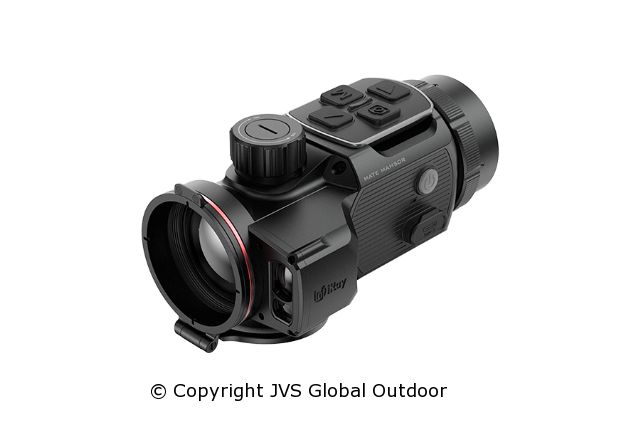

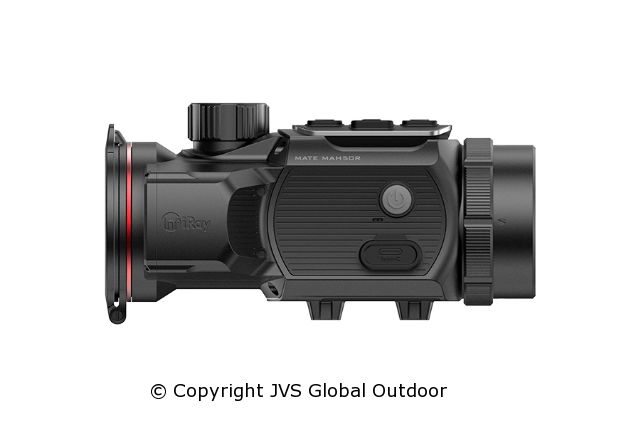

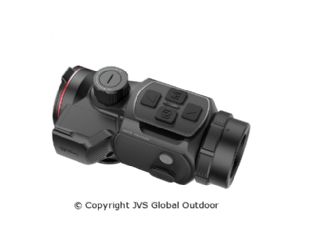

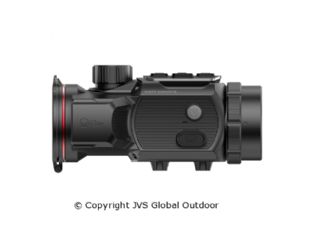

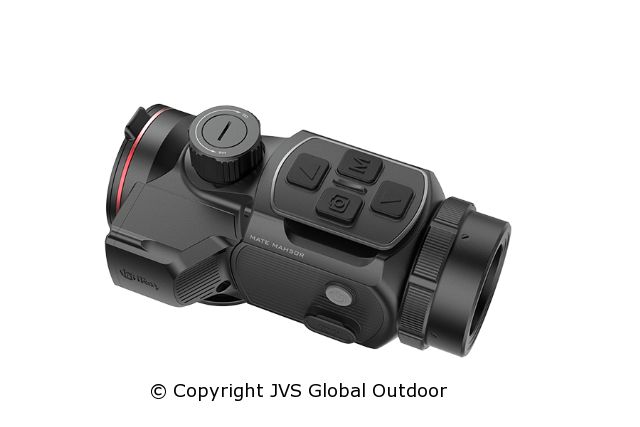

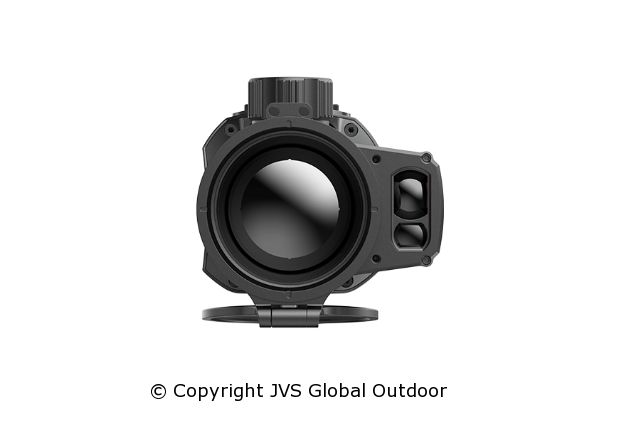

Thermal Imaging Attachment Mate series - MAH50R
Experience a technological transformation in traditional aiming with this one device. The New Mate continues this innovation with built-in LRF and ballistic calculation capabilities, greatly improving the hunting experience.
Ultra-clear thermal imaging
The new model is equipped with InfiRay's proprietary high-end thermal sensor (640*512 resolution, @12µm, NETD≤18mk), providing users with crystal-clear thermal images. It adapts to daytime binoculars with up to 10× magnification while maintaining excellent image detail.
Control distances with integrated LRF
Meet the innovative clip-on thermal product with an integrated Laser Range Finder (LRF) with a range of 1200 meters. It provides highly accurate distance measurement and dynamic display, allowing hunters to determine distances quickly and accurately.
Accurate navigation with ballistic calculation
Supports strategic and accurate ballistic calculations, ensuring every shot is fired accurately. Hunters can predict the trajectory of bullets or arrows more accurately, making them more likely to hit the target. It also helps in understanding the potential endpoint of the projectile, thus reducing the risk of accidents and other safety hazards.
Magnetic batteries
The device comes with additional magnetic battery packs that are easy to carry and install, extending hunting time without worrying about running out of batteries.
Stability and accurate hunting
Made of rugged magnesium alloy and sturdy structural connections, the device is highly impact resistant. It exceptionally meets the high-precision standard of 'POI=1MOA', ensuring stability and precision in every hunting attempt.
Mate MAH50R |
Detector Specifications |
Type | Vox |
Resolution, pixel | 640x512 |
Pixel Size, μm | 12 |
NETD, mk | ≤18 |
Frame Rate, Hz | 50 |
Optical Specifications |
Objective Lens, mm | 50mm/F1.1 |
Field of View (H×V), ° | 8.8 × 7.0 |
Linear Field of View (HxV), m at 100m | 15.4 x 12.3 |
Built-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH*2 | Attachment: 1
Monocular: 1x/2X/4X |
Detection range, m (Target size: 1.7m×0.5m, P(n)=99%) | 2600 |
Display Specifications |
Type | AMOLED |
Resolution, pixels | 1024×768 |
Battery Power Supply |
Battery | Built-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH*2 |
Max. operating time (22℃),h | 4+5 |
External power supply | 5V (Type C) |
Physical Specifications |
Wi-Fi/APP | Support (InfiRay outdoor) |
Photo/video recorder | Support |
MIC | Support |
Memory capacity | 32GB |
IP rating | IP67 |
Operating temperature, ℃ | -20 ~ +50 |
Weight, g | 500g |
Dimension, mm | 147*75*73 |
Connections and Compatibilities |
Max. recoil power on rifled weapon (Eo), Joules | 6000 |
Recommended magnification of the day sight, x | G1/G2: 1×-5×
G3/G4: 6×-10× |
Click value@100m, cm | 1.6 |
Functions |
Laser rangefinder | Support, 1200m |
Ballistic calculation | Support |
Manual
