The thermal cameras of the Nocpix LUMI series are the latest additions to the Nocpix range. The new LUMI series is an updated and improved version of the IRIS series, distinguished by advanced technology and high-resolution imaging solutions. It provides unparalleled image accuracy and clarity, even in the most challenging conditions, giving users a highly detailed view.

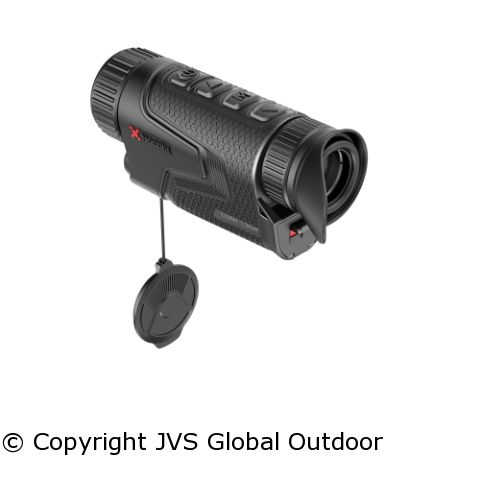

NOCPIX LUMI L35R (with Laser Rangefinder)
The thermal cameras of the Nocpix LUMI series are the latest additions to the Nocpix lineup and are equipped with InfiRay’s high-quality thermal imaging technology. The new LUMI series is an updated and improved version of the IRIS series, distinguished by advanced technology and high-resolution imaging solutions. It provides unparalleled image accuracy and clarity, even in the most challenging conditions, giving users a highly detailed view.
F0.9 Lens: Enhanced Light Absorption
The F0.9 lens transmits 20% more light than a standard F1.0 lens, making the images of the Nocpix LUMI series thermal cameras even brighter and clearer.
The Most Compact Thermal Monocular with LRF
Equipped with an integrated 800m laser rangefinder (LRF), it offers fast response and low latency, adding an extra layer of experience to your observations.
Reality+ Technology
The new Nocpix Lumi thermal camera is built with Reality+ technology. This technology eliminates “image noise,” enhances contrast, and accentuates details, producing a much sharper and clearer thermal image. Thanks to this technology, image quality is significantly improved.
Outstanding Image Quality
The 384×288 resolution provides a sharp and detailed image, making it easy to distinguish small details and features of an object. The small pixel size of 12 μm allows for greater image detail and accuracy, enabling even the smallest temperature differences to be captured and the tiniest objects to be clearly visible. With a thermal sensitivity of NETD ≤18mK, even the slightest temperature variations are clearly visible. This allows for precise tracking of subtle heat patterns, even in difficult conditions.
Lightweight and Compact
The thermal cameras of the LUMI series feature an ergonomic design, compact size, and lightweight construction, making them easy and convenient to carry.
Various Color Palettes
The Lumi series offers seven different color palettes to enhance the observation experience. There are also pure monochrome red and green modes, which are particularly eye-friendly and help reduce eye fatigue.
HD 1024×768 AMOLED Display
The display, with a resolution of 1024×768 pixels, provides a sharp and detailed image, making it easy to distinguish small details and features of an object. This is particularly useful when precise assessment of a situation or the analysis of small objects is required. AMOLED technology is known for its excellent color reproduction, delivering high contrast and rich colors, making more details visible and the image more visually appealing.
Replaceable Battery
The LUMI operates with a replaceable 18650 battery and features a reverse polarity function, allowing for both positive and negative power sources. This feature is especially useful when changing the battery at night.
More Amazing Advantages
Lumi is a versatile product with an IP67 dustproof rating, weighs less than 400 grams, and supports photo, video, and microphone functions with 32 GB of storage. Lumi is truly mini, yet extremely powerful.
Detection Range
The 35mm lens allows for effective object detection and analysis, providing detailed and clear information about observed objects. Detection range up to 1800 meters.
10mm Exit Pupil Distance
The use of an eyepiece with a 10mm exit pupil ensures the best field of view and visibility in any situation and from any angle.
| Detection Range | Up to 1800 m |
| Resolution | 384×288 |
| NETD | ≤18mK |
| Frame Rate | 50 Hz |
| Pixel Pitch | 12 µm |
| Objective Lens Size (mm) | 35 mm F0.9 |
| Field of View | 7.5°x5.7° |
| Magnification | 4~16 |
| Eye Relief | 25 mm |
| Exit Pupil | 10 mm |
| Diopter | -5 ~ +5 |
| Screen Type | AMOLED |
| Screen Resolution | 1024×768 |
| Picture | YES |
| Recording | YES, with sound |
| Internal Memory Size | 32GB |
| Mobile Application | YES, the device can be controlled via a mobile app |
| WIFI | YES |
| Battery Type | Replaceable 18650 Battery |
| Battery Life | Up to 4.5 h |
| Laser Rangefinder | YES |
| Measuring Range | Up to 800 m |
| Operating Temperature | -20℃—+50℃ |
| IP Protection Level | IP67 |
| Weight | 375 g |
| Measurements (mm) | 147x47x74 |
