Binocular thermal imaging device for precise game observation at long distances, day and night

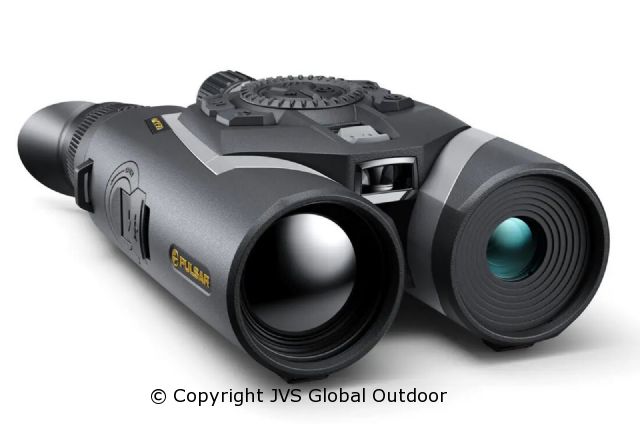

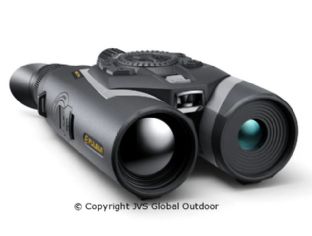

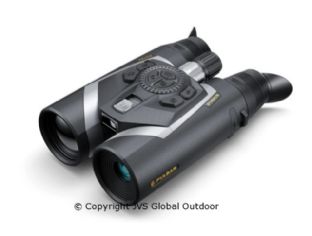

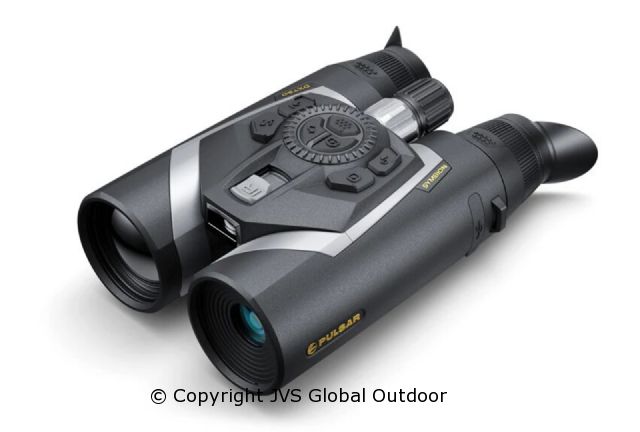

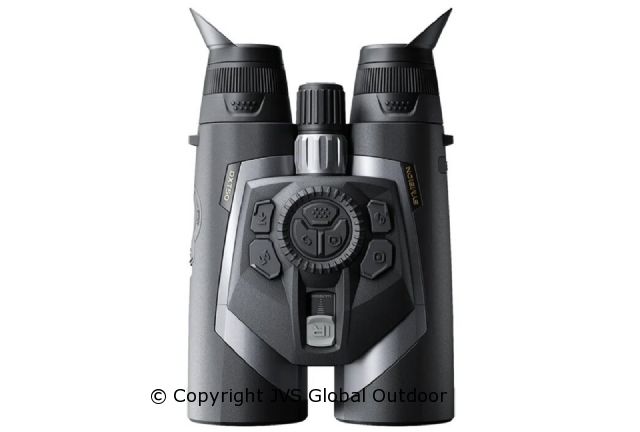

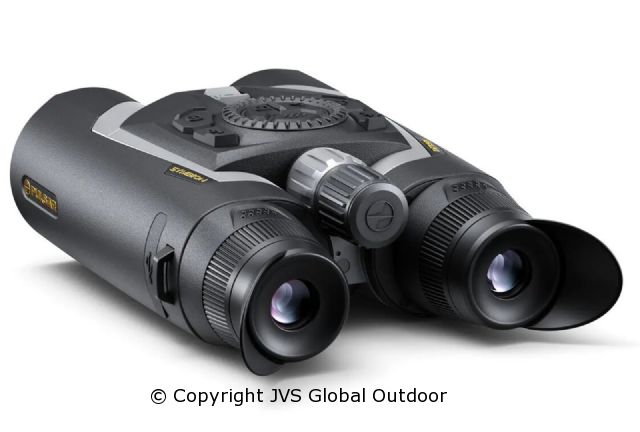

The Pulsar SYMBION LRF DXT50 is a binocular thermal imaging camera with integrated 4K digital day and night vision. This multispectral optic is designed for professional users who demand the highest level of precision, reliability, and image quality under all conditions. Featuring an ultra-sensitive 1280×1024 thermal sensor, powerful digital night vision, image stabilization, and a precise laser rangefinder up to 1500 meters, this unit delivers razor-sharp detection, identification, and situational awareness — both day and night.
Equipped with features like picture-in-picture mode, dual HD AMOLED displays, 64 GB of internal storage, Stream Vision 2 Wi-Fi connectivity, and a rugged IP67-rated magnesium housing, the DXT50 is perfectly suited for professional use in hunting, wildlife management, security, or search and rescue operations.
Key Features
- Multispectral imaging technology (thermal + 4K digital) – Detect heat and visually identify targets with one system in any lighting condition.
- Ultra-high thermal resolution (1280×1024 @ 12μm, sNETD <20 mK) – Reveals subtle temperature differences, even in fog, rain, or cold mornings.
- 4K digital day and night vision sensor with IR illuminator (850 nm) – Pin-sharp identification of wildlife and objects, even in total darkness.
- Picture-in-picture mode (PiP) – Combine thermal and digital views in one window for maximum situational awareness.
- Laser rangefinder up to 1500 meters (±1 m accuracy) – Fast distance measurement in single-shot or continuous scan mode.
- Image stabilization and ergonomic binocular design – Comfortable for extended use, reduces eye fatigue and vibrations.
- Wide field of view of 17.5° (307 meters at 100 meters) – Ideal for scanning large areas or forest edges.
- Dual HD AMOLED displays (1920×1080) – Smooth, high-contrast, color-accurate images, even in cold weather.
- 9 color palettes – Tailor the view to your environment or preference, including White Hot, Red Hot, and Rainbow.
- 64 GB internal memory + Stream Vision 2 Wi-Fi – Record footage, connect to a smartphone, update firmware, and back up data to the cloud.
Included in the Box
- Symbion LRF DXT50
- Integrated IR illuminator
- Rechargeable battery + charger
- USB-C cable
- Carrying case
- Neck strap
- Cleaning cloth
- User manual
Main Specifications Pulsar SYMBION LRF DXT50
| Model | SYMBION LRF DXT50 |
| Thermal resolution & pitch | 1280×1024 @ 12μm |
| Sensor type | VOx uncooled microbolometer |
| sNETD (system NETD) | < 20 mK |
| Digital resolution | 3840×2160 (4K CMOS) |
| Thermal lens | 50 mm F/1.0 (germanium) |
| Thermal detection range | Up to 2300 meters |
| Laser rangefinder | Yes, up to 1500 meters (±1 m) |
| Magnification | 2× to 16× (thermal) |
| Field of view @ 100 m | 307 m (17.5°) |
| Interpupillary distance | 62 – 74 mm |
| Eye relief | 13 mm |
| Display count | 2 × HD AMOLED |
| Display resolution | 1920×1080 |
| Image stabilization | Yes (switchable) |
| Picture-in-picture mode | Yes |
| Color palettes | 9 (e.g. White Hot, Red Hot, Rainbow) |
| Video recording | Yes, with audio (.mp4/.jpg) |
| Internal memory | 64 GB |
| Connectivity | Wi-Fi (2.4 / 5 GHz), USB-C |
| App support | Stream Vision 2 & Ballistics |
| Power supply | APS3 battery or compatible, approx. 4 hours |
| Water resistance | IP67 |
| Housing material | Magnesium alloy |
| Weight | Approx. 1000–1200 g |
| Dimensions (L×W×H) | 207 × 132 × 73 mm |
| Operating temperature | −25 °C to +50 °C |
Availability and Expert Advice
The Pulsar SYMBION LRF DXT50 is available for testing by appointment at JVS-Outdoor. Our experienced hunters are happy to provide personal advice and a live demonstration. Contact us for more information or to schedule an appointment.
Additional Manufacturer Details
- Pulsar Image Boost software for thermal image processing
- Multiple user profiles
- Tactile 3-position switch
- Automatic standby mode
- Tripod compatible (1/4” + ARCA-SWISS)
- CE-compliant, shockproof and vibration-resistant
- Supports tethered use via app
Notice:
Products supplied by JVS Global Outdoor may not be resold to sanctioned parties and/or countries. Export of devices with electronic image enhancement is prohibited outside the EU.
