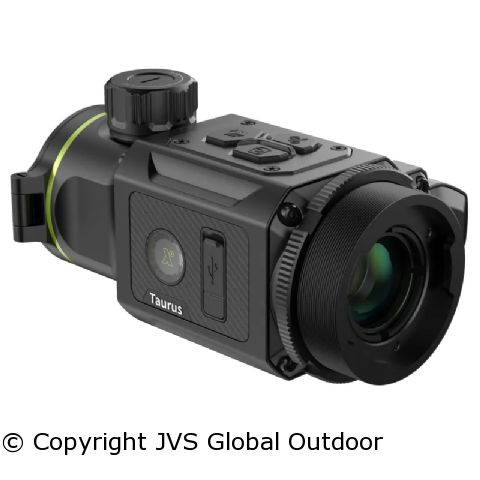

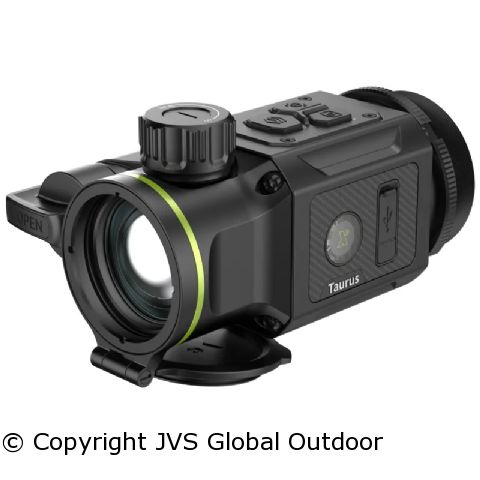

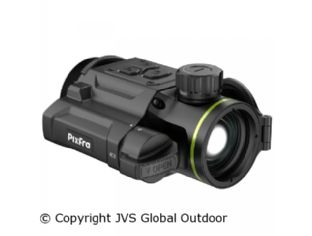

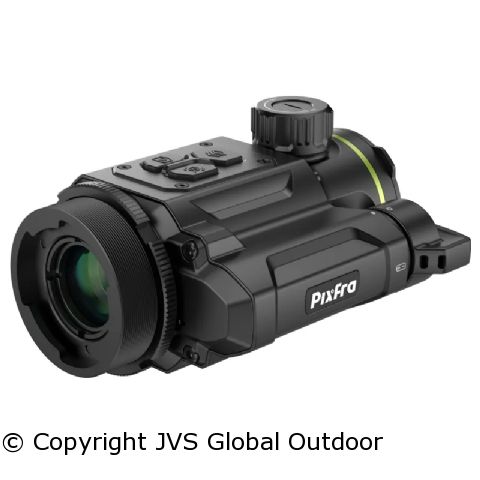

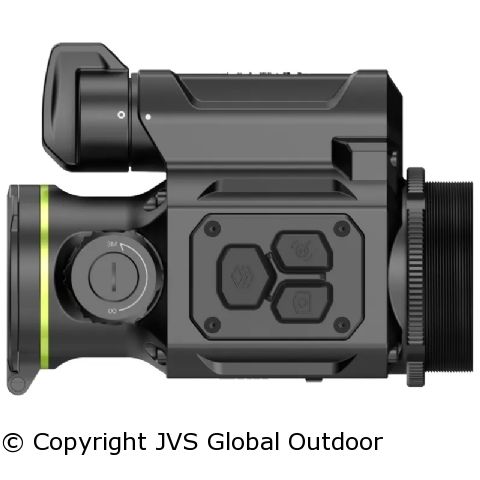

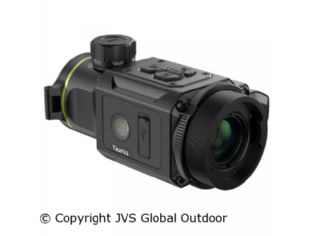

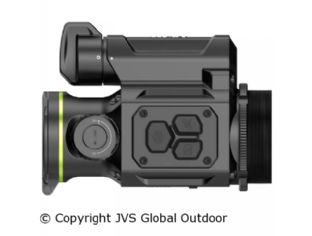

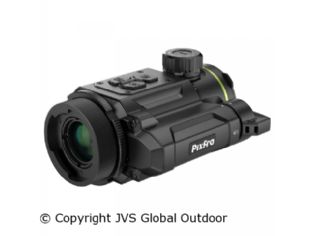

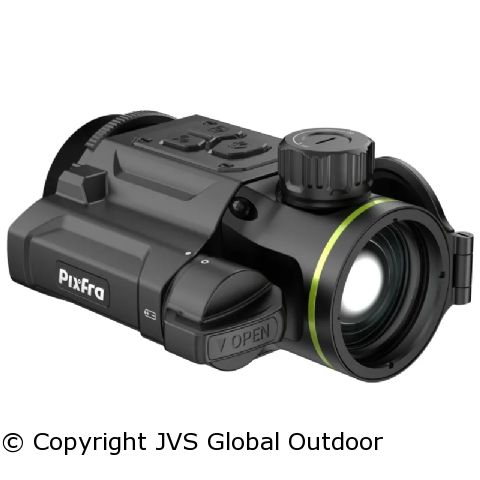

Product Information "PIXFRA Taurus T435 Thermal Imaging Add-on Scope"
Compact and powerful add-on scope
The PIXFRA Taurus T435 combines advanced technology with a compact design. The extremely sensitive VOx 384×288, 12µm, <18mK NETD sensor, the f1.0 35-mm lens, and the large 1920 × 1080 OLED display provide reliable detection and a clear thermal image up to 1800 m. Despite its powerful components, the Taurus remains compact and lightweight.
High repeatability accuracy
Thanks to the advanced Sub-Pixel Zeroing technology with an ultra-fine click value of 0.9 cm at 100 m, the point of impact remains consistent after every shot.
Large detection range
With a field of view of 13.7 m (at 100 m) and a large detection range of 1800 m, the PIXFRA Taurus T435 is the perfect all-rounder for medium-range distances.
Modern firmware for sharp images
The thermal imager is equipped with the latest PIPS 2.0 firmware (Pixfra Imaging Processing System), which elevates image quality with improved zoom, noise reduction, and edge sharpening.
AI-supported adaptive image calibration
All models deliver an AI-optimized image. The AI-supported image calibration AAIC (AI-powered Adaptive Image Calibration) learns with every shot and continuously adjusts the image quality.
6 Color palettes
Available in 6 color palettes: White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia.
One battery lasts all night
A powerful, replaceable battery (2 included) provides up to 7.5 hours of battery life, for long sessions without interruption.
Robust and reliable in all conditions
With an IP67 certification, the thermal imager, with its rugged lightweight magnesium alloy housing, is dust and waterproof, and functions flawlessly in heavy weather conditions like rain or fog. Thanks to temperature-stabilized technology, the device works reliably at temperatures from -30 °C to +55 °C.
Fast and stable livestream via WiFi
WiFi connectivity enables a fast and stable connection with up to four devices simultaneously.
Recording and storage function for photos and videos
With 32 GB of internal storage, there is ample space for capturing images and videos.
FEATURES
- Compact and lightweight – ideal for medium-range distances
- M52 0.75 thread
- Ultra-fine click value of 0.9 cm at 100 m
- 384×288, 12µm, <18mK NETD thermal image sensor
- 35 mm f1.0 lens with 1800 m detection range
- Intuitive and noiseless operation, also via Bluetooth remote control
- Shock-resistant up to 6000 joules
- Field of view (H: 13.7 m; V: 10.3 m) for detailed observation
- PIPS 2.0 Firmware: improved zoom, noise reduction, edge sharpening
- AI-supported image calibration
- 6 Color palettes: White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia
- Waterproof and dustproof according to IP67
- Metal housing and lens protection cap
- Replaceable battery, up to 7.5 hours battery life per battery
- Hotspot tracking for accurate detection of heat sources
- Recording and storage function for photos and videos
- 32 GB internal storage
- Fast and stable livestream via WiFi
- Stadiametric rangefinder
- Dimensions/Weight: 126 mm × 92 mm × 71 mm / 500 g
PACKAGE CONTENTS
- 1× PIXFRA Taurus T435 Thermal Imaging Add-on Scope
- 2× 18650 battery
- 1× Charging station for 2× 18650 batteries
- 1× Remote control with magnetic holder
- 1× USB-C cable
- 1× Carrying strap
- 5× Heat pads
- 1× Mounting key
- Instruction manual
Specifications PIXFRA Taurus T435 Thermal Imaging Add-on Scope
| Automatic shutdown: | Yes |
| Batteries included: | Yes |
| Batteries required: | Yes |
| Frame rate: | 50 Hz |
| Housing material: | Metal |
| Compatible with Pulsar remote control: | No |
| Detection range (m): | 1800 |
| Objective lens diameter (mm): | 35 |
| Diopter compensation: | No |
| Field of view (degrees): | 7.8 |
| Field of view (m/100m) min.: | 13.7 |
| Field of view at 1000 m distance 7) (m): | 137 |
| Head mountable: | No |
| Impact resistance / rifle (J): | 6000 |
| Interfaces: | USB Type-C |
| Internal memory: | 32 GB |
| Calibration: | Automatic , Manual |
| Color: | Black |
| Color palette: | Yes |
| Battery life (h): | 7.5 |
| NETD (< mK): | 18 |
| Net weight (without accessories) (g): | 540 |
| Eyepiece for glasses wearers: | No |
| Product family [Night vision]: | Taurus |
| Rangefinder: | No |
| Resolution: | 1920 x 1080 pixels |
| Screen type: | OLED |
| Close focus (m): | 3 |
| Tripod thread: | Yes |
| Stream Vision compatible: | No |
| Max. temperature range (°C): | 55 |
| Min. temperature range (°C): | -30 |
| Total net weight (including accessories) (g): | 1590 |
| Total width (mm): | 92 |
| Total height (mm): | 71 |
| Total length (mm): | 126 |
| Step zoom: | 1x |
| Type: | Lithium-ion |
| Type [Night vision]: | Monocular |
| Sensor type: | VOx 384x288 / 12µm / NETD |
| Zoom to: | 1 |
| Zoom from: | 1 |
| Power included: | No |
| Waterproof 8): | Yes |
| Waterproof protection level: | IP67 |
| Display off function: | Yes |
