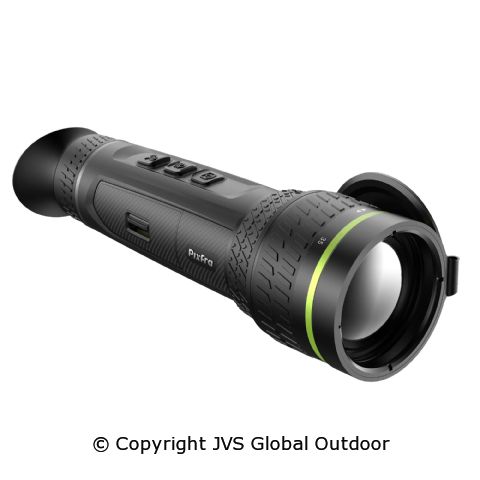

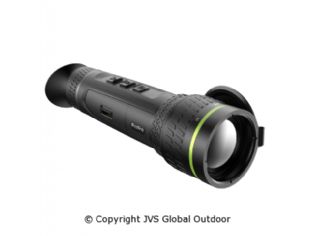

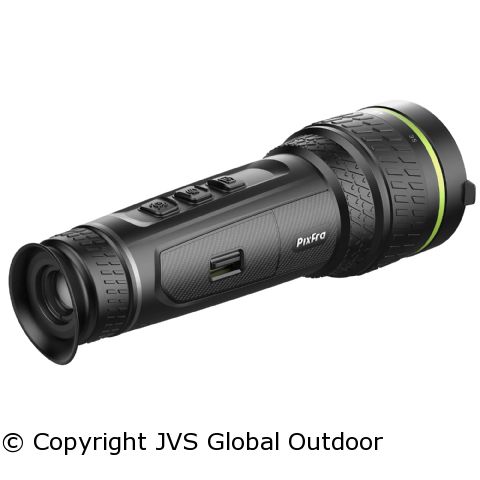

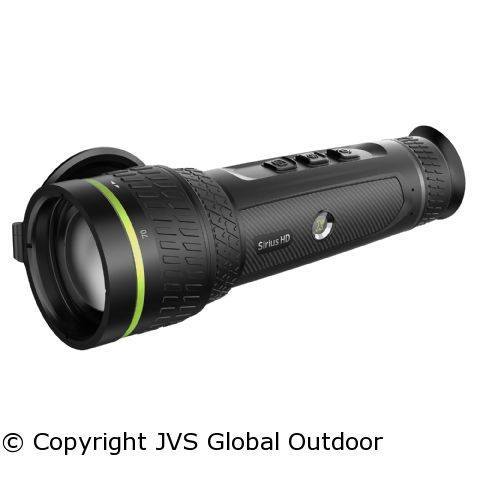

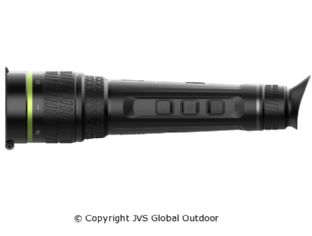

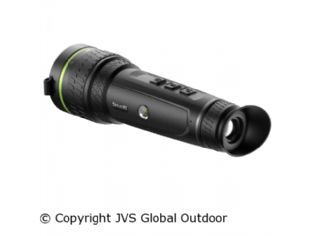

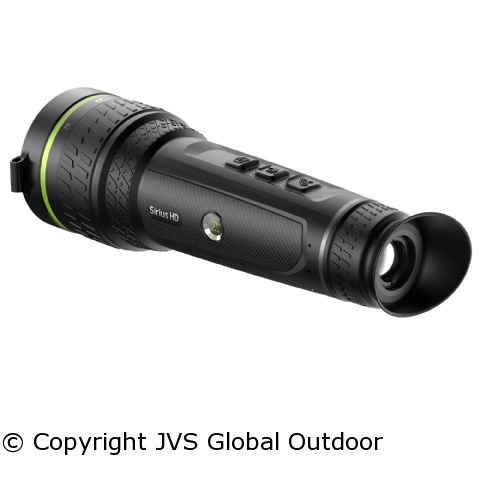

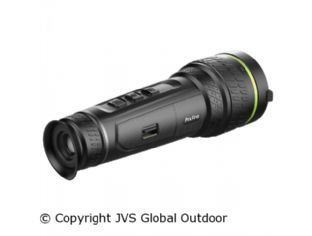

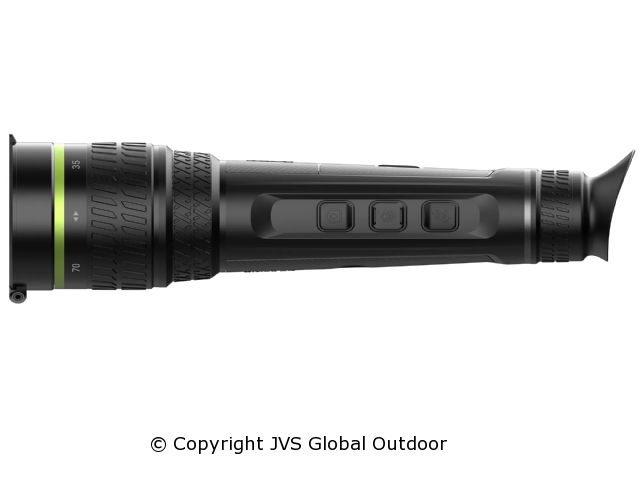

PIXFRA Sirius SA70D Thermal Imaging Device
The PIXFRA Sirius SA70D combines advanced technology with a compact design. The extremely sensitive VOx 1280×1024, 12µm, <18mK NETD sensor, the variable 50/70 mm f1.92/1.1 lens, and the large 1920 x 1080 OLED display provide reliable detection and a clear image of heat signatures up to 3600 m. Despite its powerful internal components, the SA70D remains compact, making it easy to fit into almost any bag.
Variable field of view and enormous detection range
The variable field of view from 43.9 m (at 100 m with a 50 mm aperture) to 21.9 m (at 70 mm aperture) and the enormous detection range from 1800 to 3600 m reveal many details, even at medium to long distances, making the PIXFRA Sirius SA70D the ultimate all-rounder for high-stand hunting, bear hunting, and observations in open terrain.
Modern firmware for razor-sharp images
The thermal imager is equipped with the latest PIPS 2.0 firmware (Pixfra Imaging Processing System), which enhances the image quality with features such as improved zoom, noise reduction, and edge sharpening.
AI-supported adaptive image calibration
All models in the Sirius series deliver an AI-optimized image. The AI-supported image calibration AAIC (AI-powered Adaptive Image Calibration) learns with every shot and continuously improves the image quality.
6 color palettes
Equipped with 6 color palettes: White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia.
Replaceable battery for uninterrupted use through the night
A powerful, replaceable battery offers up to 4.5 hours of use and allows for extended operations without interruption.
Robust and reliable in any environment
Thanks to its IP67 certification, the thermal imaging device, with its rugged, lightweight magnesium alloy housing, is dust- and waterproof, ensuring optimal function even in extreme weather conditions such as rain or fog. Additionally, the device works reliably even in extreme temperatures from -30 °C to +55 °C due to temperature-stabilized technology.
Recording and storage function for photos and videos
The large 64 GB internal memory provides ample storage space for image and video recordings.
Stable livestream via wifi on smartphones and tablets
Thanks to wifi connectivity, the device can quickly and stably connect to up to four devices simultaneously, within a range of 20 m.
Convenient accessories and easy transport
The thermal imager comes with a high-quality carrying case, shoulder strap, and wrist strap, making it easy to carry and safely transport the device during use.
FEATURES
- Robust and compact all-rounder – ideal for high-stand hunting, bear hunting, and medium to long-range observations
- 1280×1024, 12µm, <18mK NETD HD thermal image sensor
- Variable 50/70 mm f1.92/1.1 lens with 1800-3600 m detection range
- AI-optimized image
- Variable field of view depending on the aperture: H: 43.9 m; V: 35.1 m (50 mm) to H: 21.9 m; V: 17.6 m (70 mm)
- PIPS 2.0 firmware: improved zoom, noise reduction, edge sharpening
- 6 color palettes: White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia
- Hotspot tracking for accurate detection of heat sources
- Electronic compass for safe orientation
- Recording and storage function for photos and videos
- 64 GB internal memory
- Fast and stable livestream via wifi
- Waterproof and dustproof according to IP67
- Replaceable battery, up to 4.5 hours of battery life per battery
- Dimensions / Weight: 251.5 mm × 79.4 mm × 90.3 mm / 908 g
PACKAGE CONTENTS - PIXFRA Sirius SA70D thermal imager
- Protective case
- Shoulder strap
- Wrist strap
- USB-C cable
- Manual
Specifications PIXFRA Sirius SA70D
| Automatic shutdown: | Yes |
| Batteries included: | Yes |
| Batteries required: | Yes |
| Frame rate: | 50 Hz |
| Housing material: | Plastic |
| Housing armor: | Rubber/plastic |
| Compatible with Pulsar remote control: | No |
| Detection range (m): | 3600 |
| Objective lens diameter (mm): | 70 |
| Diopter compensation: | Yes |
| Field of view (degrees): | 25.4 |
| Field of view (m/100m) min.: | 43.9 |
| Field of view at 1000 m distance 7) (m): | 439 |
| Head mountable: | No |
| Interfaces: | USB Type-C |
| Internal memory: | 64 GB |
| Calibration: | Automatic , Manual |
| Color: | Black |
| Color palette: | Yes |
| Battery life (h): | 4.5 |
| NETD (< mK): | 18 |
| Net weight (without accessories) (g): | 908 |
| Eyepiece for glasses wearers: | No |
| Product family [Night vision]: | Sirius |
| Rangefinder: | No |
| Resolution: | 1920 x 1080 pixels |
| Screen type: | OLED |
| Close focus (m): | 5 |
| Tripod thread: | Yes |
| Stream Vision compatible: | No |
| Max. temperature range (°C): | 55 |
| Min. temperature range (°C): | -30 |
| Total width (mm): | 90 |
| Total height (mm): | 80 |
| Total length (mm): | 251 |
| Step zoom: | 1x, 2x, 4x, 8x |
| Type: | Lithium-ion |
| Type [Night vision]: | Monocular |
| Sensor type: | VOx 1280x1024 HD/ 12µm / NETD |
| Exit pupil: | 8 |
| Magnification up to: | 19.2 |
| Magnification from: | 1.21 |
| Power included: | No |
| Waterproof 8): | Yes |
| Waterproof protection level: | IP67 |
| Display off function: | Yes |
