Pulsar Axion XQ30 PRO
Highly sensitive thermal image sensor
To capture images, Axion XQ30 Pro uses a professional thermal imaging sensor with a resolution of 384x288 pixels and a thermal sensitivity of less than 25 mK. This ensures low noise levels and excellent image detail and high contrast.
Wide field of view for easy scanning
Axion XQ30 Pro has a 13.3° field of view which simplifies scanning and searching for hot objects. The wide field of view allows the observer to quickly see all prominent objects and focus on the most interesting ones, while at the same time keeping all scenes in view.
Compact, pocket-sized design

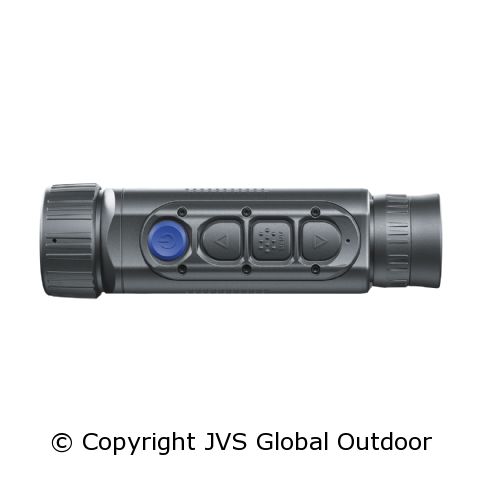

Axion XQ30 Pro has a compact, pocket-sized design that fits perfectly in your hand. It is an ideal option for hunting and tourism. The symmetrical design of the device in combination with the placement of the buttons on the top ensures comfort for left and right-handed use.
Rugged magnesium alloy housing
Axion XQ30 Pro is designed for constant, often heavy use. The magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging camera against shocks, falls, moisture, heat or cold. At the same time, a metal housing effectively dissipates heat from the electronics, minimizes image noise and increases the consistency of device operation during long-term observation.
Choice of 8 color palettes
A choice of 8 color palettes allows the user to observe their field of view more effectively, optimize the device for specific tasks and respond to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase the chance of recognition and identification. Red Monochrome, Sepia and Violet are best suited for long observations at night.
Choice of 8 color palettes
A choice of 8 color palettes allows the user to observe their field of view more effectively, optimize the device for specific tasks and respond to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase the chance of recognition and identification. Red Monochrome, Sepia and Violet are best suited for long observations at night.
Stream Vision 2 app support for iOS and Android
The built-in Wi-Fi module connects the device to Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of possibilities: wireless software updates of the device, real-time image transmission to the screen of the mobile device, remote control of digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.
Frost-resistant AMOLED display
Frost-resistant AMOLED display
A high-contrast AMOLED screen has improved color reproduction, energy saving and fast response, providing sharp and smooth images perceived even in frost.
Picture-in-picture function
Picture-in-picture displays a magnified image in the top 10% of the total field of view to accurately zoom in on an object of interest.
A quick-change rechargeable APS3 battery provides 7 hours of continuous operation of the thermal imaging device on a single charge. The battery is removed from a battery case in a few seconds and replaced with a new one. The battery is charged in a special device or in the device via a PC, household electricity network or power bank via USB. The same sources are used for the external power supply of a thermal imaging camera.
The device can be quickly charged with any charger that supports the power delivery protocol via a regular USB Type-C power cable
| Main |
|---|
| Sensor | 384x288 pix. @ 17 µm (NETD <25 mK) |
| Objective lens | F30/1.2 |
| Magnification, x | 2 - 8 (x4 zoom) |
| Magnification in monocular mode / attachment mode, x | - |
| Field of view (HxV), degrees / m@100m | 13.3x10 / 23.3Ñ…17.5 |
| Detection range, m | 850 |
| Sensor |
|---|
| Type | uncooled |
| Resolution, pixels | 384x288 |
| Pixel pitch, µm | 17 |
| NETD, mK | <25 |
| Frame rate, Hz | 50 |
| Optics |
|---|
| Objective lens | F30/1.2 |
| Magnification, x | 2 - 8 |
| Magnification in monocular mode / attachment mode, x | - |
| Field of view (HxV), degrees / m @ 100 m | 13.3 |
| Eye relief, mm | - |
| Recommended magnification of the day scope, x | - |
| Display |
|---|
| Type | AMOLED |
| Resolution, pixels | 640x400 |
| Range Performance |
|---|
| Detection range, m | 850 |
| Laser Rangefinder |
|---|
| Safety class for laser equipment according to IEC 60825-1:2014 | - |
| Wavelength, nm | - |
| Max. measuring range, m | - |
| Measurement accuracy, m | - |
| Video Recorder |
|---|
| Video / photo resolution, pixel | 528Ñ…400 |
| Video / photo format | .mp4 / .jpg |
| Built-in memory, GB | 16 |
| Wi-Fi |
|---|
| Wireless Protocol | Wi-Fi |
| Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency, GHz | 2.4 / 5 |
| Bluetooth |
|---|
| Wireless Protocol | - |
| Wireless Standard | - |
| Frequency, GHz | - |
| Environmental Characteristics |
|---|
| Degree of protection, IP code (IEC60529) | IPÐ¥7 (waterproof) |
| Operating temperature range, °С | -25 – +40 |
| Connections and Compatibilities |
|---|
| Compatible mounts | tripods |
| Mount, type | 1/4" |
| Remote control | - |
| Supported Application | Stream Vision 2 |
| Power Supply |
|---|
| Output voltage, V | 4.2-3.0 |
| Battery type | Dual Li-Ion power system: APS 3 changeable battery (3.2 A·h) |
| Capacity, mAh | 3200 |
| Operating time on battery pack (at t=22°C), h * | 8h |
| External power supply, V | 5V (USB) |
| Weight & Size |
|---|
| Body material | Magnesium alloy |
| Dimensions, mm | 144x41x69 |
| Weight, kg | 0.3 (with battery) |
| Trade Data |
|---|
| SKU (Model #) | 77506 |
| Status | - |
