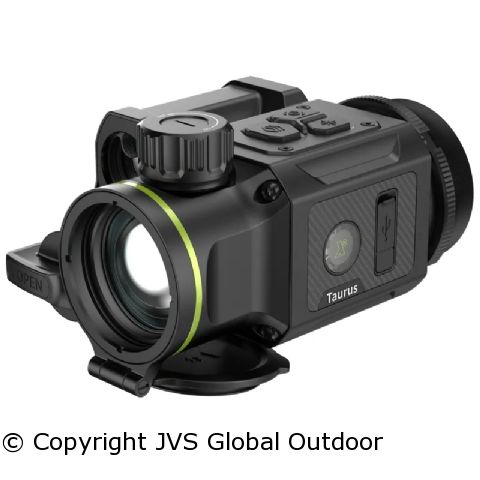

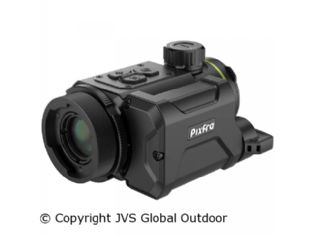

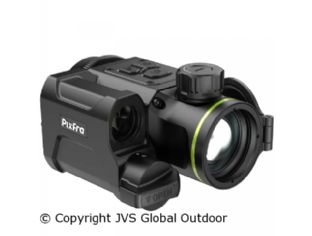

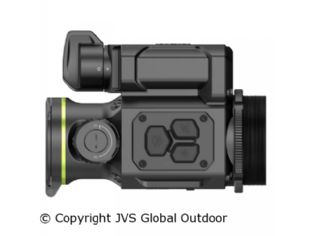

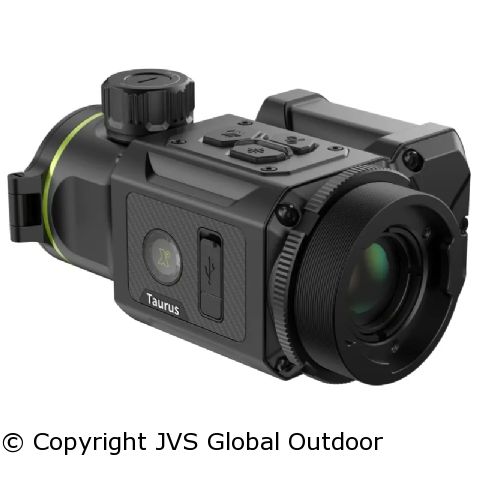

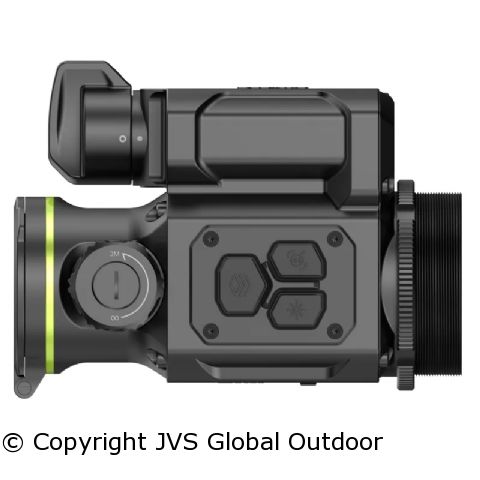

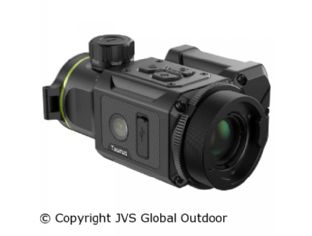

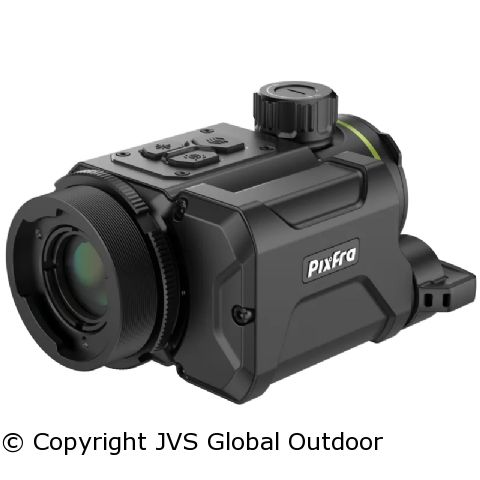

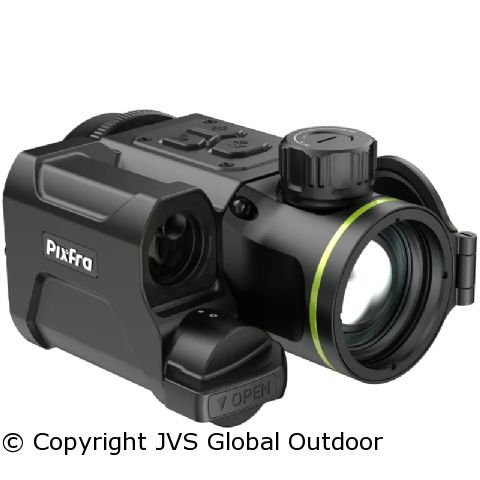

Product Information "PIXFRA Taurus T635 LRF Thermal Imaging Clip-On with Laser Rangefinder"
High Resolution, Compact and Powerful
The PIXFRA Taurus T635 LRF combines advanced technology with a compact design. The extremely sensitive and high-resolution VOx 640×512, 12µm, <18mK NETD sensor, the f1.0 35-mm lens, and the large 1920 × 1080 OLED display provide reliable detection and a clear thermal image up to 1800 m. Despite its powerful components, the Taurus remains compact and light.
Repeated High Precision
Thanks to the advanced Sub-Pixel Zeroing technology with an ultra-fine click value of 0.9 cm at 100 m, the impact remains consistent after each shot.
Integrated Precise Laser Rangefinder
The integrated laser rangefinder measures distances up to 1000 m with high accuracy and is completely invisible to animals.
Wide Field of View with High Resolution
The wide field of view of 22 m (at 100 m), the large detection range of 1800 m, and the high sensor resolution make the PIXFRA Taurus T635 LRF the perfect all-rounder for forest hunting, stalking, and mid-range observations.
Modern Firmware for Sharp Images
The thermal imager is equipped with the latest PIPS 2.0 firmware (Pixfra Imaging Processing System), which enhances image quality with improved zoom, noise reduction, and edge enhancement.
AI-Supported, Adaptive Image Calibration
All models deliver AI-optimized imagery. The AI-supported image calibration AAIC (AI-powered Adaptive Image Calibration) learns with each shot and continuously adjusts the image quality.
6 Color Palettes
Available in 6 color palettes: White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia.
One Battery for the Whole Night
A powerful, interchangeable battery (2 included) offers up to 6 hours of battery life, ensuring long sessions without interruption.
Robust and Reliable in All Conditions
With an IP67 certification, the thermal imager, with its rugged magnesium alloy housing, is dust- and waterproof, and functions flawlessly in harsh weather conditions such as rain or fog. Thanks to temperature-stabilized technology, the device works reliably at temperatures ranging from -30 °C to +55 °C.
Stable Livestream via WiFi on Smartphone and Tablet
WiFi connectivity allows for quick and stable connections with up to four devices simultaneously.
Recording and Storage Function for Photos and Videos
With 32 GB of internal storage, there is plenty of room to capture images and videos.
FEATURES
- Compact and lightweight all-rounder – ideal for forests, feeding grounds, and mid-range distances
- Integrated, precise, and invisible laser rangefinder (up to 1000 m)
- M52 0.75 thread
- Ultra-fine click value of 0.9 cm at 100 m
- 640×512, 12µm, <18mK NETD thermal image sensor
- 35 mm f1.0 lens with 1800 m detection range
- Intuitive and silent operation, also via Bluetooth remote control
- Shockproof up to 6000 joules
- Field of view (H: 22 m; V: 17.5 m) for optimal overview
- PIPS 2.0 firmware: improved zoom, noise reduction, edge enhancement
- AI-optimized image
- 6 color palettes: White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia
- Water- and dustproof according to IP67
- Metal housing and lens cap
- Interchangeable battery, up to 6 hours of battery life per battery
- Hotspot tracking for accurate detection of heat sources
- Recording and storage function for photos and videos
- 32 GB internal storage
- Fast and stable livestream via WiFi
- Stadiametric rangefinder
- Dimensions/Weight: 126 mm × 92 mm × 71 mm / 545 g
PACKAGE CONTENTS
- 1× PIXFRA Taurus T635 LRF thermal imaging clip-on with laser rangefinder
- 2× 18650 batteries
- 1× Charger for 2× 18650 batteries
- 1× Bluetooth remote control with magnetic holder
- 1× USB-C cable
- 1× Carry strap
- 5× Heat pads
- 1× Mounting tool
- User manual
Specifications PIXFRA Taurus T635 LRF Thermal Imaging Clip-On with Laser Rangefinder
| Automatic shutdown | Yes |
| Batteries included | Yes |
| Batteries required | Yes |
| Frame rate | 50 Hz |
| Housing material | Metal |
| Compatible with Pulsar remote | No |
| Detection range (m) | 1800 m |
| Objective lens diameter (mm) | 35 |
| Diopter compensation | No |
| Field of view (degrees) | 12.4° |
| Field of view (m/100m) min. | 22 m |
| Field of view at 1000 m | 220 m |
| Head mountable | No |
| Impact resistance / rifle (J) | 6000 J |
| Interfaces | USB Type-C |
| Internal memory | 32 GB |
| Calibration | Automatic, Manual |
| Color | Black |
| Color palette | Yes |
| Battery life (h) | 6 hours |
| NETD (< mK) | 18 |
| Net weight (without accessories) (g) | 500 g |
| Eyepieces for glasses wearers | No |
| Product family [Night vision] | Taurus |
| Rangefinder | Yes |
| Resolution | 1920 x 1080 pixels |
| Screen type | OLED |
| Close-up focusing (m) | 3 m |
| Tripod thread | Yes |
| Stream Vision compatible | No |
| Max temperature range (°C) | 55°C |
| Min temperature range (°C) | -30°C |
| Total net weight (incl. accessories) (g) | 1590 g |
| Total width (mm) | 92 mm |
| Total height (mm) | 71 mm |
| Total length (mm) | 126 mm |
| Step zoom | 1x |
| Type | Lithium-ion |
| Type [Nightvision] | Monocular |
| Sensor type | VOx 640x512 / 12µm / NETD |
| Zoom up to | 27.6x |
| Zoom from | 1x |
| Power supply included | No |
| Waterproof | Yes |
| Waterproof protection level | IP67 |
| Display off function | Yes |
