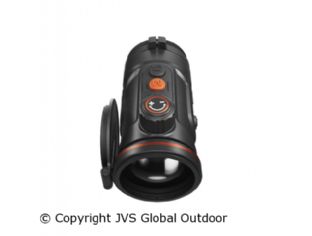

HIKMICRO Stellar SX60L 3.0 Thermal Image Scope
Dominate the darkness with precision.
HIKMICRO Stellar SX60L 3.0 thermal imaging camera. The SX60L 3.0 is equipped with a 1,280×1,024 @ 12μm thermal detector, with much higher sensitivity (NETD＜18mK) and the latest image processing algorithm (Image Pro 2.0), allowing users to capture the finest details uninterruptedly regardless of weather or light conditions. With a 2,560×2,560 1.03” AMOLED large screen, the SX60L 3.0 makes it easier to see targets quickly and accurately. The built-in lens 1,000m LRF and ballistic calculation contribute to more accurate shooting. The riflescope is mainly used for hunting in the field and in the forest.
Description
HIKMICRO Stellar SX60L 3.0 thermal imaging scope.
SX60L 3.0 is equipped with a 1,280×1,024 @ 12μm thermal detector, with much higher sensitivity (NETD＜18mK) and the latest image processing algorithm (Image Pro 2.0), so that users can continuously capture the finest details regardless of the weather or light conditions. With a 2,560×2,560 1.03” AMOLED large screen, SX60L 3.0 makes it easier to see targets quickly and accurately. The built-in lens 1,000m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for hunting in the field and in the forest.
Main Features
1,280 x 1,024 resolution @12 μm thermal detector
Highly sensitive thermal module NETD<18 mK (@ 25°C, F# = 1.0)
60 mm, F1.0 lens with detection range up to 3,100 m
2,560 × 2,560 resolution 1.03-inch OLED screen
Built-in laser rangefinder up to 1,000 m, with ballistic calculation
Rechargeable internal batteries and external battery, 10 hours continuous operation
/>High shock resistance up to 1,000 g/0.4 ms
Technical specifications
Thermal module
Image sensor: VOx uncooled focal plane
Resolution: 1.280 × 1.024
Frame rate: 25 Hz
Pixel interval: 12 μm
Response waveband: 8 μm to 14 μm
NETD: less than 18 mK (@ 25°C, F# = 1.0)
Lens (focal length): 60 mm, F1.0
Focus mode: Focus ring
Detection range: 3.100 m
Focus distance: 6 meters
Magnification: 2.5×-28.5×; Support 1× step value of continuous zoom
Field of view (H×V), degrees/m @100 m: 14.6° × 11.7°/25.6 m × 20.5 m
Image display
Display: 2,560 × 2,560, 1.03-inch OLED
Palettes: Black Warm, White Warm, Red Warm, Fusion, Red Monochrome, Green Monochrome
Exit pupil: 6 mm
Eye relief: 45 mm
Diopter (range): -5D to 3D
Brightness adjustment: Yes
Tone adjustment: Cold, Warm
Contrast adjustment: Yes
Zoom Pro: Yes
Image Pro 2.0: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
System
Video Recording: On-board Video Recording
Snapshot Capture: Yes
Audio Recording: Yes
Recoil Recording: Yes
Standby Mode: Yes
Storage: Built-in EMMC (64GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance Measurement: Yes
Zero Profiles: 5
Recoil: 1,000g/0.4ms
Zero Freeze: Yes
Local Album: Yes
Power
Type Battery: Two rechargeable lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
Battery life: 10 hours of continuous use (@ -20°C, Zoom Pro, LRF on)
Type-C power supply: 5V DC/2A, USB Type-C interface; supports QC3.0
General
Mounting: Standard 30mm
Protection Level: IP67
Dimensions: 452.6mm x 94.3mm x78.9mm
Weight: 860g without external battery
Working Temperature: -30°C to 55°C (-22°F to 131°F)
Center Height: 41mm
Laser Distance Meter
Laser Safety Class: Class 1
Wavelength: 905nm
Measurement Range: 1,000m
Measurement Accuracy: ±1m
Measurement Range: 10m
Included:
- HIKMICRO Stellar SX60L 3.0 Thermal Image Scope x1
- Battery x2
- Battery Charger x1
- Quick Start Guide x1
- Non-dust Cloth x1
- Type-C Cable
- Bag
- Scope Guard
Products supplied by Jvs Global Outdoor may not be traded to sanctioned parties and/or countries.
It is prohibited to export night vision with electronic image amplification to countries outside the EU.
