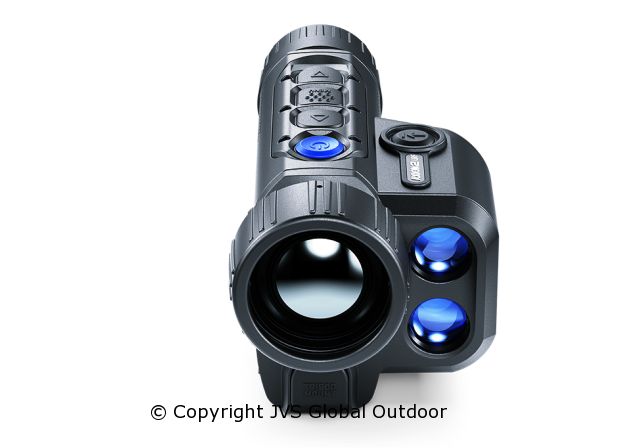

For the first time, the new Axion XG Series monocular comes with a highly detailed 640×480 pixels @ 12µm European made Lynred thermal imaging sensor.
It features a fast aperture F35/1.0 germanium lens, three sensitivity amplification levels as well as enhanced Wi-Fi connectivity with 2.4 / 5 GHZ waveband support and the possibility of remote operation and firmware update via the Stream Vision 2 application.
The pocked-sized and lightweight monocular features enhanced image processing algorithms and provides high-quality rendering of both target objects and background.
The Axion 2 XG is designed for constant and often hardcore use.
The reinforced magnesium alloy housing reliably protects the internal components from shocks, drops, moisture, heat and cold.
The devices are equipped with a high-capacity APS5 rechargeable battery that provides up to 7 hours of continuous operation of the device on a single charge.
European qualityThe new Axions stand out from the crowd with their high sensitivity French-made Lynred thermal imaging sensor with 640×480 pixel resolution (pixel size 12 microns).
This ensures perfect detail recognition even under the harshest weather conditions when thermal contrast is extremely low.
The tiniest temperature differences will be clearly visible in rainfall, fog or high humidity.Feel confident to take your Axion with you on a long harsh trip to the forest.
The device is designed for constant heavy use.
The high-quality magnesium alloy body is lightweight yet robust.
The housing reliably protects the internal components of the thermal imager from shock, moisture, heat and cold.
Moreover, the quality metal housing effectively disperses the heat from the electronics minimising image noise and increasing operation consistency for long-term observation.Superior image quality
While we all, avid nature fans, aim for the best image quality and ultimate detection efficiency, Pulsar’s 2nd generation Axions feature a powerful Germanium F35/1.0 fast aperture lens.
These optics deliver high infrared transmission in the LWIR range.
The high precision manufacturing of the optical lens elements result in an extremely clear and detailed image generated by the Axion 2 XG’s sensor.In combination with a highly sensitive Lynred sensor, the fast aperture lens provides exceptional detection capabilities.
A standard 1.8 m tall object can be detected up to 1750 m away in complete darkness.
The new Axions are equipped with a high-contrast AMOLED display with improved colour rendering.
You’ll be amazed at how sharp and smooth the image is.
Improved algorithms for optimal observationWe added new image processing algorithms and adjusted fine brightness and contrast which, combined with the three available image amplification levels, give great assistance in the early detection and recognition of targets under different weather and temperature conditions.
Moreover, Axion 2 XG thermal imaging devices have a distinctively wide linear field of view of 18.2 m at a 100 m distance or an angular field of view of 10.7°. These improved spotters are perfect for viewing wide areas and observing distant objects in motion.
For an even more detailed image use the “Picture in Picture” function.

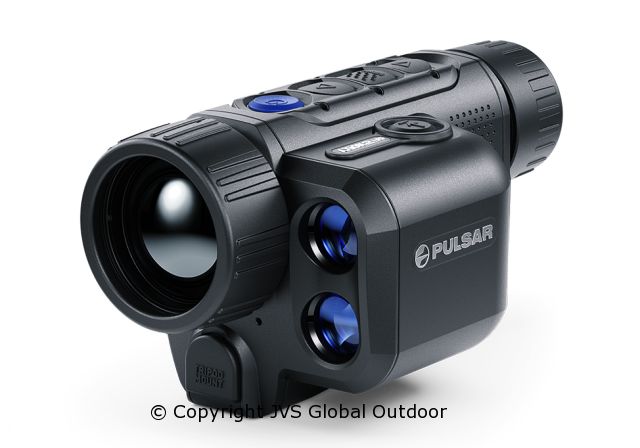

An additional window will pop up at the top of the display showing the centre of the observed scene two or four times magnified.LRF for precise decision makingThe LRF version of the Axion 2 XG has a built-in precision laser rangefinder – an essential component for understanding the target distance and making the right call.
The LRF with a range of up to 1000 metres enables you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 metres for quick and hassle-free assessment of the scenario.
By knowing the precise distance, you will be able to evaluate the peculiarities of the setting, the distance and other important factors.
Space and time savingWhen we say the Axion 2 XG35 is the best bang for a buck, we mean it! The pocket-size design of the device is space-saving and comfortably lightweight – it weighs only 300 grams.
The Axion is easy to grip and operate for both right- and left-handed hunters.It is not only space-saving but also features a significantly short turn-on time: due to the fast aperture F35/1.0 lens, the device is fully functional within 5 seconds of being turned on. Quick start-up helps save battery power – you can turn it off and on in an instant when needed.In fact, we doubled the new Axions’ operating time! A high-capacity APS5 rechargeable battery provides up to 11 hours of continuous operation of the thermal imaging device on a single charge.
The battery is removed from its housing and replaced with a new one in seconds.Keep the memories with youWe upgraded the Axion 2 XG (as well as the LRF version) with a built-in video recorder.
The internal memory can store hours of video material and tens of thousands of photos.
Purchase a thermal spotter to receive 16 GB
Improved built-in Wi-Fi connectivity allows you to connect your Axion 2 XG to Android and iOS smartphones via the Stream Vision 2 mobile application.
This opens up a wide range of options including wireless device software updates, real-time image transmission from the device to a smartphone screen, posting on social media plus remote control of digital device functions and access to news streaming by Pulsar.
Sensor
640x480 pix. @ 12 µm (NETD <40 mK)
Field of view (HxV), degrees / m@100m
Optics
Field of view (HxV), degrees / m @ 100 m
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014
Video Recorder
Video / photo resolution, pixel
Environmental Characteristics
Degree of protection, IP code (IEC60529)
Operating temperature range, °С
Connections and Compatibilities
Power Supply
Battery type
APS 5 Li-ion Battery Pack
Operating time on battery pack (at t=22°C), h *
PACKAGE CONTENTS
- Axion 2 LRF thermal monocular
- APS 5 rechargeable battery
- 2 battery-locking covers
- Power adapter
- USB Type-C cable with USB Type-A adapter
- Carrying case
- Hand strap
- Quick reference user manual
- Lens cleaning cloth
- Warranty information
- Tripod adapter
