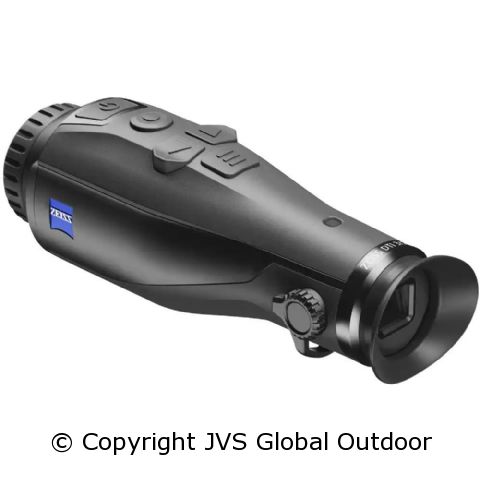

Zeiss DTI 3/25
This high-quality thermal imaging optic offers a wide field of view of 26 m at a distance of 100 m
The high-resolution HD-LCOS display (1280x960 px) provides detailed images
Focal length: 25mm / F 1.0
Lens Type: Germanium
Display type: LCOS
Display resolution: 1280x960px
Resolution sensor: 384x288 px
Pixel sensor: 17 µm
Range: up to 880 m
Field of view at 100 m: Horizontal 26 m
Field of view lens side: 15°x11°
Magnification: 1.8x
Digital zoom: max. 4x (in 0.5 increments 1.0x - 4.0x)
Frame Rate: 50Hz
Internal memory: 15GB
Video/Picture/Livstream function
Connection to other devices: via the ZEISS Hunting App or USB
WiFi Frequency: 2.4GHz
WLAN standard: IEEE 802.11b/g/n
Operating temperature: -10°C to +40°C
Degree of protection: IP66 (protected against heavy rain)
Power supply: Li-ion battery
Battery life: max. 10 hours
External power supply: 5V/3A, 9V/2, 12V/1.5A (USB)
Dimensions (LxWxH): 187x60x65 mm
Weight: 410g
scope of delivery
Thermal imaging device ZEISS DTI 3/25
carrying strap
Carrying bag with carrying strap
cleaning cloth
Type-C USB cable
Quick Start Guide
warranty card
operation manual
Products supplied by Jvs Global Outdoor may not be traded to sanctioned parties and/or countries.
It is prohibited to export night vision with electronic image amplification to countries outside the EU.
Click here for the brochure
