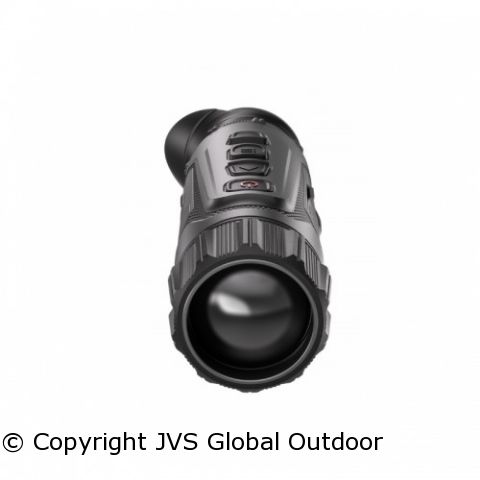

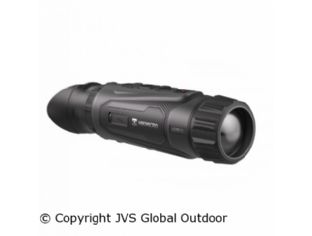

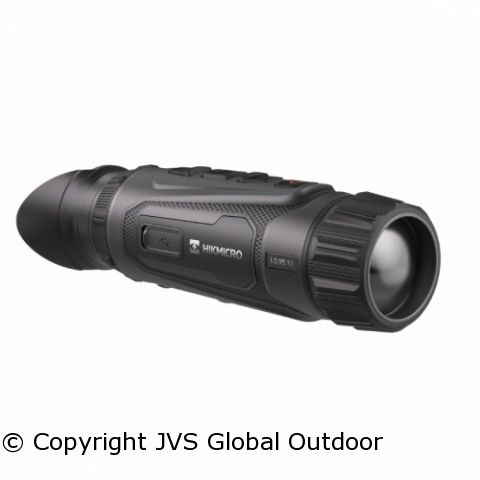

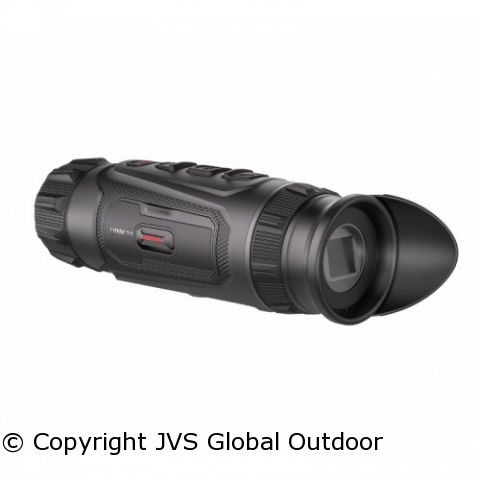

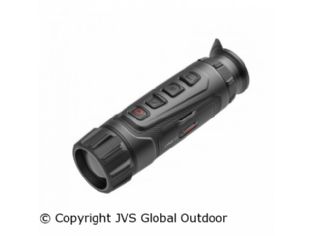

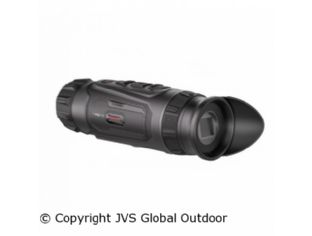

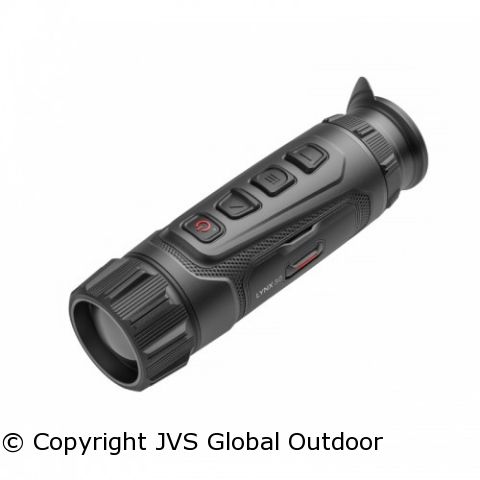

HIKMICRO Lynx LQ35 3.0 thermal monocular
The HIKMICRO Lynx LQ35 3.0 is an advanced thermal monocular for users who demand maximum image quality and dependable performance at medium and long observation distances. This compact premium device combines modern sensor technology, a shutterless system, and intelligent image optimisation in a lightweight and highly portable design.
With a 640 × 512 VOx thermal sensor, a 35 mm F1.0 lens, and a base magnification of 1.9x, the LQ35 3.0 delivers exceptionally detailed images and a detection range of up to 1800 metres. Thanks to a NETD of less than 15 mK, thermal differences remain clearly visible even in difficult conditions such as fog, rain, or high humidity.
The integrated HSIS shutterless technology ensures a smooth and uninterrupted viewing experience without disturbing calibration noise. In addition, Image Pro 3.0 and Zoom Pro further enhance sharpness, detail reproduction, and digital zoom performance.
The large 0.49 inch OLED display with 1920 × 1080 resolution provides a comfortable and crisp viewing experience with excellent colour fidelity. Despite its powerful performance, the monocular weighs only 354.5 grams including battery, making it easy to carry in the field. The replaceable 18650 Li-ion battery offers an operating time of up to 5 hours, making the device especially practical for extended observation sessions.
With 64 GB of internal memory, photo, video, and audio recording, a wifi hotspot, Hot Track, distance measurement, and a local gallery, the HIKMICRO LQ35 3.0 is a complete premium thermal imaging device for hunters, professionals, and nature observers, both day and night.
Key features
- 640 × 512 VOx thermal sensor with high sensitivity
- NETD < 15 mK for extremely high contrast and detail
- 35 mm F1.0 lens
- Detection range up to 1800 metres
- Base magnification 1.9x with digital zoom up to 15.2x
- HSIS shutterless system for uninterrupted viewing
- Image Pro 3.0 and Zoom Pro for enhanced image quality
- 0.49 inch OLED display with 1920 × 1080 resolution
- 64 GB internal memory
- Photo, video, and audio recording
- 2.4 and 5 GHz wifi hotspot
- Replaceable 18650 Li-ion battery
- Compact design and low weight
Technical specifications
| Brand | HIKMICRO |
| Model | Lynx LQ35 3.0 |
| Type | Thermal monocular |
| Sensor | VOx uncooled Focal Plane Array |
| Sensor resolution | 640 × 512 |
| Frame rate | 50 Hz |
| Pixel pitch | 12 μm |
| Spectral range | 8 μm - 14 μm |
| NETD | < 15 mK (@25 °C, F1.0) |
| Lens | 35 mm, F1.0 |
| Focus | Focus ring |
| Detection range | 1800 m |
| Minimum focus distance | 3.5 m |
| Magnification | 1.9x - 15.2x |
| Digital zoom | 8x |
| Field of view | 12.5° × 7.5° / 21.9 m × 13.2 m at 100 m |
| Display | 0.49 inch OLED / AMOLED, 1920 × 1080 |
| Colour palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
| Exit pupil | 6 mm |
| Eye relief | 20 mm |
| Diopter adjustment | -5D to +3D |
| Zoom Pro | Yes |
| HSIS | Yes |
| Image Pro 3.0 | Yes |
| Video recording | Yes |
| Photo capture | Yes |
| Audio recording | Yes |
| Standby mode | Yes |
| Internal memory | 64 GB EMMC |
| PIP | Yes |
| WLAN hotspot | 2.4 / 5 GHz |
| Hot Track | Yes |
| Distance measurement | Yes |
| Local gallery | Yes |
| Battery type | Replaceable Li-ion 18650 battery |
| Operating time | Approx. 5 hours at 25 °C with hotspot / approx. 4.5 hours at -20 °C with hotspot |
| Connection | USB Type-C, 5 V DC, 2 A |
| Protection class | IP67 |
| Dimensions | 169.6 × 53.6 × 49.5 mm |
| Weight | 354.5 g including battery |
| Operating temperature | -30 °C to +45 °C |
| Humidity | ≤ 90 % |
Scope of delivery
- HIKMICRO Lynx LQ35 3.0 thermal monocular
- 18650 Li-ion battery
- USB-C cable
- Carry strap / pouch (depending on model)
- Cleaning cloth
- User manual
