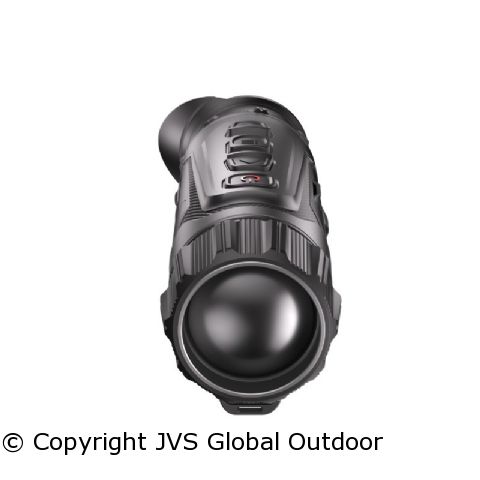

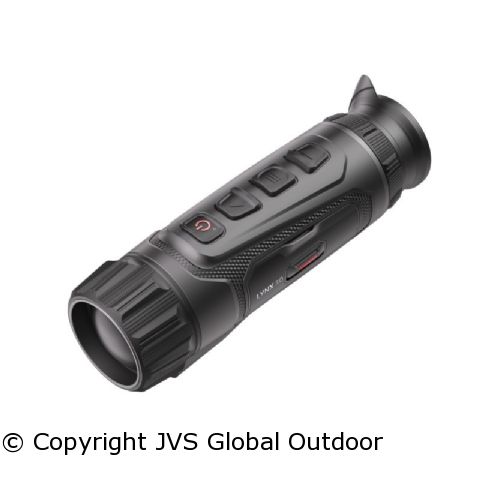

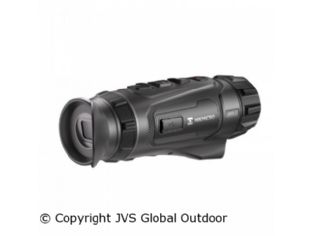

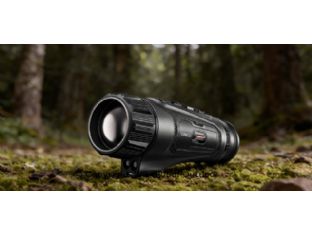

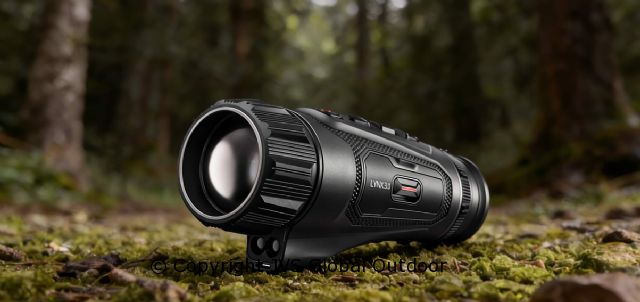

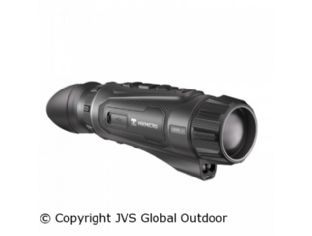

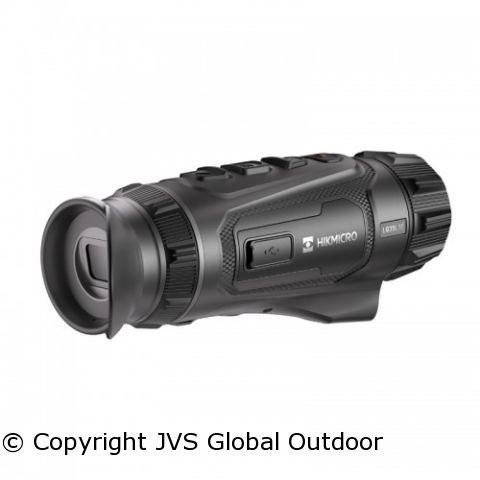

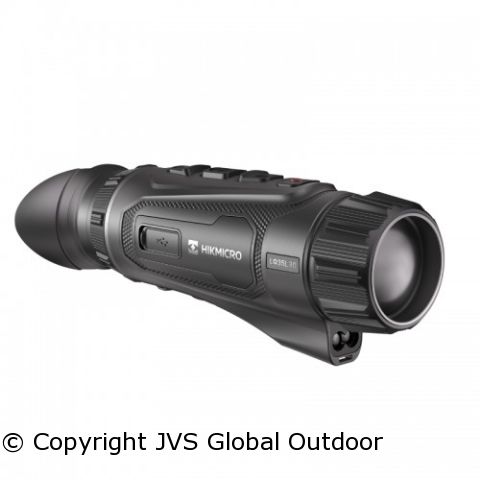

HIKMICRO Lynx LQ35L 3.0 thermal monocular with laser rangefinder
The HIKMICRO Lynx LQ35L 3.0 is an advanced thermal monocular with an integrated laser rangefinder, developed for users who require maximum image quality and precise distance information at medium and long observation ranges. This compact premium device combines modern sensor technology, a shutterless system, and intelligent image optimisation in a lightweight and highly portable design.
With a 640 × 512 VOx thermal sensor, a 35 mm F1.0 lens, and a base magnification of 1.9x, the LQ35L 3.0 delivers exceptionally detailed images and a detection range of up to 1800 metres. Thanks to a NETD of less than 15 mK, thermal differences remain clearly visible even in difficult conditions such as fog, rain, or high humidity.
The integrated laser rangefinder with a range of up to 1000 metres and an accuracy of ±1 metre makes it possible to determine distances quickly and reliably. This makes the model especially suitable for hunters, professionals, and nature observers who need exact range information in addition to observation capability.
The integrated HSIS shutterless technology ensures a smooth and uninterrupted viewing experience without disturbing calibration noise. In addition, Image Pro and Zoom Pro further enhance sharpness, detail reproduction, and digital zoom performance.
The large 0.49 inch AMOLED display with 1920 × 1080 resolution provides a comfortable and crisp viewing experience with excellent colour fidelity. Despite its powerful performance, the monocular weighs only 410 grams including battery, making it easy to carry in the field. The replaceable 18650 Li-ion battery offers an operating time of up to 4.5 hours, making the device especially practical for extended observation sessions.
With 64 GB of internal memory, photo, video, and audio recording, a wifi hotspot, Hot Track, distance measurement, and a local gallery, the HIKMICRO LQ35L 3.0 is a highly complete thermal imaging device for versatile use, both day and night.
Key features
- 640 × 512 VOx thermal sensor with high sensitivity
- NETD < 15 mK for extremely high contrast and detail
- 35 mm F1.0 lens
- Detection range up to 1800 metres
- Integrated laser rangefinder up to 1000 metres
- Accuracy of ±1 metre
- Base magnification 1.9x with digital zoom up to 15.2x
- HSIS shutterless system for uninterrupted viewing
- Image Pro and Zoom Pro for enhanced image quality
- 0.49 inch AMOLED display with 1920 × 1080 resolution
- 64 GB internal memory
- Photo, video, and audio recording
- 2.4 and 5 GHz wifi hotspot
- Replaceable 18650 Li-ion battery
- Compact design and low weight
Technical specifications
| Brand | HIKMICRO |
| Model | Lynx LQ35L 3.0 |
| Type | Thermal monocular with laser rangefinder |
| Sensor | VOx uncooled Focal Plane Array |
| Sensor resolution | 640 × 512 |
| Frame rate | 50 Hz |
| Pixel pitch | 12 μm |
| Spectral range | 8 μm - 14 μm |
| NETD | < 15 mK (@25 °C, F1.0) |
| Lens | 35 mm, F1.0 |
| Focus | Focus ring |
| Detection range | 1800 m |
| Minimum focus distance | 3.5 m |
| Magnification | 1.9x - 15.2x |
| Digital zoom | 8x |
| Field of view | 12.5° × 7.5° / 21.9 m × 13.2 m at 100 m |
| Display | 0.49 inch AMOLED, 1920 × 1080 |
| Colour palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
| Exit pupil | 6 mm |
| Eye relief | 20 mm |
| Diopter adjustment | -5D to +3D |
| Zoom Pro | Yes |
| Shutterless system | Yes |
| Image optimisation | Yes |
| Video recording | Yes |
| Photo capture | Yes |
| Audio recording | Yes |
| Standby mode | Yes |
| Internal memory | 64 GB EMMC |
| PIP | Yes |
| WLAN hotspot | 2.4 / 5 GHz |
| Hot Track | Yes |
| Distance measurement | Yes |
| Local gallery | Yes |
| Battery type | Replaceable Li-ion 18650 battery |
| Operating time | Approx. 4.5 hours at 25 °C with hotspot / approx. 4 hours at -20 °C with hotspot |
| Connection | USB Type-C, 5 V DC, 2 A |
| Laser class | Class 1 |
| Wavelength | 905 nm |
| Laser rangefinder range | Up to 1000 m |
| Laser rangefinder accuracy | ±1 m |
| Minimum measuring distance | 10 m |
| Protection class | IP67 |
| Dimensions | 169.6 × 53.6 × 49.5 mm |
| Weight | 410 g including battery |
| Operating temperature | -30 °C to +45 °C |
| Humidity | ≤ 90 % |
Scope of delivery
- HIKMICRO LQ35L 3.0 thermal monocular with LRF
- 18650 Li-ion battery
- USB-C cable
- Carry strap / pouch (depending on model)
- Cleaning cloth
- User manual
