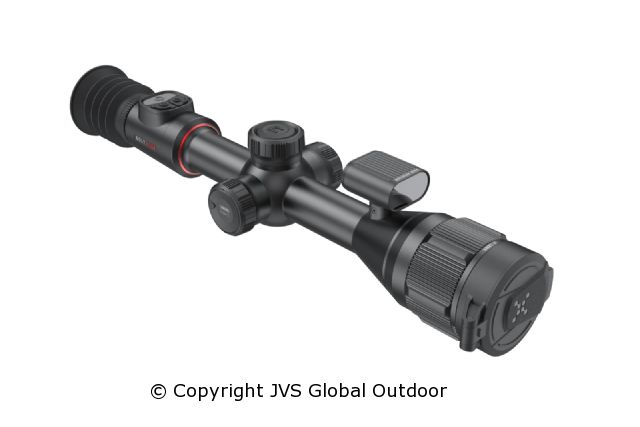

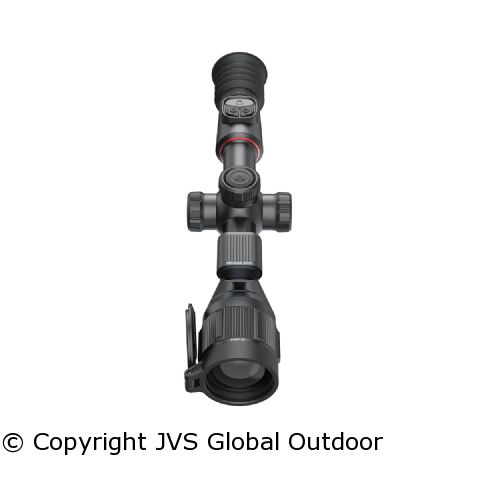

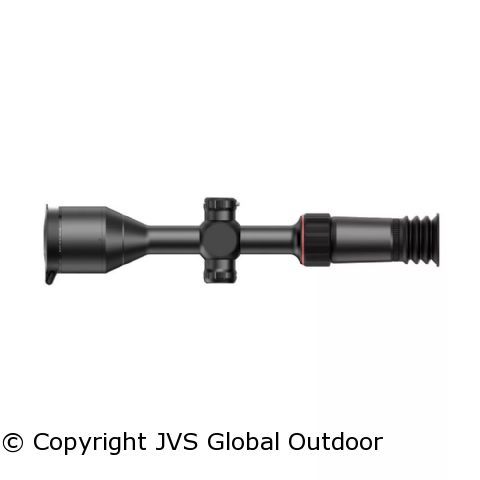

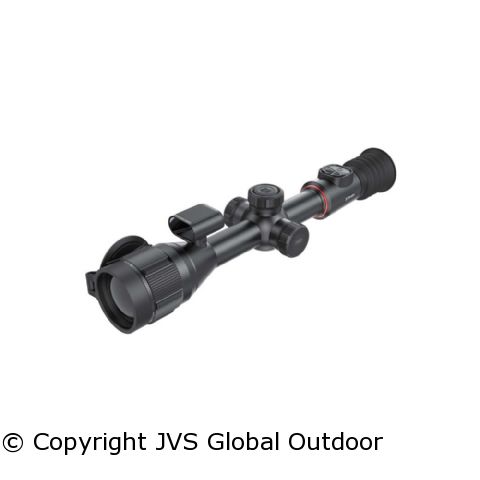

NOCPIX BOLT H50R thermal riflescope
The NOCPIX BOLT H50R is an advanced thermal riflescope that combines high image quality, smart aiming support, and dependable performance in a rugged housing. With a 640 x 512 thermal sensor, a 50 mm F1.0 lens, an integrated laser rangefinder up to 1200 metres, and intelligent ballistic features, this scope provides everything needed for accurate observation and shot placement in the field.
The BOLT H50R is designed to deliver sharp and fluid images in a wide range of conditions. Its self-developed sensor with a NETD of ≤ 18 mK, a 60 Hz frame rate, the Reality+ algorithm, and the Ultra Clear mode provide strong contrast, excellent detail recognition, and reliable target identification, even in demanding weather conditions.
For more precise shooting at longer distances, the BOLT series combines a laser rangefinder with ballistic calculations. This allows quick distance measurement and direct aiming correction in the field. The 50 mm eye relief ensures a comfortable viewing position during long observation sessions, while the 10 mm exit pupil offers more forgiving alignment for faster target acquisition.
The BOLT H50R is also strong when it comes to runtime. Its dual battery system consists of a built-in 5000 mAh rechargeable battery and a replaceable 18650 battery, delivering up to 9 hours of operation. This allows you to stay in the field longer and swap power on the go without interrupting your hunt.
The scope is built for harsh conditions. The high-grade aluminium alloy housing with integrated one-piece construction offers excellent durability. With its IP67 protection rating, an operating range of -20 °C to +55 °C, and high shock resistance, the BOLT H50R remains dependable under intensive use and repeated recoil.
In addition, the BOLT series offers smart features such as N-LINK app connectivity, custom reticles, ballistic parameter settings, seven colour palettes, 10 levels of image adjustment, and built-in photo, video, audio, and recoil-activated recording. Silent buttons and an integrated level platform make this thermal riflescope even more practical for real hunting conditions.
Key features
- 640 x 512 thermal sensor with 12 μm pixel pitch
- NETD ≤ 18 mK for strong contrast and detail
- 50 mm F1.0 objective lens
- Detection range up to 2600 metres
- Integrated laser rangefinder up to 1200 metres
- Ballistic calculations
- Reality+ algorithm and Ultra Clear mode
- Magnification from 3x to 24x
- Dual battery system with built-in 5000 mAh battery and replaceable 18650 battery
- Operating time up to 9 hours
- 0.39 inch AMOLED display with 1024 x 768 resolution
- 64 GB internal memory
- Photo, video, audio, and recoil-activated recording
- Wifi and app support via N-LINK
- IP67 water and dust protection
- Aluminium alloy housing
Technical specifications
| Brand | NOCPIX |
| Model | BOLT H50R |
| Type | Thermal riflescope |
| Sensor resolution | 640 x 512 |
| Pixel pitch | 12 μm |
| NETD | ≤ 18 mK |
| Frame rate | 60 Hz |
| Objective lens | 50 mm F1.0 |
| Field of view (H x V) | 8.8 x 7.0° / 15 x 12 m at 100 m |
| Magnification | 3x - 24x |
| Detection range | 2600 m |
| Eye relief | 50 mm |
| Exit pupil diameter | 10 mm |
| Diopter | -5 to +5 |
| Display type | 0.39 inch AMOLED |
| Display resolution | 1024 x 768 |
| Battery type | Built-in 5000 mAh battery and 18650 battery |
| Max. operating time | 9 hours |
| Max. rangefinder distance | 1200 m |
| Ballistic calculation | Yes |
| Photo/video recorder | Yes |
| RAV | Yes |
| Memory capacity | 64 GB |
| Wifi / app | Yes |
| Weight | 960 g with battery |
| Dimensions | 394 x 91.6 x 80 mm |
| Protection class | IP67 |
| Operating temperature | -20 °C to +55 °C |
| Housing | Aluminum alloy |
