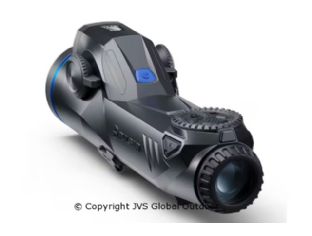

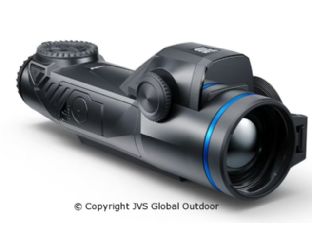

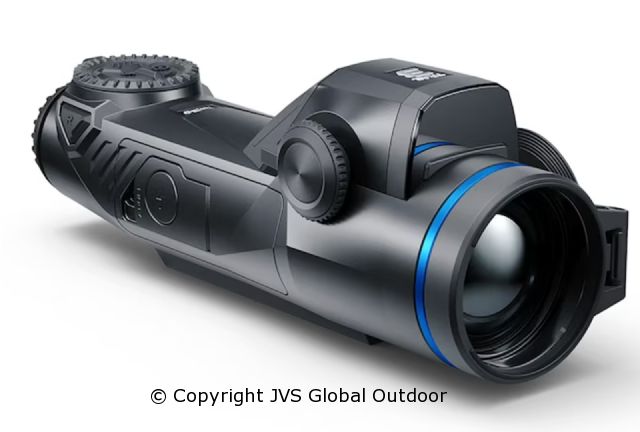

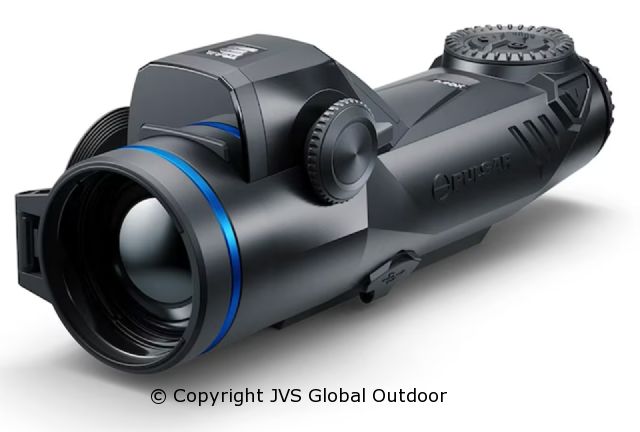

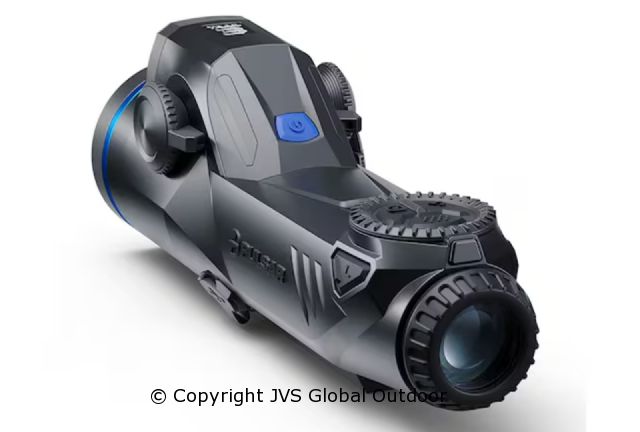

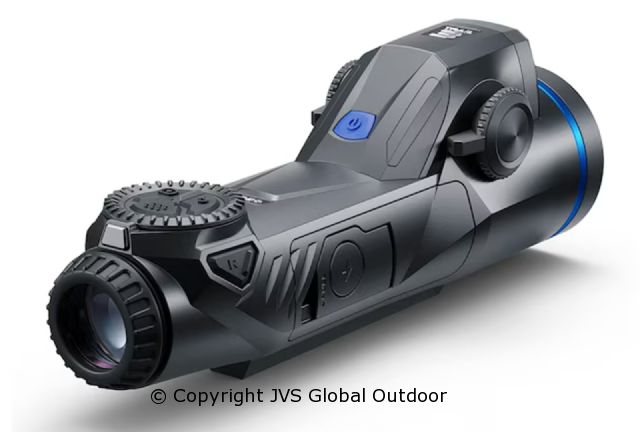

Thermal Riflescope for Mid-Range Hunting with Precision Rangefinding

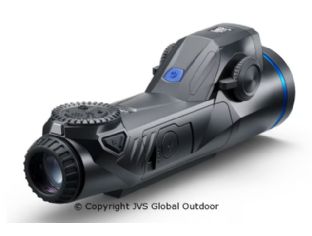

The Pulsar Trail 3 LRF XQ50 is purpose-built for short- to mid-range shooting in challenging environments such as fog, high humidity, or low-contrast conditions. Featuring a sensitive 384x288 17μm thermal sensor and a crisp 1920x1080 AMOLED full-HD display, this scope delivers stable, detailed thermal imagery even when visibility is limited. It offers 3.5x to 14x digital magnification, an integrated laser rangefinder up to 1200 meters, and a built-in ballistic calculator that provides on-screen corrections for pinpoint accuracy. Its durable magnesium alloy monoblock housing and shock resistance up to 6000 Joules make it suitable for powerful calibers up to .375 H&H. With features like recoil-activated video recording, Wi-Fi/Bluetooth connectivity, and support for Stream Vision 2 and Ballistics, the XQ50 is an advanced and reliable companion for serious hunters in any weather condition.
Key Features
- 384x288 17μm sensor with NETD <15 mK
High thermal sensitivity for reliable target detection in fog, rain, or low temperature. - Rugged magnesium alloy monoblock housing
Maximum structural rigidity under heavy recoil – built for professional-grade use. - Ergonomic controls with dual-side focusing wheels
Intuitive operation with circular encoder and ambidextrous focus dials – glove-friendly design. - Built-in laser rangefinder (up to 1200 meters)
Quick and precise distance measurement in single or scanning mode, with ±1 meter accuracy. - Integrated ballistic calculator
Real-time aim point corrections based on your ballistic profile – displayed directly on screen. - Recoil-activated video recording & 64GB internal memory
Automatically records every shot with three sensitivity levels and shadow recording enabled. - Full HD AMOLED display (1920x1080)
Crisp, natural image quality that supports comfortable viewing and accurate tracking over long sessions. - Round Picture-in-Picture view
Zoom in on your target while maintaining situational awareness – ideal for tracking moving game. - Stream Vision 2 & Ballistics compatible
Connect your smartphone for live control, media transfer, ballistic profiles, and software updates. - Quick-change LPS7i battery (up to 12 hours)
Long-lasting power for all-day hunting – fast to swap and reliable in the field.
Video Pulsar Trail 3 LRF XQ50
Included Accessories
- LPS7i battery (6400 mAh)
- USB Type-C cable with adapter
- Rubber eyecup
- Power adapter
- Lens cloth
- Carrying case
- Quick Start Guide
- SV Ballistics Quick Start Guide
- Warranty card
- *Mount and screws optional depending on model configuration
Main Specifications Pulsar Trail 3 LRF XQ50
| Model | Trail 3 LRF XQ50 |
| Resolution and μm | 384x288 / 17μm |
| Sensor type | VOx uncooled microbolometer |
| NETD | <25 mK sensor / <15 mK system |
| Detection range | 1800 meters |
| Rangefinder | Yes, up to 1200 meters, ±1 m |
| Lens diameter | F50 / 1.0 |
| Field of View | 7.5° / 13.1 m @100 m |
| Screen type | AMOLED HD 1920x1080 |
| Battery duration | Up to 12 hours |
| Battery replaceable | Yes (LPS7i) |
| Weight | 700 grams (without mount) |
| Color Palettes | 9 (Whitehot, Blackhot, Rainbow, etc.) |
| Zoom options | 3.5x – 14x digital |
| Adjustable contrast | Yes |
| Water-resistance rating | IP67 |
Availability and Demonstration
The Pulsar Trail 3 LRF XQ50 is available for hands-on demonstration by appointment. Our team of experienced hunters will gladly provide tailored advice and walk you through the product in the field.
Additional Technical Details
- Frame rate: 50 Hz
- 3 display shapes: round, oval, rectangular
- 10 reticle shapes and 10 zeroing profiles
- Side incline and elevation angle indication
- Proximity sensor for automatic display deactivation
- Video resolution: 1440x1080 (.mp4 / .jpg)
- Video output via USB-C
- Supports Stream Vision 2 and Stream Vision Ballistics
- Multipoint Pulsar mounting prism
- Dimensions: 271x86x71 mm
- Shock resistance up to 6000 Joules – compatible with calibers up to .375 H&H and 12 gauge
