1280×1024 thermal riflescope with 75 mm lens and integrated laser rangefinder
The HIKMICRO Stellar SX75LR 4.0 is a thermal riflescope with a 1280×1024 sensor with 12 µm pixel pitch, a NETD of <12 mK and a 75 mm F1.2 lens. The base magnification is 3× and the field of view is 12.1° × 9.7°, which equals 21.2 × 17.0 meters at 100 meters. This gives you plenty of detail and overview when scanning fields and open terrain.
In practice, a sensor of 1280×1024 or higher lets you identify game well at shooting distance, from 100 to 200 meters. An integrated laser rangefinder up to 1,200 meters sits behind the lens, so you do not need a separate measuring device. The scope offers ballistic calculation and a virtual reticle. You view the image on a 1.03-inch AMOLED display of 2560×2560 with a brightness sensor.
You focus and zoom with the ring on the side of the scope. The SX75LR 4.0 is designed for mounting on a rail. Power comes from an internal battery and a replaceable 18650 battery, so you can carry a spare.
10 key features of the HIKMICRO Stellar SX75LR 4.0
- 1280×1024 sensor with 12 µm pixel pitch: plenty of thermal detail for assessing and identifying game at shooting distance.
- NETD <12 mK: high thermal sensitivity, so small temperature differences stay visible.
- 75 mm F1.2 lens: a large, fast lens for a detailed thermal image.
- 3× base magnification: a larger view of the game, with a field of view of 21.2 × 17.0 meters at 100 meters.
- Integrated laser rangefinder up to 1,200 meters: measures distance directly, without a separate device.
- Ballistic calculation with virtual reticle: provides ballistic information based on the data you enter.
- Image Pro 4.0 and Shutterless System (HSIS): image processing and a thermal image with fewer interruptions while scanning.

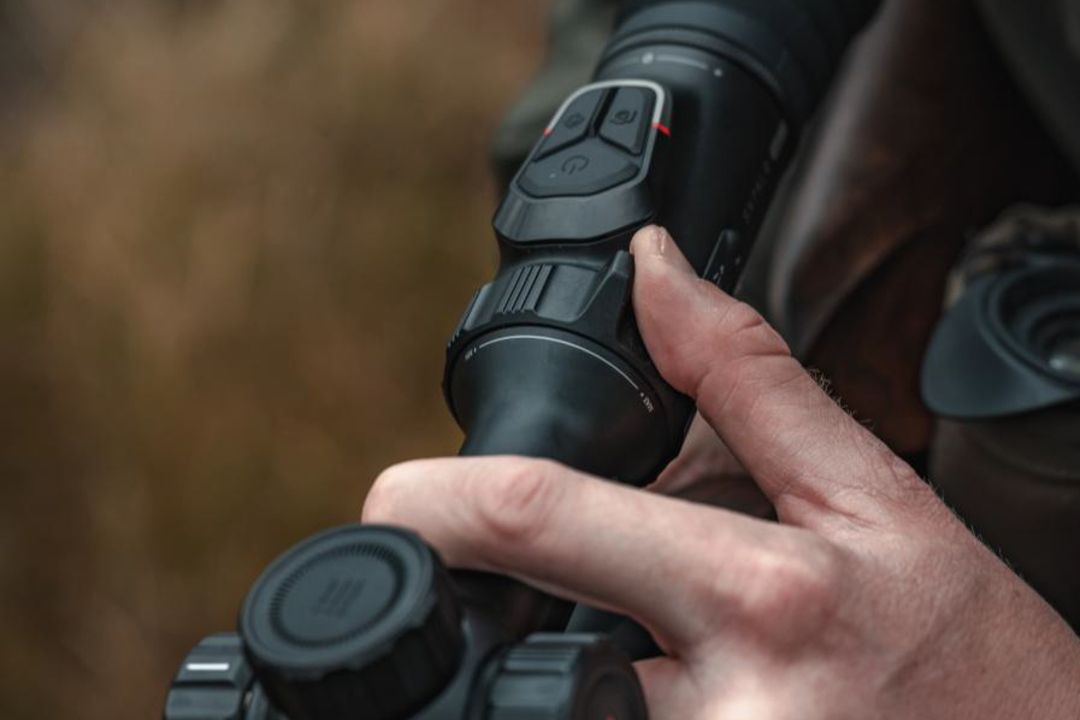

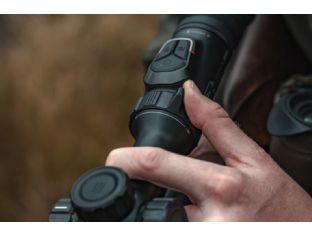

- Focus and zoom ring on the side: operation without changing your grip.

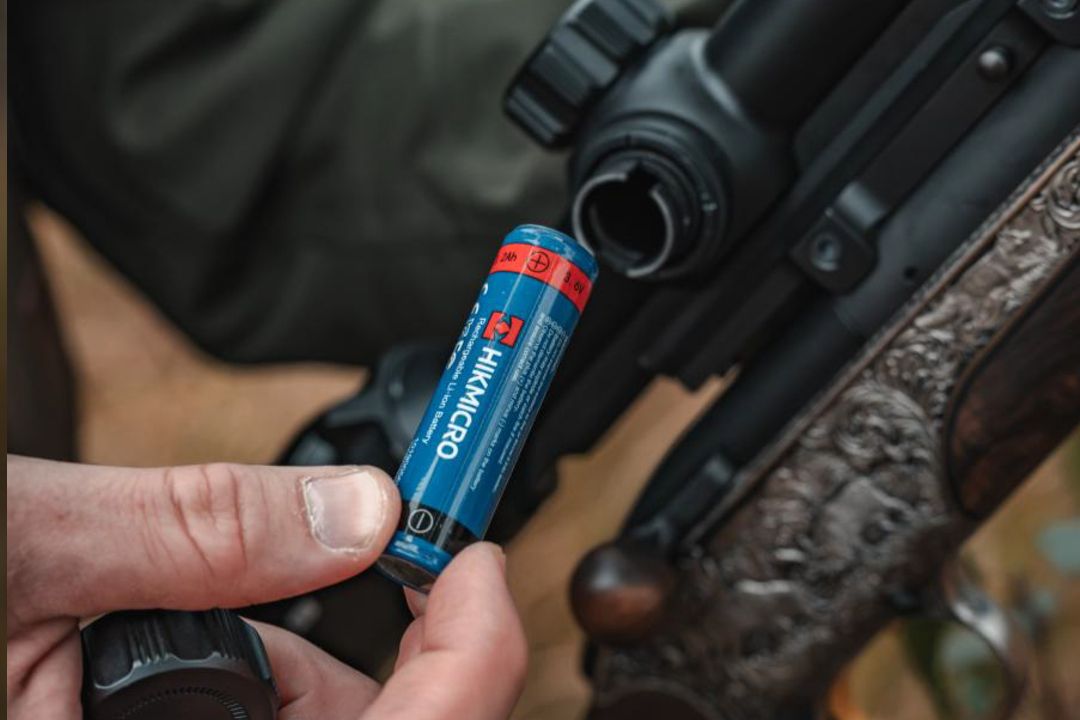

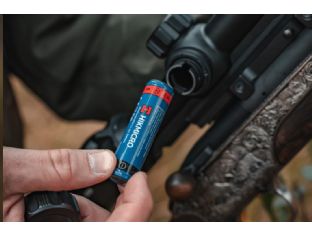

- Internal battery plus replaceable 18650 battery: with an operating time of 7 hours, you can bring a spare for longer sits.
- Recoil activation and IP67: suitable for use on a rifle and resistant to water and dust.
Operation, mounting and recording
The ring for focusing and zooming is on the side of the scope. You can focus and zoom while holding the scope the way you are used to. The SX75LR 4.0 is mounted on a rail. An integrated tilt sensor and recoil activation are included.
You can record photos and videos and view them in the local album. Via Wi-Fi and the HIKMICRO Sight app, you connect the scope to a smartphone. Several color palettes and adjustable contrast help you adapt the image to the conditions.
Main specifications HIKMICRO Stellar SX75LR 4.0
| Model | HIKMICRO Stellar SX75LR 4.0 |
| Resolution and μm | 1280×1024, 12 µm |
| Sensor type | Unknown |
| NETD | <12 mK |
| Detection range | 3,600 meters |
| Rangefinder | Yes, integrated laser rangefinder up to 1,200 meters |
| Lens diameter | 75 mm, F1.2 |
| Field of view | 12.1° × 9.7° (21.2 × 17.0 meters at 100 meters) |
| Display type | AMOLED 2560×2560, 1.03 inch |
| Battery life | 7 hours |
| Battery replaceable | Yes, 1 replaceable 18650 battery in addition to the internal battery |
| Weight | 1,073 grams |
| Color palettes | Various |
| Zoom options | Digital |
| Adjustable contrast | Yes |
| Water resistance | IP67 |
Additional manufacturer specifications HIKMICRO Stellar SX75LR 4.0
The sensor is produced in-house by HIKMICRO. The dimensions are 445.7 × 93.5 × 78.7 mm. The operating temperature ranges from -30 °C to 55 °C at a humidity of 90% or less. The housing has an IP67 rating.
The scope has a brightness sensor, an integrated tilt sensor and recoil activation. The ballistic calculation works together with a virtual reticle.
Within the Stellar 4.0 series, the SX75LR 4.0 has a 1280×1024 sensor with a 75 mm F1.2 lens, 3× base magnification and a detection range of 3,600 meters. The SQ50L 4.0 and SQ50LR 4.0 have a 640×512 sensor with a 50 mm F1.0 lens, 3.5× base magnification, a field of view of 15.2 × 12.2 meters at 100 meters and a detection range of 2,600 meters. The SX75L 4.0 has the same sensor, lens and magnification as the SX75LR 4.0. All models mentioned have a laser rangefinder up to 1,200 meters and the same AMOLED display.
View the HIKMICRO Stellar SX75LR 4.0 at JVS Outdoor
The HIKMICRO Stellar SX75LR 4.0 can be viewed and tried by appointment at JVS Outdoor. Experienced hunters will advise you on which thermal riflescope suits your way of hunting and your shooting distances.
Products supplied by Jvs Global Outdoor may not be resold to sanctioned parties and/or countries. It is prohibited to export devices with electronic image enhancement to countries outside the EU.
