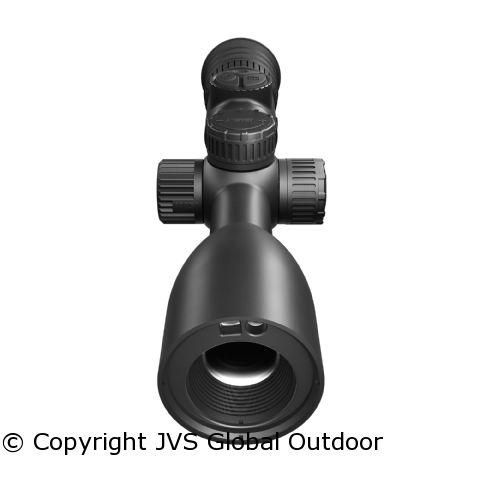

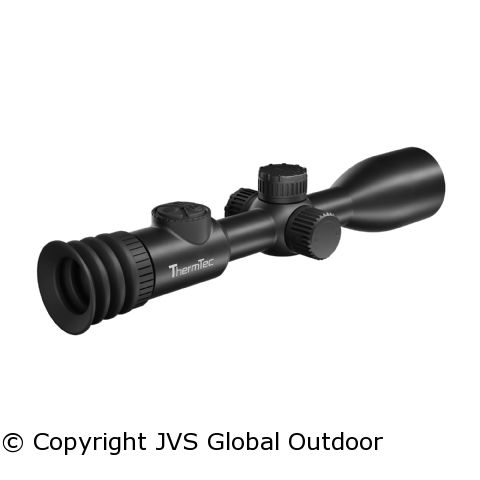

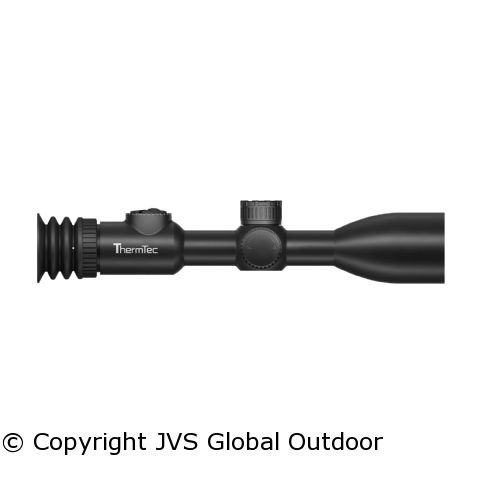

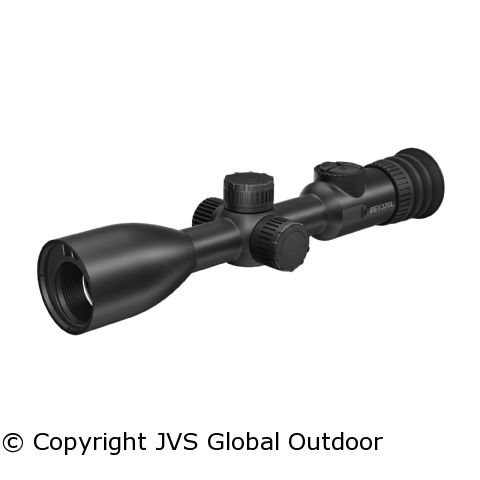

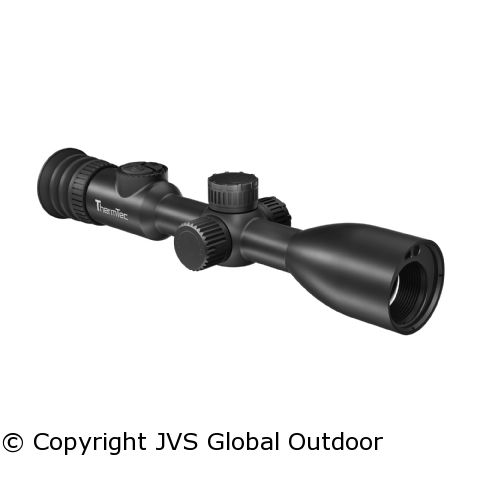

ThermTec Ibex 320L Thermal Imaging Scope with 384×288 Sensor and Laser Rangefinder
The ThermTec Ibex 320L is a compact thermal imaging scope featuring a 384×288 thermal sensor, 12 μm pixel pitch and a NETD of less than 18 mK. The 20mm F0.9 lens provides a relatively wide field of view of 13.1° × 9.8°, making this scope especially suitable for situations where a broad overview, fast scanning and quick target detection are important.
With a detection range of up to 1000 metres and an integrated laser rangefinder with a range of up to 1000 metres, the Ibex 320L combines compact dimensions with extensive functionality. The thermal image is displayed on a sharp 1600×1200 AMOLED display. ThermTec Super Resolution and AI Calibration help provide a clear and stable image, even when temperature differences in the surrounding environment are limited.
The Ibex 320L weighs approximately 720 grams and uses a replaceable 18650 battery with an operating time of up to six hours per battery. Features such as a ballistic calculator, Picture-in-Picture, Recoil Activated Video, audio recording and the ThermTec AutoSight System make this a versatile thermal imaging scope within the Ibex series. Thanks to the 30mm mounting tube, the scope can be mounted using standard 30mm scope rings.
Key Features of the ThermTec Ibex 320L
- 384×288 thermal sensor with 12 μm pixel pitch: delivers a clear thermal image in a compact system and provides sufficient detail for observation while hunting.
- NETD <18 mK: helps reveal small temperature differences, which is especially useful in conditions with low thermal contrast.
- 20mm F0.9 objective lens: provides a wide image and is suitable for fast scanning, observing and tracking game.
- Wide 13.1° × 9.8° field of view: provides an overview of approximately 23.04 × 17.28 metres at 100 metres, allowing a larger part of the surroundings to remain visible.
- Detection range up to 1000 metres: offers a generous range for detecting heat sources during hunting.
- Integrated laser rangefinder up to 1000 metres: makes it possible to measure the distance to an observed object directly without requiring a separate rangefinder.
- 1600×1200 AMOLED display: provides a sharp and comfortable image during extended observation.
- Compact weight of approximately 720 grams: keeps additional weight on the firearm to a minimum and contributes to a practical setup.
- ThermTec AutoSight System and Recoil Activated Video: provide additional functionality during use and make it possible to record important moments automatically.
- Recoil resistance up to 6000 joules and IP67: designed for use on powerful hunting firearms and protected against dust and water during field use.
Included with the ThermTec Ibex 320L
- 1× ThermTec Ibex 320L
- 1× User manual
- 2× 18650 batteries
- 1× USB cable
- 1× Lens cleaning cloth
- 1× Battery charger
- 1× Service and support card
Key Specifications ThermTec Ibex 320L
| Model | Ibex 320L |
| Resolution and μm | 384×288, 12 μm |
| Sensor type | Uncooled microbolometer |
| NETD | <18 mK |
| Detection range | Up to 1000 m |
| Rangefinder | Yes, laser rangefinder up to 1000 m |
| Lens diameter | 20mm F0.9 |
| Field of View | 13.1° × 9.8° / 23.04 × 17.28 m at 100 m |
| Display type | AMOLED, 1600×1200 |
| Battery life | Up to 6 hours per battery |
| Replaceable battery | Yes, replaceable 18650 battery |
| Weight | 720 ±5 g |
| Colour palettes | 6 |
| Zoom | 2.1× optical magnification / 1.0 to 4.0× digital zoom |
| Adjustable contrast | Not separately specified by the manufacturer |
| Water resistance | IP67 |
Further Manufacturer Specifications
Spectral range: 8 to 14 μm
Frame rate: 50 Hz
Magnification: 2.1×
Digital zoom: 1.0 to 4.0×
Eye relief: 50 mm
Exit pupil: 6 mm
Dioptre adjustment: ±5D
Reticles: 8
Reticle colours: 5
Zero profiles: 6
Manual zeroing: Yes
Freeze zeroing: Yes
Picture-in-Picture: Yes
Ballistic calculator: Yes
Recoil Activated Video: Yes
ThermTec AutoSight System: Yes
Audio recording: Yes
Image calibration: Manual / automatic
Photo and video playback: Yes
Internal storage: 64 GB
USB Type-C: Data transfer and charging
WiFi hotspot: Yes
Maximum recoil resistance: 6000 J
Mounting: Standard 30mm scope rings
Battery: Replaceable and rechargeable 18650 battery
Operating temperature: -20°C to +50°C
Dimensions: 344 × 86 × 70 mm
The technical dimensions of the ThermTec Ibex 320L include a 30mm mounting tube, a total length of 344 mm and overall dimensions of 344 × 86 × 70 mm. This allows the thermal imaging scope to be mounted using common 30mm scope rings on a suitable mounting system.
View and Test the ThermTec Ibex 320L at JVS-Outdoor
The ThermTec Ibex 320L can be viewed and tested at JVS-Outdoor by appointment. During your visit, you can receive advice from experienced hunters who are familiar with thermal imaging equipment from practical field use. They can explain the differences between the various Ibex models and help determine which lens, sensor resolution, magnification and field of view best suit your style of hunting.
