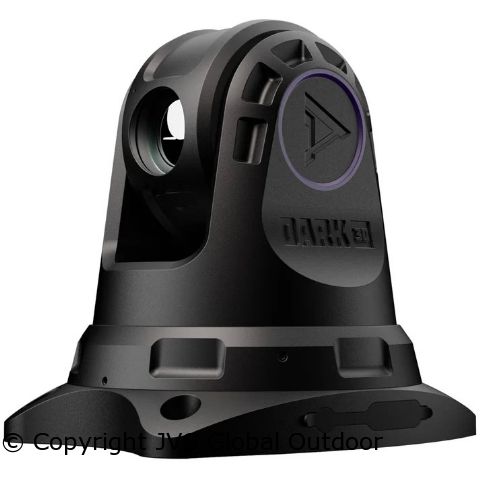

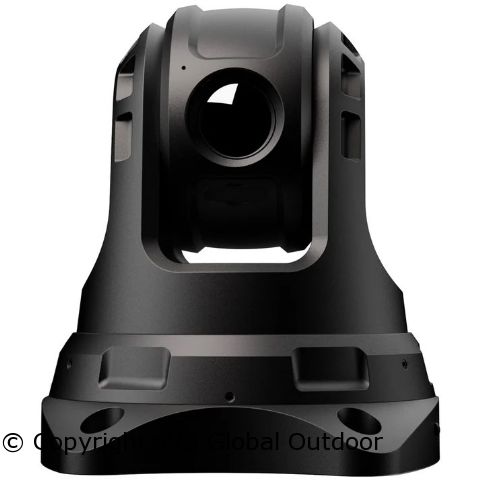

Dark30 Defiance LT 384 PTZ Thermal Camera with 360° Vehicle Observation

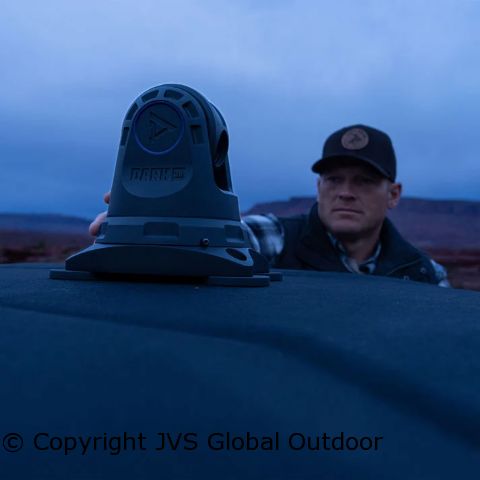

The Dark30 Defiance LT 384 PTZ is a vehicle-mounted thermal imaging camera featuring a 384×288 thermal sensor, 17 μm pixel pitch and a NETD of less than 40 mK. The camera has been developed for hunters, wildlife managers and other users who want to thermally observe large areas from a vehicle without relying on a handheld thermal imaging device behind a vehicle window.
The PTZ camera can rotate continuously through 360° horizontally and move vertically from straight downward to 45° above the horizon. This allows the surroundings of the vehicle to be scanned from an elevated position. The 30mm germanium lens, 1 to 8× digital zoom and detection range of up to 1150 metres make the Defiance LT suitable for locating and tracking heat sources over longer distances.

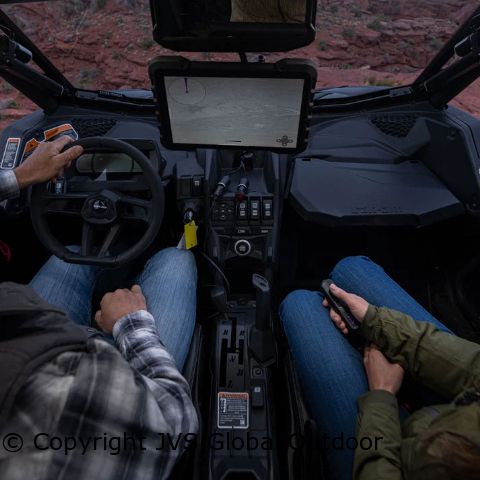

The camera is combined with a 10.1-inch LCD screen and a wireless remote control with joystick. The direct HDMI connection helps minimise image delay. The aluminium housing, IP66 protection rating and 12V power supply make the system suitable for practical vehicle-mounted use during observation, wildlife management and hunting.
Video Dark30 Defiance LT 384 PTZ
Key Features Dark30 Defiance LT 384 PTZ
- 384×288 thermal sensor: provides a clear thermal image for detecting and observing wildlife and other heat sources from a vehicle.
- Continuous 360° pan range: makes it possible to monitor the complete surroundings of the vehicle without manually repositioning the camera.
- Vertical tilt from -90° to +45°: provides a wide observation range from directly downward to well above the horizon.
- Detection range up to 1150 metres: suitable for detecting heat sources over longer distances in open terrain.
- 30mm germanium lens: designed for thermal imaging and combined with a 30 mm focal length.
- 1 to 8× digital zoom: allows detected heat sources to be digitally enlarged for closer observation.
- Wireless joystick control: enables intuitive pan, tilt and zoom operation from inside the vehicle.
- 10.1-inch LCD screen: provides a large viewing area for comfortable observation from the vehicle cabin.
- Direct HDMI connection: provides a direct connection between the camera and screen to help minimise image delay.
- IP66 aluminium housing: protects the camera against dust and powerful water jets, making the system suitable for use in varying weather conditions.
Included with the Dark30 Defiance LT 384 PTZ
The DARK30 catalogue lists the following components and features for the base system:
- Dark30 Defiance LT 384 PTZ thermal imaging camera
- 10.1-inch LCD screen
- Wireless remote control with joystick
- 4 metre HDMI cable
- 12V DC vehicle power connection
- Cable management system
- Protective cover
Key Specifications Dark30 Defiance LT 384 PTZ
| Model | Defiance LT 384 PTZ |
| Resolution and μm | 384×288, 17 μm |
| Sensor type | Thermal sensor |
| NETD | <40 mK |
| Detection range | Up to 1150 m |
| Rangefinder | No |
| Lens diameter | 30 mm |
| Field of View | 12° horizontal / 15° diagonal |
| Display type | 10.1-inch LCD |
| Battery life | Not applicable, 12V DC vehicle power supply |
| Replaceable battery | Not applicable |
| Weight | 2680 g |
| Colour palettes | 5 |
| Zoom | 1 to 8× digital zoom |
| Adjustable contrast | Not separately specified by the manufacturer |
| Water resistance | IP66 |
Further Manufacturer Specifications
SKU: DT27001
Spectral range: 8 to 14 μm
Lens material: Germanium
Focal length: 30 mm
Horizontal rotation: Continuous 360°
Vertical tilt: -90° to +45°
Housing material: Aluminium
Width: 169 mm
Depth: 195 mm
Height: 198 mm
Camera operating temperature: -20°C to +50°C
Ports: 1× TF card slot, 2× HDMI, 2× DC
HDMI cable length: 4 m
Power supply: 12V DC / vehicle power connection
Video output: 1920×1200 pixels
Screen operating temperature: -20°C to +70°C
Screen mounting: Clamp / suction cup
Screen connection: HDMI
Screen brightness: Adjustable
Operation: Wireless remote control with joystick
View the Dark30 Defiance LT 384 PTZ at JVS-Outdoor
The Dark30 Defiance LT 384 PTZ can be viewed at JVS-Outdoor by appointment. You can receive advice from experienced hunters who are familiar with thermal imaging equipment from practical field use. They can explain how a vehicle-mounted PTZ system is used and help determine which DARK30 model best suits your application, terrain and required image quality.
