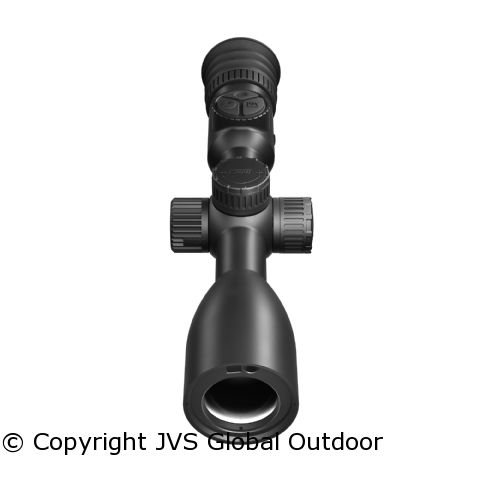

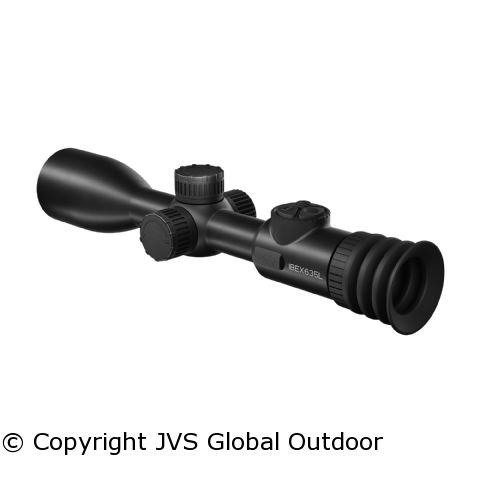

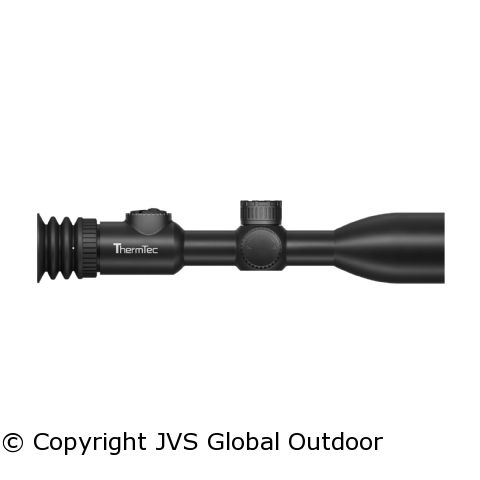

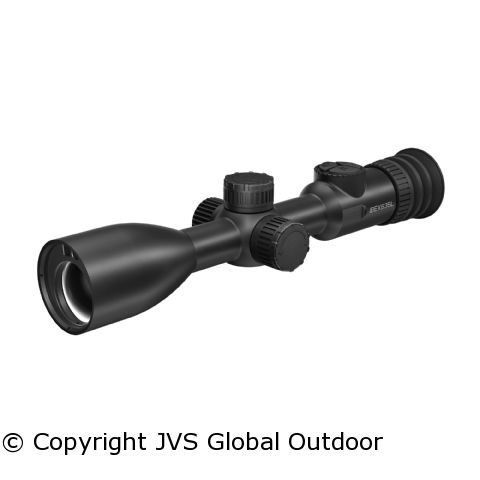

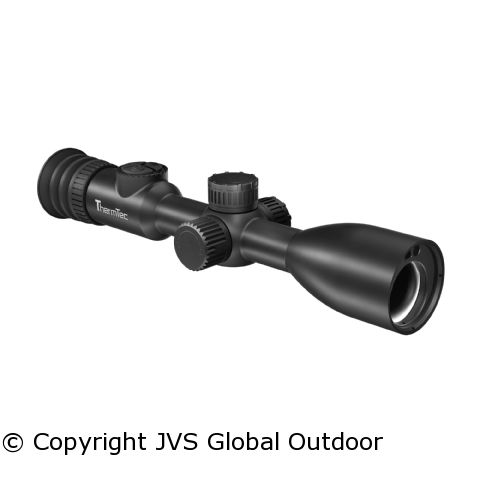

ThermTec IBEX 635L Thermal Imaging Scope with 640×512 Sensor
The ThermTec Ibex 635L is a high-quality thermal imaging scope featuring a 640×512 thermal sensor, 12 μm pixel pitch and a NETD of less than 18 mK. Combined with the fast 35mm F0.8 lens and a detection range of up to 1800 metres, this scope offers a high level of detail and extended range for hunting applications.
The integrated laser rangefinder with a range of up to 1000 metres helps determine the distance to an observed object quickly. The thermal image is displayed on a large 1600×1200 AMOLED display measuring 0.5 inches. ThermTec Super Resolution and AI Calibration support a clear and stable image, even when temperature differences in the surrounding environment are small.
The Ibex 635L also features a ballistic calculator, Picture-in-Picture, Recoil Activated Video with audio recording and the ThermTec AutoSight System. Thanks to its traditional riflescope design and 30mm mounting tube, the model can be mounted using standard 30mm scope rings. The replaceable 18650 battery and IP67-rated housing make the scope suitable for extended and practical use in varying weather conditions.
Key Features of the ThermTec Ibex 635L
- 640×512 thermal sensor with 12 μm pixel pitch: delivers a detailed thermal image that helps distinguish game and the surrounding environment clearly.
- NETD <18 mK: makes small temperature differences easier to detect, which is particularly useful in humid conditions or situations with low thermal contrast.
- 35mm F0.8 objective lens: the fast lens supports a clear image and provides a good balance between field of view and detection range.
- Detection range up to 1800 metres: enables observation and detection of heat sources over longer distances.
- Integrated laser rangefinder up to 1000 metres: quickly provides the distance to the target without requiring a separate rangefinder.
- 1600×1200 AMOLED display: provides a sharp and stable image through the large 0.5-inch display.
- ThermTec Super Resolution and AI Calibration: support improved detail reproduction and a stable thermal image during observation.
- ThermTec AutoSight System: provides additional support when observing and tracking the target during use.
- Recoil Activated Video with audio: can automatically record video and sound around the moment of the shot, making important moments easy to review.
- Recoil resistance up to 6000 joules: designed for mounting on powerful hunting firearms and capable of handling high recoil loads.
Included with the ThermTec Ibex 635L
- 1× ThermTec Ibex 635L
- 1× User manual
- 2× 18650 batteries
- 1× USB cable
- 1× Lens cleaning cloth
- 1× Battery charger
- 1× Service and support card
Key Specifications ThermTec Ibex 635L
| Model | Ibex 635L |
| Resolution and μm | 640×512, 12 μm |
| Sensor type | Uncooled microbolometer |
| NETD | <18 mK |
| Detection range | Up to 1800 m |
| Rangefinder | Yes, laser rangefinder up to 1000 m |
| Lens diameter | 35mm F0.8 |
| Field of View | 12.5° × 10° / 21.9 × 17.6 m at 100 m |
| Display type | 0.5-inch AMOLED, 1600×1200 |
| Battery life | Up to 6 hours per battery |
| Replaceable battery | Yes, replaceable 18650 battery |
| Weight | 770 ±5 g |
| Colour palettes | 6 |
| Zoom | 2.2× optical magnification / 1.0 to 4.0× digital zoom |
| Adjustable contrast | Not separately specified by the manufacturer |
| Water resistance | IP67 |
Note regarding sensor resolution: ThermTec specifies a sensor resolution of 640×512 for the Ibex 635L. A separate table in the official specification document lists 384×288. This appears to be an error in the document, as both the model overview and the other product information specify 640×512.
Further Manufacturer Specifications
Spectral range: 8 to 14 μm
Frame rate: 50 Hz
Magnification: 2.2×
Digital zoom: 1.0 to 4.0×
Eye relief: 50 mm
Exit pupil: 6 mm
Dioptre adjustment: ±5D
Reticles: 8
Reticle colours: 5
Zero profiles: 6
Manual zeroing: Yes
Freeze zeroing: Yes
Picture-in-Picture: Yes
Ballistic calculator: Yes
Recoil Activated Video: Yes
ThermTec AutoSight System: Yes
Audio recording: Yes
Image calibration: Manual / automatic
Photo and video playback: Yes
Internal storage: 64 GB
USB Type-C: Data transfer and charging
WiFi hotspot: Yes
Maximum recoil resistance: 6000 J
Mounting: Standard 30mm scope rings
Battery: Replaceable and rechargeable 18650 battery
Operating temperature: -20°C to +50°C
Dimensions: 342 × 86 × 73 mm
View and Test the ThermTec Ibex 635L at JVS-Outdoor
The ThermTec Ibex 635L can be viewed and tested at JVS-Outdoor by appointment. During your visit, you can receive advice from experienced hunters who are familiar with thermal imaging equipment from practical field use. They can help compare different models and assist you in choosing a thermal imaging scope that matches your type of hunting, required range and intended conditions of use.
