Dark30 Defiance 640 PTZ Thermal Camera with 640×480 Sensor and 360° Vehicle Observation

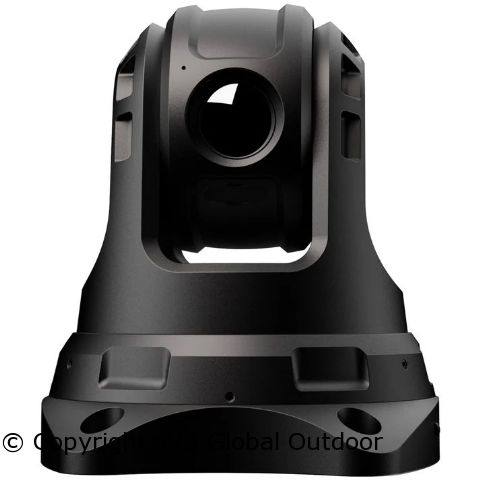

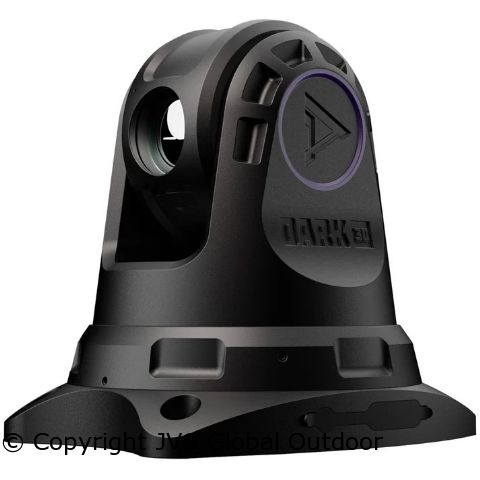

The Dark30 Defiance 640 PTZ is a vehicle-mounted thermal imaging camera featuring a high-resolution 640×480 thermal sensor, 17 μm pixel pitch and a NETD of less than 30 mK. The system has been developed for users who want to thermally monitor large areas from a vehicle while benefiting from greater image detail and thermal sensitivity than the Defiance LT 384 PTZ.

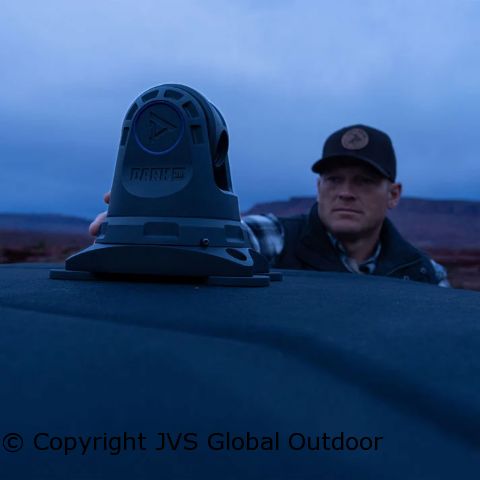

The camera offers a continuous 360° pan range and can tilt vertically from -90° to +45°. Mounting the camera on top of the vehicle creates an elevated observation point without side windows or the windscreen interfering with the thermal image. With a detection range of up to 1150 metres, a 32mm germanium lens and 1 to 8× digital zoom, the surroundings can be scanned quickly and heat sources can be followed accurately.

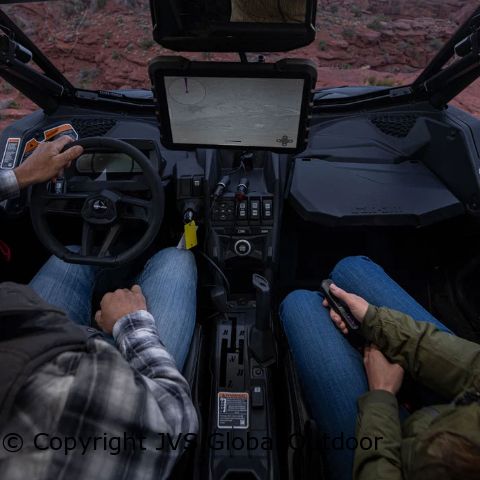

Images are displayed on a 10.1-inch LCD screen with a video output of 1920×1200 pixels. The camera connects directly to the screen via HDMI to help minimise image delay. A wireless remote control with joystick allows pan, tilt and zoom functions to be operated from inside the vehicle cabin. The IP66 aluminium housing and 12V DC power supply make the system suitable for intensive use during hunting, wildlife management and mobile observation.
Video Dark30 Defiance 640 PTZ
Key Features Dark30 Defiance 640 PTZ
- 640×480 thermal sensor with 17 μm pixel pitch: provides a high level of detail for detecting and tracking heat sources from a vehicle.
- NETD <30 mK: supports improved visibility of small temperature differences and provides more thermal detail in challenging conditions.
- Continuous 360° pan range: enables complete observation around the vehicle without repositioning the vehicle.
- Vertical tilt from -90° to +45°: allows observation from directly downward to well above the horizon.
- Detection range up to 1150 metres: provides a generous range for wildlife observation, terrain monitoring and other thermal applications.
- 32mm germanium lens: combined with a 30 mm focal length and designed for high-quality thermal imaging.
- 1 to 8× digital zoom: allows objects to be enlarged further after they have been detected in the thermal image.
- Wireless joystick control: enables fast and intuitive pan, tilt and zoom control from inside the vehicle cabin.
- 10.1-inch LCD display with direct HDMI connection: provides a large image and helps reduce delay between the camera and screen.
- IP66 aluminium housing: provides a robust construction designed for long-term outdoor use in varying conditions.

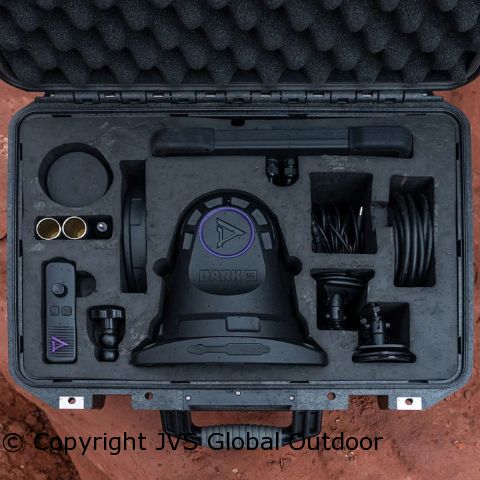

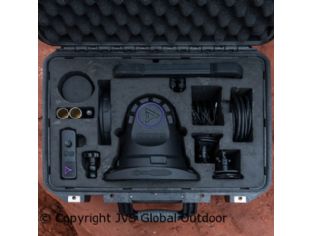

Included with the Dark30 Defiance 640 PTZ
The DARK30 catalogue lists the following components and features for the base system:
- Dark30 Defiance 640 PTZ thermal imaging camera
- 10.1-inch LCD screen
- Wireless remote control with joystick
- 4 metre HDMI cable
- 12V DC vehicle power connection
- Cable management system
- Protective cover
Key Specifications Dark30 Defiance 640 PTZ
| Model | Defiance 640 PTZ |
| Resolution and μm | 640×480, 17 μm |
| Sensor type | Thermal sensor |
| NETD | <30 mK |
| Detection range | Up to 1150 m |
| Rangefinder | No |
| Lens diameter | 32 mm |
| Field of View | 20° horizontal / 25° diagonal |
| Display type | 10.1-inch LCD |
| Battery life | Not applicable, 12V DC vehicle power supply |
| Replaceable battery | Not applicable |
| Weight | 2680 g |
| Colour palettes | 5 |
| Zoom | 1 to 8× digital zoom |
| Adjustable contrast | Not separately specified by the manufacturer |
| Water resistance | IP66 |
Further Manufacturer Specifications
SKU: DT27000
Spectral range: 8 to 14 μm
Lens material: Germanium
Focal length: 30 mm
Horizontal rotation: Continuous 360°
Vertical tilt: -90° to +45°
Housing material: Aluminium
Width: 169 mm
Depth: 195 mm
Height: 198 mm
Camera operating temperature: -20°C to +50°C
Ports: 1× TF card slot, 2× HDMI, 2× DC
HDMI cable length: 4 m
Power supply: 12V DC / vehicle power connection
Video output: 1920×1200 pixels
Screen operating temperature: -20°C to +70°C
Screen mounting: Clamp / suction cup
Screen connection: HDMI
Screen brightness: Adjustable
Operation: Wireless remote control with joystick
View the Dark30 Defiance 640 PTZ at JVS-Outdoor
The Dark30 Defiance 640 PTZ can be viewed at JVS-Outdoor by appointment. You can receive advice from experienced hunters who are familiar with thermal imaging equipment from practical field use. They can explain the advantages of a vehicle-mounted PTZ system and help determine whether the 640×480 version or the Defiance LT 384 PTZ is better suited to your application.
