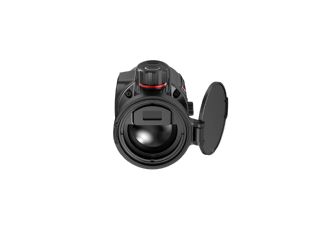

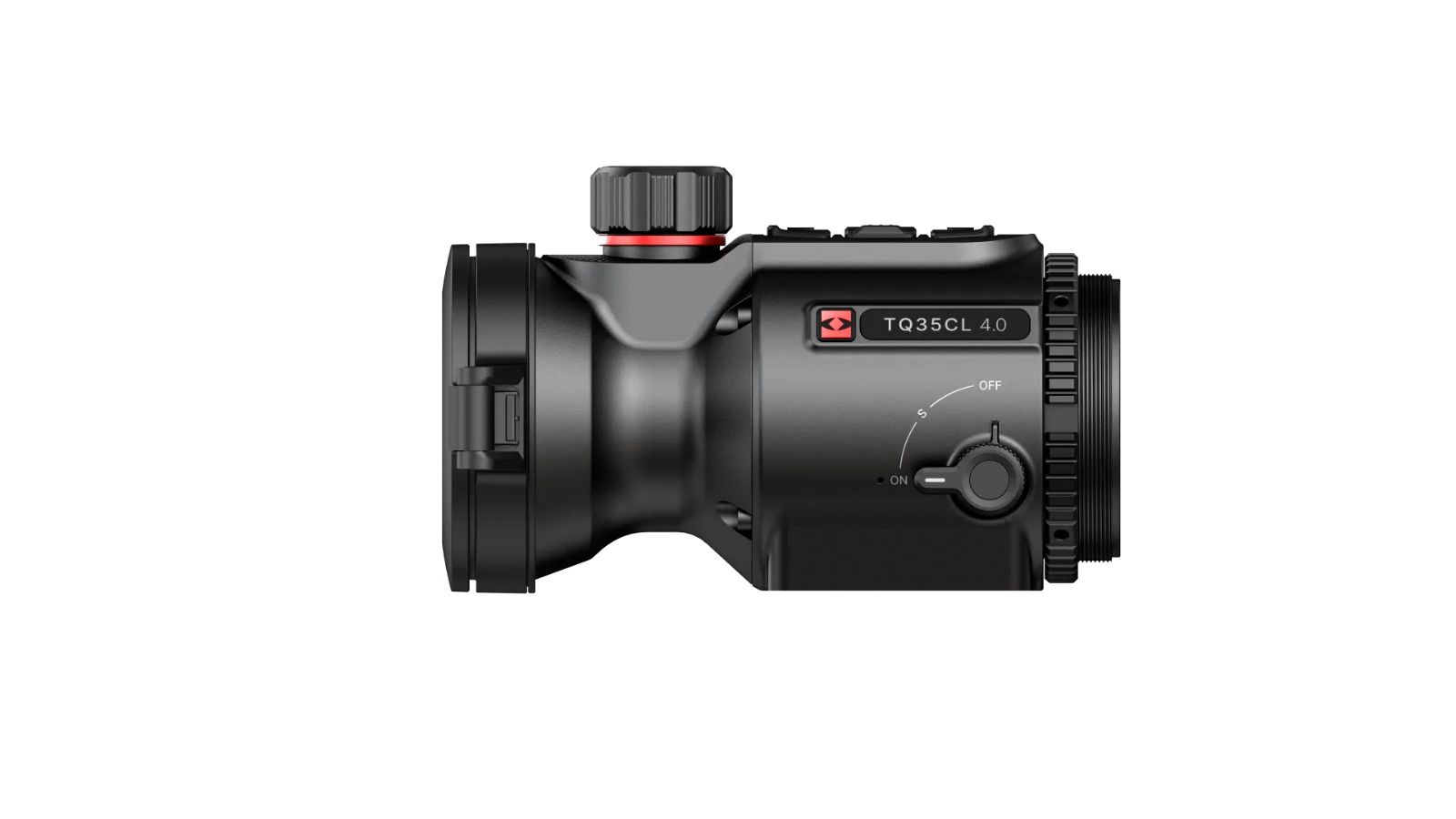

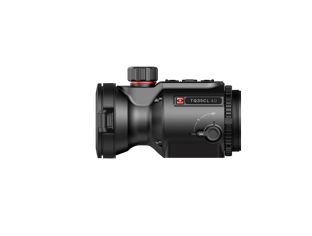

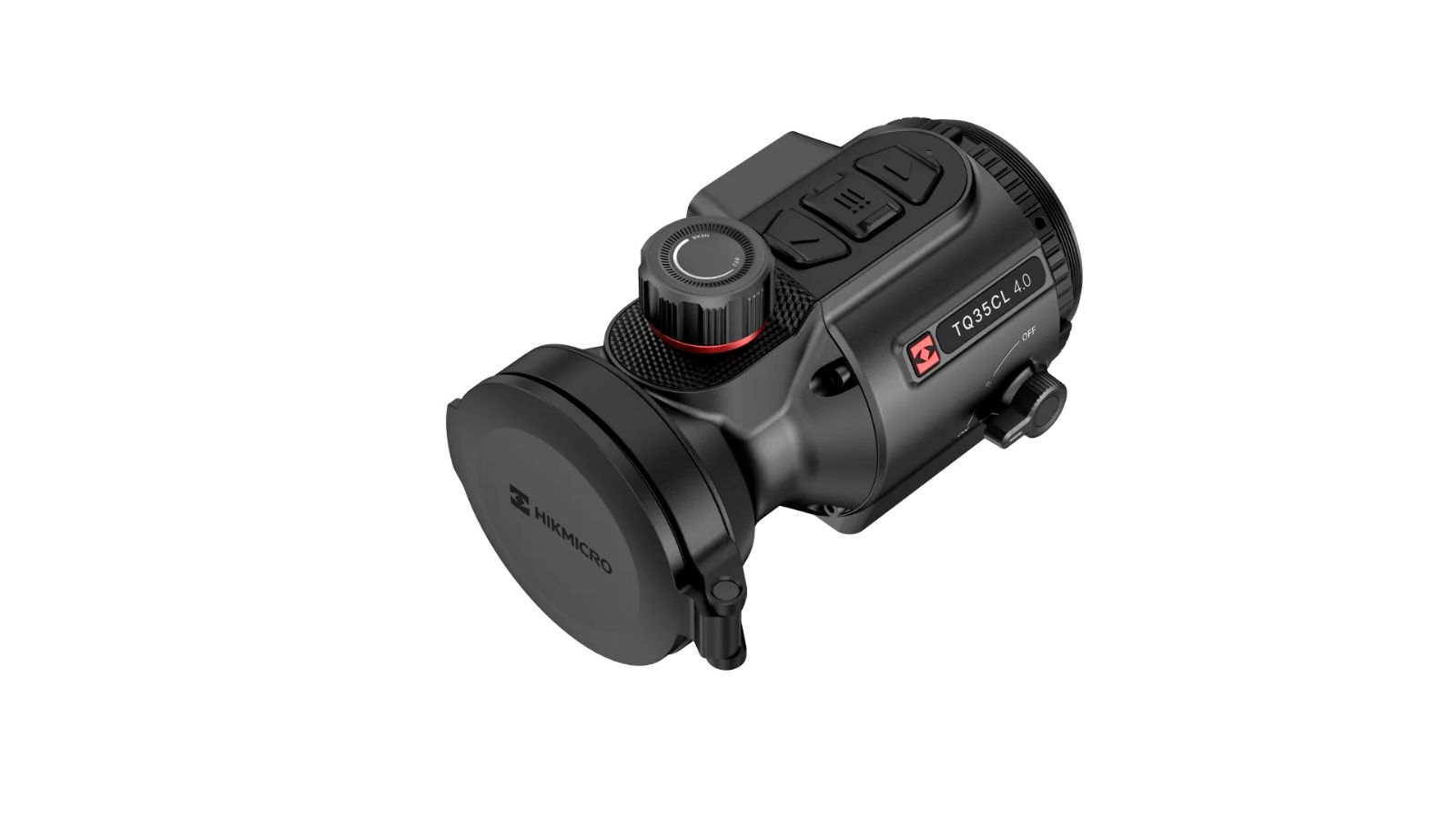

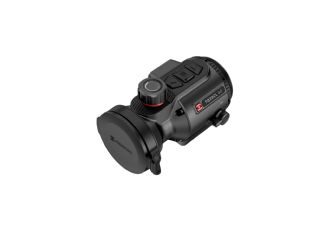

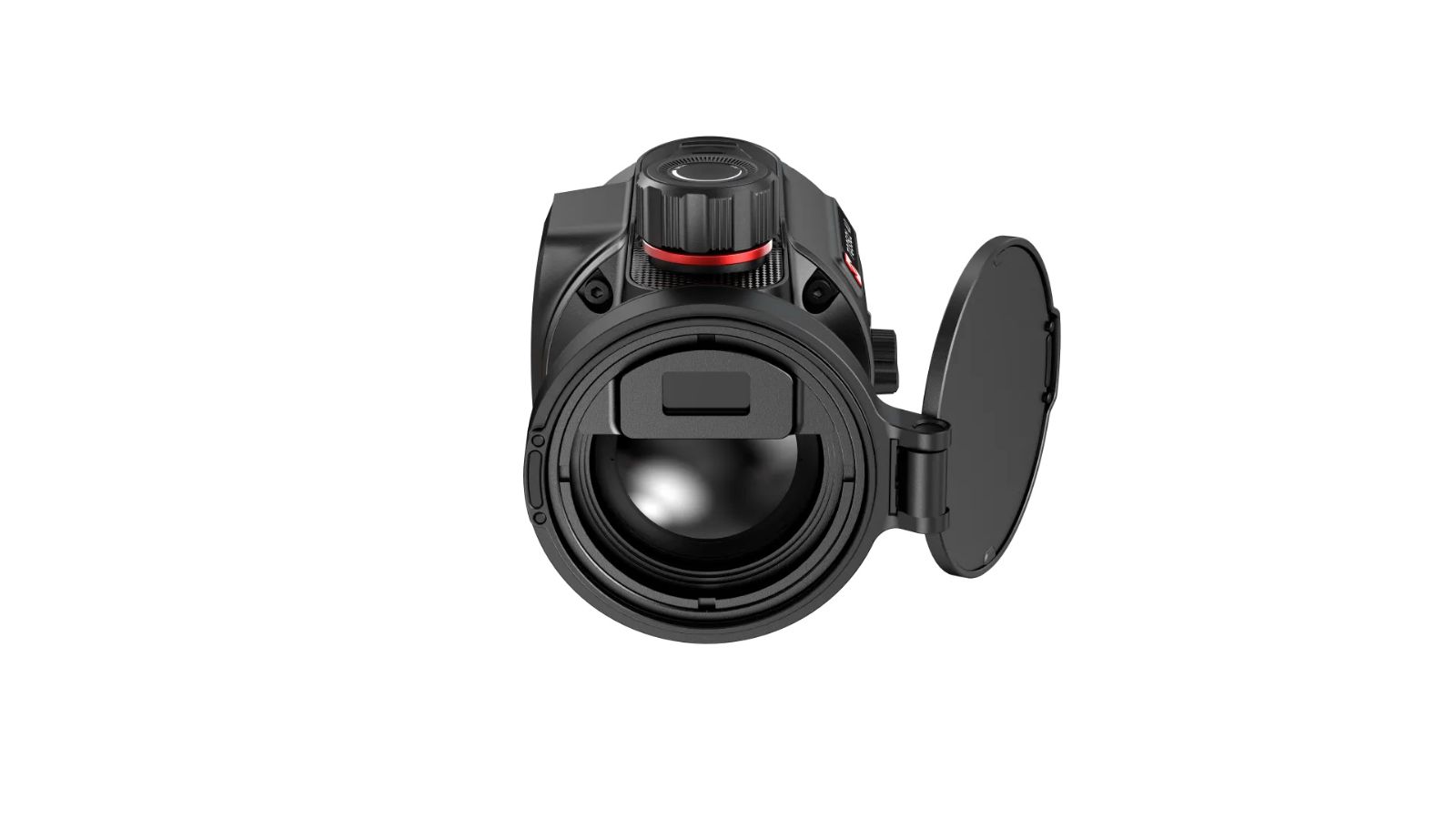

640×512 thermal clip-on with 35 mm objective
The HIKMICRO Thunder TQ35C 4.0 is a thermal clip-on with a 640×512 sensor and a pixel size of 12 μm. Its thermal sensitivity is <12 mK and the objective measures 35 mm at F1.0. As a clip-on, the device has a magnification of 1×.
The field of view is 12.5° × 8.0°, or 21.9 × 14.0 metres at 100 metres. This lets you take in a wide stretch of terrain at once when scanning fields or checking the hunting ground. The 0.49 inch OLED display has a resolution of 1920×1080 and a brightness sensor that adapts the image to the ambient light.
For operation, the Thunder TQ35C 4.0 has a redesigned power switch, a focus button and a customisable quick menu with menu lock. The device starts up in 2 seconds, so you are ready quickly when you are at the stand. The magnetic lens cap protects the lens when you are not using the device.
Image processing is handled by Image Pro 4.0, supported by the Shutterless System (HSIS). A virtual reticle and a built-in tilt sensor are included. You can record photos and videos, also automatically on recoil, and manage the device from your smartphone via Wi-Fi and the HIKMICRO Sight app.
10 key features of the HIKMICRO Thunder TQ35C 4.0
- 640×512 sensor with 12 μm pixel size: gives a detailed thermal image for assessing game.
- NETD <12 mK: makes small temperature differences visible.
- 35 mm F1.0 objective: combines a fast lens with a wide field of view.
- Field of view of 12.5° × 8.0°: covers 21.9 × 14.0 metres at 100 metres.
- 0.49 inch OLED display, 1920×1080: with a brightness sensor for a suitable image in changing light.
- Image Pro 4.0 and Shutterless System (HSIS): the image processing of this model, with as few interruptions to the image as possible.
- Built-in tilt sensor and virtual reticle: additional aids during use.
- Recoil activation: photo and video recording can be started by recoil.
- Up to 6 hours of battery life with 2 replaceable batteries: you can carry charged spare batteries.
- IP67 water resistance: suitable for use in the field at -30 to 55 °C.
Operation and quick menu
The redesigned power switch and the focus button form the basis of operation. You can customise the quick menu to the functions you use most. The menu lock prevents settings from changing by accident. The contrast is adjustable.
Photos, videos and HIKMICRO Sight
The Thunder TQ35C 4.0 records photos and videos. Via Wi-Fi, you connect the device to the HIKMICRO Sight app on your smartphone.
Main specifications HIKMICRO Thunder TQ35C 4.0
| Model | HIKMICRO Thunder TQ35C 4.0 |
| Resolution and μm | 640×512, 12 μm |
| Sensor type | Unknown |
| NETD | <12 mK |
| Detection range | Not confirmed |
| Rangefinder | No |
| Lens diameter | 35 mm F1.0 |
| Field of view | 12.5° × 8.0° / 21.9 × 14.0 metres at 100 metres |
| Display type | OLED 0.49 inch, 1920×1080 |
| Battery life | Up to 6 hours |
| Battery replaceable | Yes, 2 replaceable and rechargeable batteries |
| Weight | Not confirmed |
| Colour palettes | Various |
| Zoom options | Digital |
| Adjustable contrast | Yes |
| Water resistance | IP67 |
Additional manufacturer specifications HIKMICRO Thunder TQ35C 4.0
Magnification: 1×
Image stabilisation: No
Operating temperature: -30 to 55 °C at a humidity of 90% or less
Photo and video recording: Yes, also triggered by recoil
App and Wi-Fi: Yes, HIKMICRO Sight
Other features: magnetic lens cap, brightness sensor, start-up in 2 seconds

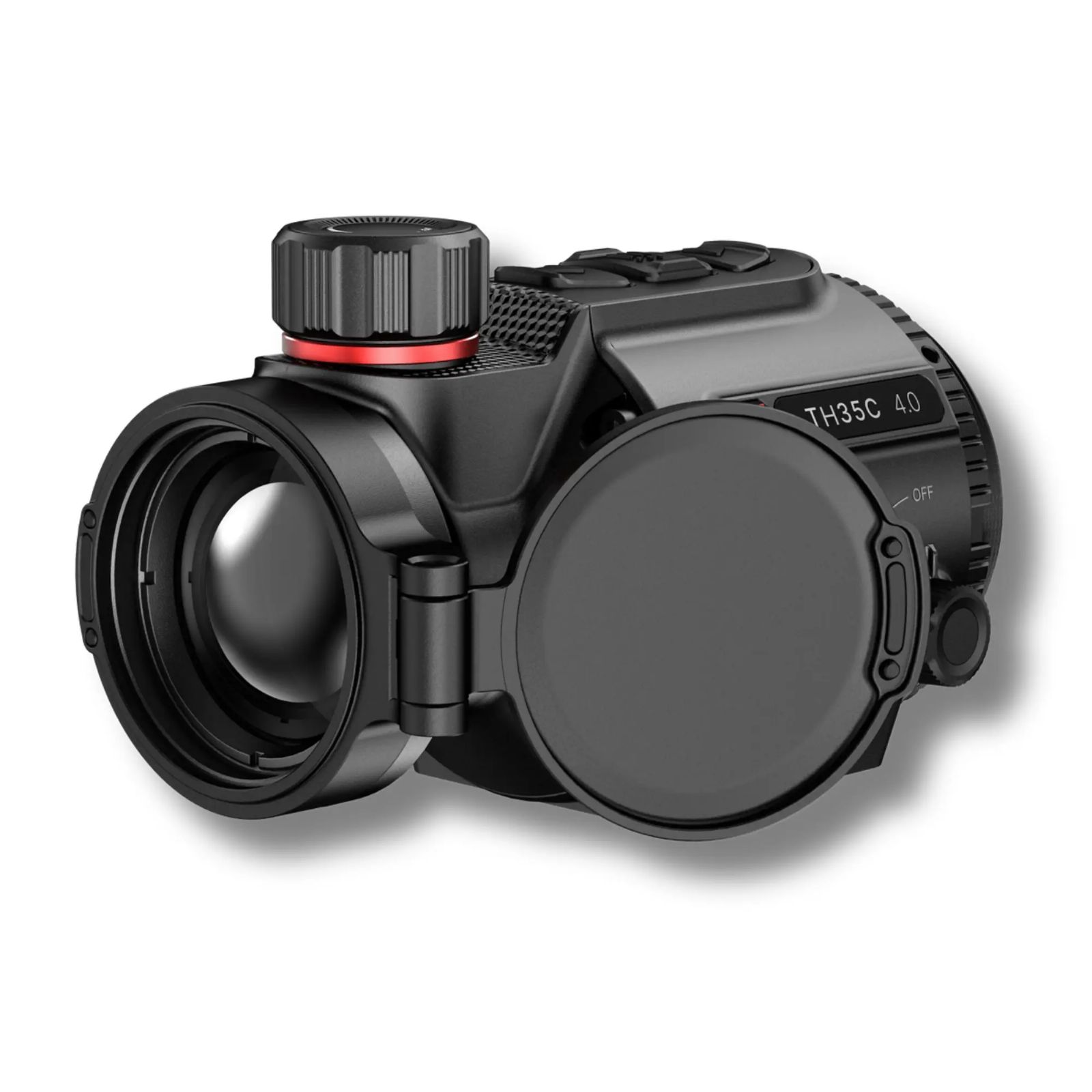

Within the Thunder 4.0 series, the TQ35C 4.0 has the same 640×512 sensor and the same 35 mm objective as the TQ35CL 4.0, but without a laser rangefinder. The TQ35CL 4.0 has a laser rangefinder up to 1,200 metres. The TH35C 4.0 has a 384×288 sensor and a narrower field of view of 7.5° × 5.7°. The TQ50C 4.0 and TQ50CL 4.0 have a 50 mm objective with a field of view of 8.8° × 7.0°. The TX70CL 4.0 has a 1280×1024 sensor with a 70 mm objective and a laser rangefinder.
View the HIKMICRO Thunder TQ35C 4.0 at JVS Outdoor
The HIKMICRO Thunder TQ35C 4.0 can be viewed and tried by appointment at JVS Outdoor. Experienced hunters will advise you on the thermal clip-on that suits the way you hunt and observe.
