1280×1024 thermal clip-on with 70 mm lens and laser rangefinder
The HIKMICRO Thunder TX70CL 4.0 is a thermal clip-on with a 1280×1024 sensor with a 12 µm pixel pitch, an NETD of <12 mK and a 70 mm F1.3 lens. The specified detection range is 3,500 metres. This makes the model interesting for observing game at longer distances in open terrain and during night observation.
The built-in laser rangefinder up to 1,200 metres is located on the lens. This means you do not need a separate device to measure the distance to the game. The detection range of the thermal system and the measuring range of the rangefinder are two different values. The detection range does not automatically tell you at what distance you can reliably identify an animal.
The Thunder TX70CL 4.0 weighs 575 grams and measures 135×64×64 mm. The 0.49-inch OLED display with 1920×1080 pixels has a brightness sensor, which adapts the image to the ambient light. The power switch has been redesigned, and the device is ready for use after 2 seconds. This helps when you want to be able to look quickly during a stand.
The device uses Image Pro 4.0 for image processing and the Shutterless-System (HSIS). You adjust focus with a focus knob. The lens is closed with a magnetic lens cap.
Key Features of the HIKMICRO Thunder TX70CL 4.0
- 1280×1024 sensor with 12 µm pixel pitch: a high thermal resolution for more detail when assessing the thermal image.
- NETD <12 mK: high thermal sensitivity, so small temperature differences become visible.
- 70 mm F1.3 lens: a large lens for observation at longer distances.
- Detection range up to 3,500 metres: the specified range of the thermal system for detecting game.
- Built-in laser rangefinder up to 1,200 metres: measures the distance to the game without a separate device.
- Field of view of 12.8° × 10.3°: this equals 22.4 × 18.0 metres at 100 metres, so you can survey more terrain at once.
- 1920×1080 OLED display with brightness sensor: the image adapts to the ambient light.
- 575 grams and a 2-second start-up time: a light device that is quickly ready for use.
- Recoil activation: photos and videos are recorded automatically based on recoil.
- Replaceable, rechargeable batteries: with a spare battery set you can keep going longer during a long night in the field.
Image and Operation
The Shutterless-System (HSIS) is intended to interrupt the thermal image as little as possible while you scan the terrain. Image Pro 4.0 processes the thermal image. The device has no image stabilisation.
The customisable quick menu gives you fast access to frequently used settings. The menu lock prevents you from changing settings by accident. The contrast is adjustable. The virtual reticle and the built-in tilt sensor are available as functions of this model.
Photos, Videos and App
The Thunder TX70CL 4.0 can record photos and videos. With recoil activation, recording starts automatically after recoil. You can view the recordings in the local album. Via Wi-Fi you connect the device to the HIKMICRO Sight app.
Battery and Operating Time
The device runs on 2 replaceable, rechargeable batteries. The specified battery life is 5 hours. For longer stands, bring a spare battery set so you can swap the batteries in the field.
Main Specifications HIKMICRO Thunder TX70CL 4.0
| Model | HIKMICRO Thunder TX70CL 4.0 |
| Resolution and μm | 1280×1024, 12 μm |
| Sensor type | Unknown |
| NETD | <12 mK |
| Detection range | Up to 3,500 metres |
| Rangefinder | Yes, laser rangefinder up to 1,200 metres |
| Lens diameter | 70 mm, F1.3 |
| Field of view | 12.8° × 10.3° (22.4 × 18.0 metres at 100 metres) |
| Display type | OLED, 0.49 inch, 1920×1080 |
| Battery life | 5 hours |
| Battery replaceable | Yes, 2 replaceable, rechargeable batteries |
| Weight | 575 grams |
| Colour palettes | Various |
| Zoom options | Digital |
| Adjustable contrast | Yes |
| Water resistance | IP67 |
Additional Manufacturer Specifications HIKMICRO Thunder TX70CL 4.0
Dimensions: 135×64×64 mm
Operating temperature: -30 °C to +55 °C
Humidity: 90% or less
Sensor: 1280×1024, in-house production
Photo and video recording: Yes
App and Wi-Fi: Yes, HIKMICRO Sight
Image stabilisation: No
Start-up time: 2 seconds

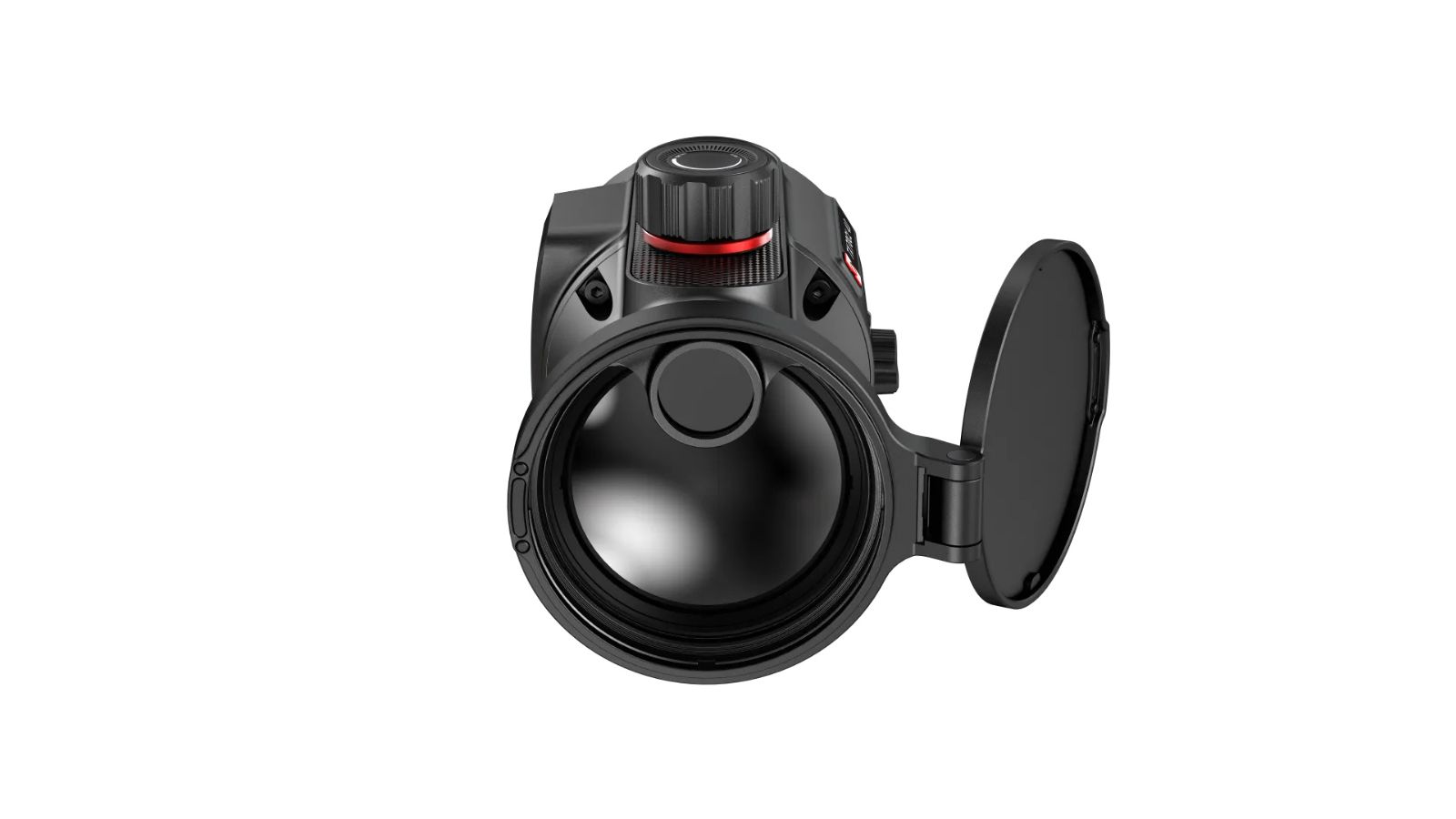

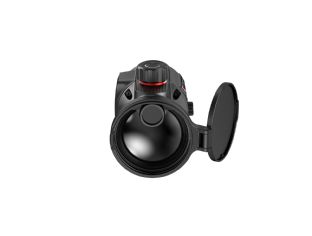

Lens cap: magnetic
The Thunder 4.0 series includes variants with a 35 mm or 50 mm lens and 384×288 or 640×512 sensors. Of the models mentioned, the TX70CL 4.0 is the only one with a 1280×1024 sensor and a 70 mm lens. Its detection range of 3,500 metres is higher than that of the TQ50C 4.0 and TQ50CL 4.0 (2,600 metres), the TQ35CL 4.0 and the TH35C 4.0 (1,800 metres). Its field of view of 12.8° × 10.3° is larger than that of the TQ35C 4.0 and TQ35CL 4.0 (12.5° × 8.0°) and that of the TQ50C 4.0 and TQ50CL 4.0 (8.8° × 7.0°). At 575 grams, the TX70CL 4.0 is heavier than the TH35C 4.0 (542 grams) and the TQ35CL 4.0 (560 grams). The TX70CL 4.0, TQ35CL 4.0 and TQ50CL 4.0 have a laser rangefinder up to 1,200 metres. The TH35C 4.0, TQ35C 4.0 and TQ50C 4.0 have no laser rangefinder.
View the HIKMICRO Thunder TX70CL 4.0 at JVS Outdoor
The HIKMICRO Thunder TX70CL 4.0 can be viewed and tried at JVS Outdoor by appointment. Experienced hunters will advise you on the thermal clip-on that suits the way you hunt and observe.
