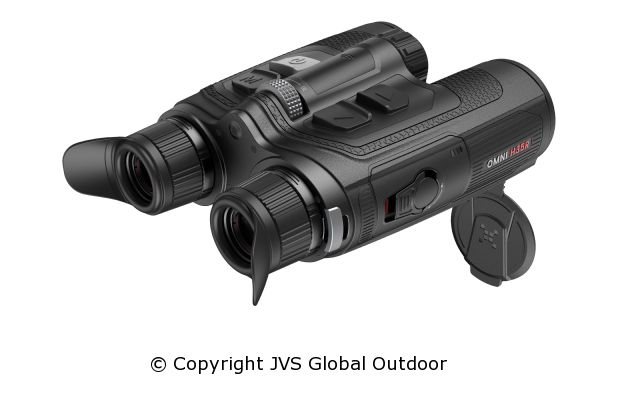

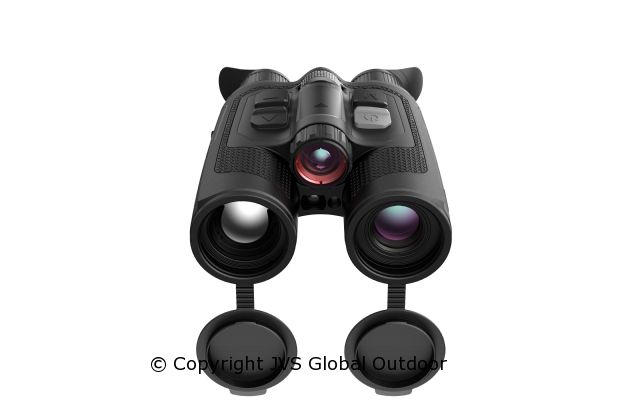

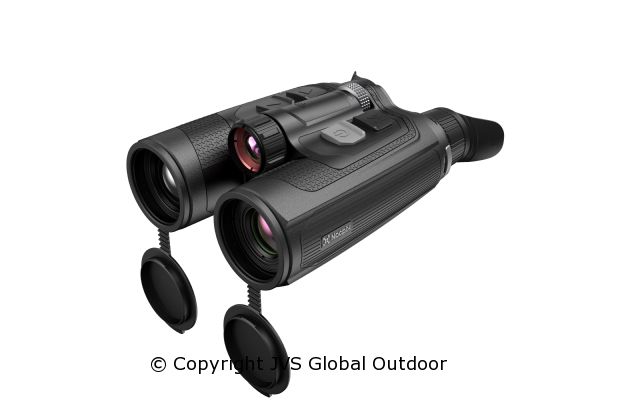

8K multispectral binoculars with 640 × 512 thermal sensor
The Nocpix OMNI H35R is a multispectral binocular that combines thermal imaging, digital day and night vision, and infrared night vision in one device. The thermal mode uses a 640 × 512 sensor with 12 μm pixel pitch, a NETD of ≤15 mK and a 35 mm F0.9 lens. In digital mode, the OMNI features an 8192 × 6144 8K sensor with a fast 50 mm F1.8 lens.
With a thermal detection range of up to 1800 metres and thermal magnification from 2× to 16×, the H35R is highly suitable for observing game at longer distances. The integrated laser rangefinder up to 1000 metres allows you to quickly determine the distance to game or another object.
An important advantage of the Nocpix OMNI is its ergonomic operation. Separate adjustment wheels on the underside allow you to quickly and precisely focus the digital and thermal modes. For zooming in and out, you use the digital zoom ring near the eyepieces. This allows you to operate the main functions without changing your normal grip on the binoculars.
The low weight is another notable advantage. The magnesium housing weighs less than 900 grams without batteries. Combined with electronic image stabilisation, the non-slip grip and the 1600 × 1200 AMOLED display, this makes the OMNI H35R comfortable to use during longer observation sessions.
Video Nocpix OMNI H35R
Key features Nocpix OMNI H35R
- 640 × 512 thermal sensor with 12 μm pixel pitch, provides high thermal resolution for detailed observation of game.
- NETD ≤15 mK, provides high thermal sensitivity and helps reveal small temperature differences.
- Detection range up to 1800 metres, suitable for detecting and observing game at longer distances.
- 8192 × 6144 8K digital sensor, delivers a highly detailed digital image for observation during the day and in low-light conditions.
- 35 mm F0.9 thermal lens, provides a good combination of range, detail and thermal sensitivity.
- Thermal magnification from 2× to 16×, provides both a wide overview and the ability to observe more precisely at longer distances.
- Digital magnification from 3× to 18×, offers a wide zoom range in digital mode.
- Laser rangefinder up to 1000 metres, allows you to directly determine the distance to game or another object.
- Electronic image stabilisation, helps keep the image steadier during observation and when zooming.
- Less than 900 grams without batteries, provides a relatively low weight for a multispectral binocular with multiple integrated imaging systems.
Thermal imaging, 8K daytime vision and night vision
The Nocpix OMNI H35R is more than just a thermal imaging binocular. During the day, you can use the digital 8K mode for a detailed colour image. When darkness falls, you can easily switch to thermal mode. For digital night vision, the H35R is also supplied with an 850 nm IR illuminator.
In thermal mode, you can choose from White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson and Viridian. Brightness, sharpness and contrast can also be adjusted. This allows you to adapt the thermal image to the conditions and your personal preferences.
Intuitive focusing and zooming

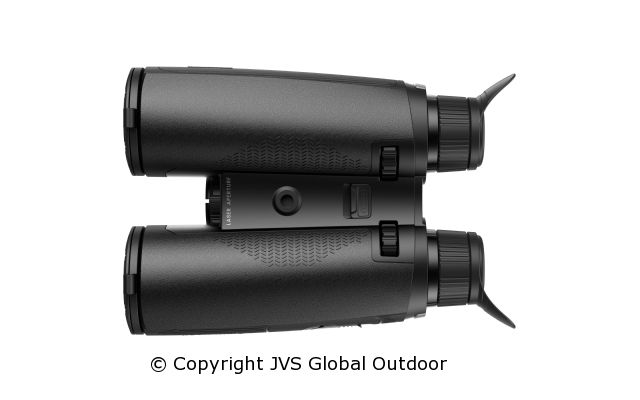

Nocpix has paid particular attention to ease of use with the OMNI. The focusing wheels are located on the underside of the binoculars, directly within reach of your fingers. The digital and thermal modes can be focused independently.
The digital zoom ring near the eyepieces is used to adjust the magnification. This allows you to quickly focus and zoom during observation without constantly changing your grip. The zoom can be adjusted in small 0.5× increments.
Photos, videos and Nocpix App
With 64 GB of internal storage, you can save photos and videos of your observations. Via Wi-Fi, the thermal binoculars can be connected to the Nocpix App.
The app allows you to view live images, transfer files, adjust settings and perform firmware updates.
Included accessories Nocpix OMNI H35R
- Nocpix OMNI H35R multispectral binoculars
- Carrying case
- 850 nm IR illuminator
- 4 × 18650 batteries
- 18650 battery charger
- Data cable
- 2-in-1 neck/shoulder strap
- 2 × lens caps
- Lens cleaning cloth
- Quick start guide
- Tripod adapter
Key specifications Nocpix OMNI H35R
| Model | OMNI H35R |
| Resolution and μm | Thermal: 640 × 512, 12 μm / Digital: 8192 × 6144, 1.2 μm |
| Sensor type | Not further specified by the manufacturer |
| NETD | ≤15 mK |
| Detection range | Up to 1800 metres |
| Rangefinder | Yes, laser rangefinder up to 1000 metres |
| Lens | Thermal: 35 mm F0.9 / Digital: 50 mm F1.8 |
| Field of View | Thermal: 12.5° × 9.4° / Digital: 8.8° × 6.6° |
| Display type | AMOLED, 1600 × 1200 |
| Battery life | Up to approximately 7.5 hours at 22 °C |
| Replaceable battery | Yes, internal battery + 2 × replaceable 18650 batteries |
| Weight | Less than 900 grams without batteries |
| Colour palettes | White Hot / Black Hot / Red Hot / Rainbow / Violet / Crimson / Viridian |
| Zoom options | Thermal: 2× to 16× / Digital: 3× to 18× |
| Adjustable contrast | Yes |
| Water resistance | IP67 |
Further manufacturer specifications Nocpix OMNI H35R
Thermal frame rate: 50 Hz
Digital sensor: 8192 × 6144, 1.2 μm
Digital lens: 50 mm F1.8
Digital field of view: 8.8° × 6.6°
Display resolution: 1600 × 1200
Internal storage: 64 GB
Photo recording: Yes
Video recording: Yes
Wi-Fi: Yes
Nocpix App: Yes
Electronic image stabilisation: Yes
Magnesium housing: Yes
Non-slip grip: Yes
Digital zoom increments: 0.5×
IR illuminator: 850 nm, included
Operating temperature: -20 °C to +50 °C
View the Nocpix OMNI H35R at JVS-Outdoor
The Nocpix OMNI H35R is available to view and try by appointment at JVS-Outdoor. Our experienced hunters are happy to help you choose the right thermal imaging device, thermal binoculars or night vision equipment for your hunting and observation needs.
