Pulsar Thermal Imaging Riflescope for Hunting with Ballistic Calculator for Precise Shot Placement, Even at Longer Distances

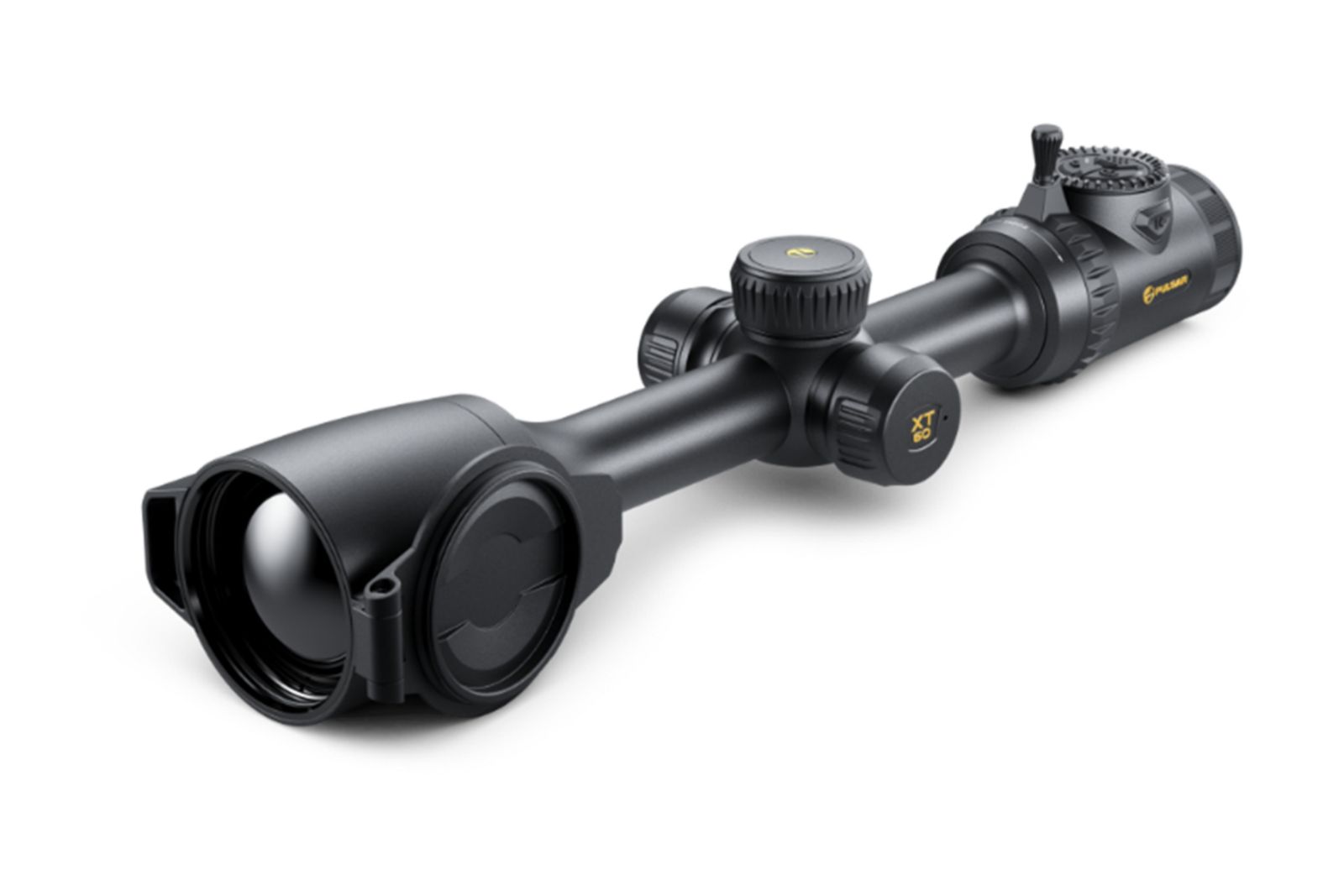

The Pulsar Thermion 3 LRF XR60 is a thermal imaging riflescope featuring a sharp 640×480 pixel thermal sensor, a 12µm pixel pitch and a bright AMOLED display with a resolution of 2560×2560 pixels. This allows you to observe game and the surrounding environment with excellent detail and contrast, making it easier to identify game during stand hunting or stalking. Thanks to its sensitive thermal sensor with a system NETD of less than 18 mK, the XR60 delivers a clear thermal image even in fog, light rain and conditions with minimal temperature differences. The fast 60mm F/1.1 lens, 4x to 40x magnification and detection range of up to 2,800 metres make this riflescope particularly suitable for hunting across open fields, agricultural land and forest edges.
The integrated ballistic calculator is a major advantage when hunting. Combined with the built-in laser rangefinder with a range of up to 1,200 metres, it calculates the point-of-impact correction and recommended aiming point based on the selected ammunition profile, even at longer distances. Thanks to the 30mm tube diameter, the Thermion can easily be mounted using standard riflescope mounts. The XR60 therefore combines the familiar handling of a conventional riflescope with detailed thermal imaging and advanced ballistic features.
10 Key Features of the Pulsar Thermion 3 LRF XR60
- 640×480 Thermal Sensor with 12µm Pixel Pitch
The sensitive thermal sensor delivers a sharp thermal image with excellent detail. This allows you to observe game clearly during stand hunting or stalking and, under suitable conditions, identify animals more effectively, even in complete darkness.
- Highly Sensitive Thermal Sensor with System NETD <18 mK
The low NETD value ensures that even small temperature differences remain visible. This is particularly beneficial during humid nights, in fog or light rain, and when the temperature difference between game and the surrounding environment is minimal.
- Detection Range of up to 2,800 Metres
The extended detection range allows you to detect heat sources at considerable distances. This makes the XR60 ideal for scanning large agricultural fields, open hunting grounds and forest edges during stand hunting.
- Integrated Laser Rangefinder up to 1,200 Metres
The built-in laser rangefinder allows you to measure the distance to game quickly and easily. It offers a specified accuracy of 1 metre and features a scanning mode for continuous distance measurements while observing.

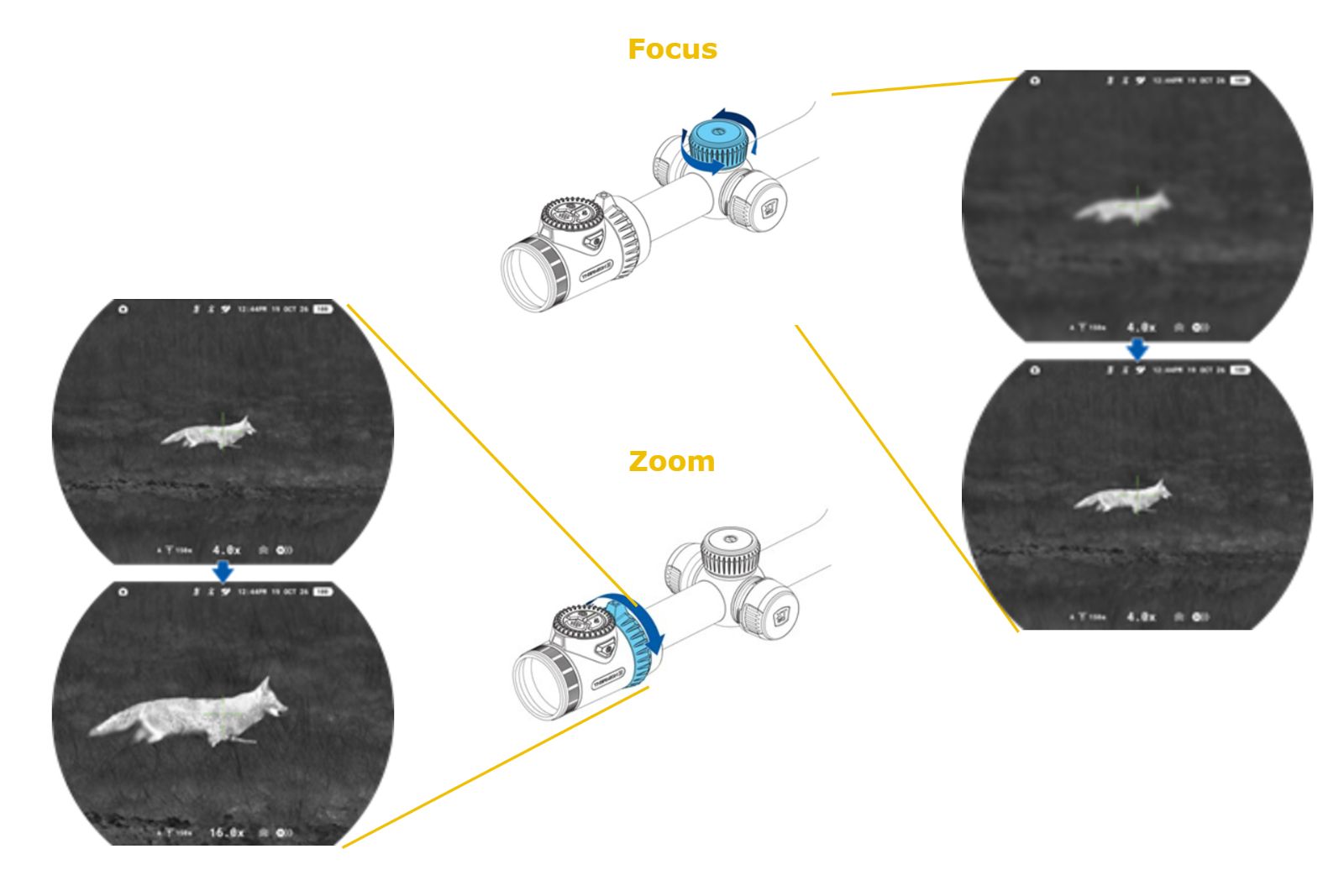

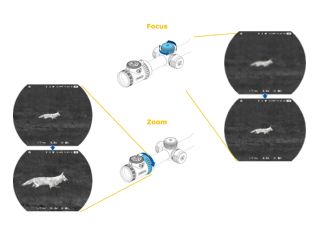

- 4x to 40x Magnification with Stepless Zoom
The 4x base magnification provides a clear image at longer distances. Using the zoom ring, you can easily increase magnification to examine game in greater detail and adjust the sight picture to suit the situation.
- Ballistic Calculator for Point-of-Impact Correction
The integrated ballistic calculator determines the recommended aiming point based on the measured distance and selected ammunition profile. This allows you to account for bullet trajectory and bullet drop when shooting at longer distances.
- Bright AMOLED Display with 2560×2560 Pixels
The high-resolution AMOLED display presents the thermal image with excellent detail and contrast. This allows you to observe game clearly during stand hunting while keeping the reticle sharp and easy to see.
- 10 Zeroing Profiles and Multiple Reticle Options
The XR60 features 10 zeroing profiles for different rifles, calibres and ammunition types. You can also choose from 10 different reticle designs and 11 colour settings, allowing you to customise the riflescope to your preferences.
- IP67 Protection and Dual APS5 Battery System
The robust housing is dustproof and waterproof according to IP67 and suitable for operating temperatures from -25°C to +50°C. Thanks to the integrated and removable APS5 batteries, the riflescope offers a specified operating time of up to 14 hours. The removable battery can even be replaced while the riflescope remains switched on.
- Automatic Shot Recording with 128 GB Memory
The XR60 can automatically record video when a shot is detected. Recording starts 30 seconds before the shot and continues until 30 seconds after the last shot. With 128 GB of internal storage, you can save numerous photos and videos of your hunting experiences.
Included Accessories Pulsar Thermion 3 LRF XR60
The Pulsar Thermion 3 LRF XR60 comes with the following accessories:
- Pulsar Thermion 3 LRF XR60 thermal imaging riflescope
- Rubber eyecup for daytime use
- Rubber eyecup for nighttime use
- Zoom ring lever
- Removable APS5 battery
- APS5 battery charger
- Power adapter
- Wireless remote control
- USB-C cable with USB-A adapter
- Carrying case
- Lens cleaning cloth
- Quick start guide
- Stream Vision Ballistics quick start guide
- Warranty card
The riflescope also features an integrated APS5 battery.
Please note: A suitable 30mm riflescope mount is available separately.
Main Specifications Pulsar Thermion 3 LRF XR60
| Specification | Value |
|---|
| Model | Pulsar Thermion 3 LRF XR60 |
| Resolution and Pixel Pitch | 640×480 pixels, 12µm |
| Sensor Type | Uncooled microbolometer |
| NETD | Sensor <30 mK / system <18 mK |
| Detection Range | 2,800 metres |
| Rangefinder | Yes, laser rangefinder up to 1,200 metres |
| Lens Diameter | 60mm F/1.1 |
| Field of View | 7.3° / 12.8 metres at 100 metres |
| Display Type | AMOLED, 2560×2560 pixels |
| Battery Life | Up to 14 hours at 22°C |
| Replaceable Battery | Yes, removable APS5 battery |
| Weight | 1,360 grams including removable battery |
| Colour Palettes | White Hot / Black Hot / Green / Red Hot / Red Monochrome / Rainbow / Ultramarine / Violet / Sepia |
| Zoom Options | 4x to 40x, continuously adjustable |
| Adjustable Contrast | Yes, levels 0 to 20 |
| Water Resistance | IP67 |
Experience the Pulsar Thermion 3 LRF XR60 at JVS-Outdoor
Would you like to see and test the Pulsar Thermion 3 LRF XR60 yourself? At JVS-Outdoor, you can try this thermal imaging riflescope by appointment.
Our advisors are experienced hunters themselves and understand what matters in real hunting situations. Whether you hunt from a high seat, pursue wild boar at night or regularly stalk game across open terrain, we are happy to help you choose the right thermal imaging riflescope.
During a personal demonstration, we will gladly show you the image quality, magnification, rangefinder and ballistic functions.
Additional Technical Specifications and Features
| Feature | Specification |
|---|
| Item Number | 76589 |
| Refresh Rate | 50 Hz |
| Base Magnification | 4x |
| Maximum Magnification | 40x |
| Eye Relief | 65mm |
| Dioptre Adjustment | -4.5 to +3.5 |
| Objective Lens | F60 F/1.1 |
| Tube Diameter | 30mm |
| Click Value at 100 Metres | 10mm at 4x / 5mm at 8x / 2.5mm at 16x / 1.2mm at 32x / 1mm at 40x |
| Reticle Adjustment Range H/V | 2,000 / 2,000mm at 100 metres |
| Reticle Designs | 10 options |
| Reticle Colours | 11 options |
| Reticle Brightness | 10 levels |
| Zeroing Profiles | 10 |
| Ballistic Calculator | Yes |
| Picture-in-Picture | Yes |
| LRF Scanning Mode | Yes |
| Horizontal Distance Measurement | Yes |
| Sensitivity Settings | Normal / High / Ultra |
| Calibration | Automatic / semi-automatic / manual |
| Photo Resolution | 1280×960 pixels |
| Video Resolution | 1280×960 pixels |
| Photo Format | JPG |
| Video Format | MP4 |
| Audio Recording | Yes |
| Internal Memory | 128 GB |
| Recoil-Activated Recording | Yes |
| Pre-Recording | 30 seconds |
| Wi-Fi | 2.4 / 5 GHz |
| Bluetooth | BLE 4.2 |
| App | Stream Vision 2 |
| Ballistics App | Stream Vision Ballistics |
| USB | USB-C |
| Battery Capacity | 4900 mAh per APS5 battery |
| Battery System | Integrated and removable APS5 Li-ion battery |
| External Power Supply | USB-C, 5V / 9V |
| Maximum Recoil Energy | 6,000 joules |
| Operating Temperature | -25°C to +50°C |
| Dimensions | 391×96×90mm |
| Protection Rating | IP67 |
