Pulsar Thermal Imaging Riflescope for Hunting with Ballistic Calculator for Accurate Shot Placement at Longer Distances

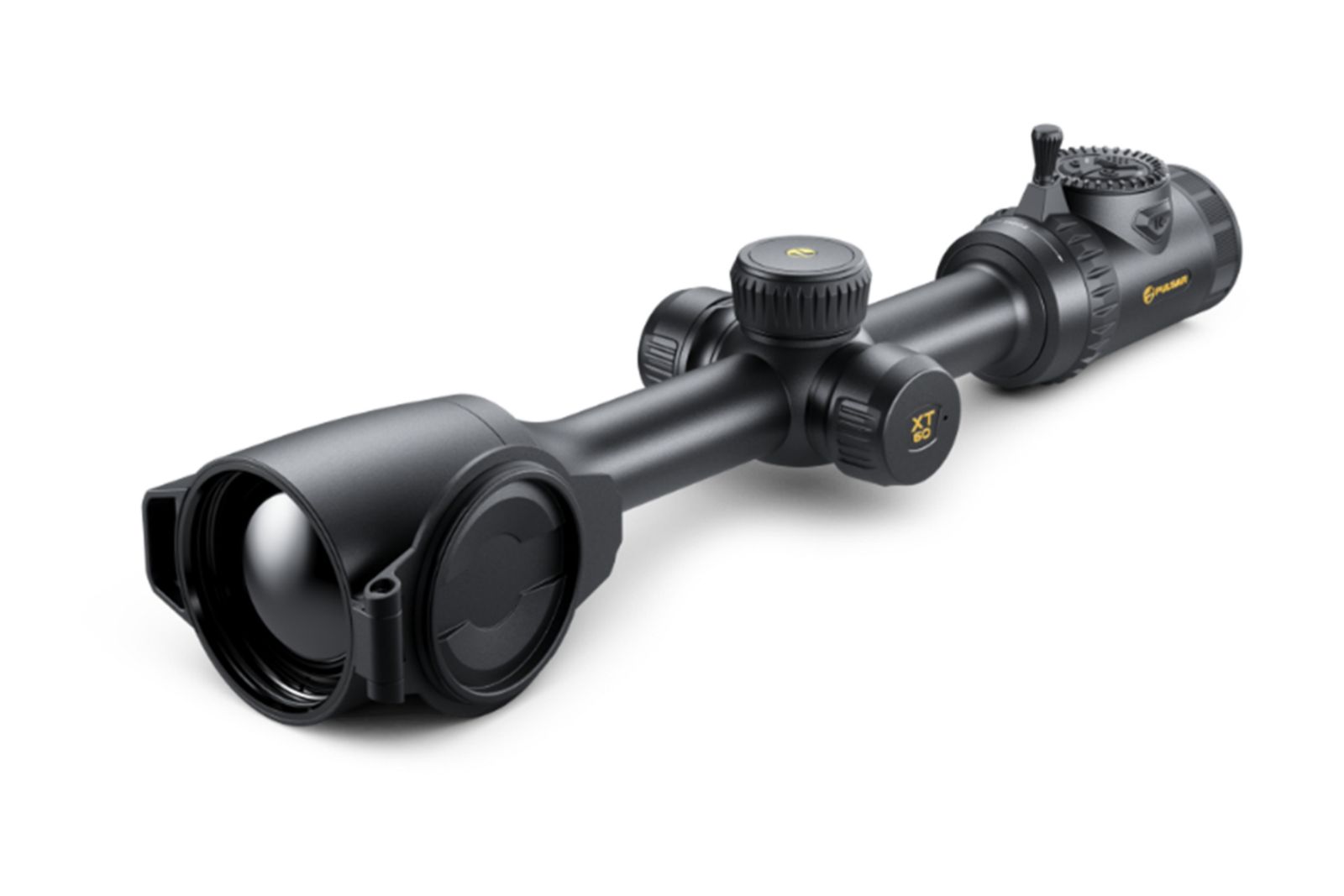

The Pulsar Thermion 3 XT60 is a thermal imaging riflescope featuring a highly detailed 1280x1024 pixel HD thermal sensor, a 12µm pixel pitch and a brilliant AMOLED display with a resolution of 2560x2560 pixels. This combination provides exceptionally detailed images of wildlife and the surrounding environment, making it easier to identify and observe game during stationary hunting or stalking. With its highly sensitive thermal sensor and a system NETD of less than 20 mK, the XT60 delivers excellent thermal image quality even in fog, light rain and conditions with minimal temperature differences. The powerful 60mm F/1.1 objective lens, wide field of view of 25.7 metres at 100 metres and 2 to 24x magnification provide excellent situational awareness while allowing detailed observation of wildlife.
The integrated ballistic calculator is a major advantage for hunters who want to achieve accurate shot placement at longer distances. Combined with the built-in laser rangefinder with a measuring range of up to 1,200 metres, it calculates the required point-of-impact correction and recommended aiming point based on the selected ammunition profile. Thanks to its classic 30mm tube diameter, the XT60 can easily be mounted using standard riflescope mounting systems. This thermal imaging riflescope combines outstanding HD thermal image quality with the familiar handling of a traditional riflescope and advanced ballistic functions.
10 Key Features of the Pulsar Thermion 3 XT60
- 1280x1024 HD Thermal Sensor with 12µm Pixel Pitch
The high-resolution HD thermal sensor delivers exceptionally sharp thermal images with impressive detail. This allows hunters to recognise the shape and distinguishing characteristics of wildlife more clearly, making game identification easier during stationary hunting or stalking.
- Wide Field of View of 25.7 Metres at 100 Metres
The wide field of view provides an excellent overview of the hunting area. This is particularly useful when scanning open fields, forest edges and frequently used game trails. It also makes tracking moving wildlife easier and more comfortable.
- Detection Range of up to 2,800 Metres
The XT60 can detect heat sources at considerable distances. This allows hunters to scan large hunting areas and detect wildlife early when animals move across open fields or along forest edges. The extended detection range is particularly useful when observing large areas from a stationary hunting position.
- Integrated Laser Rangefinder up to 1,200 Metres
The built-in laser rangefinder allows you to measure the distance to wildlife quickly and conveniently. It offers a specified measurement accuracy of 1 metre and features a continuous scanning mode for repeated distance measurements.

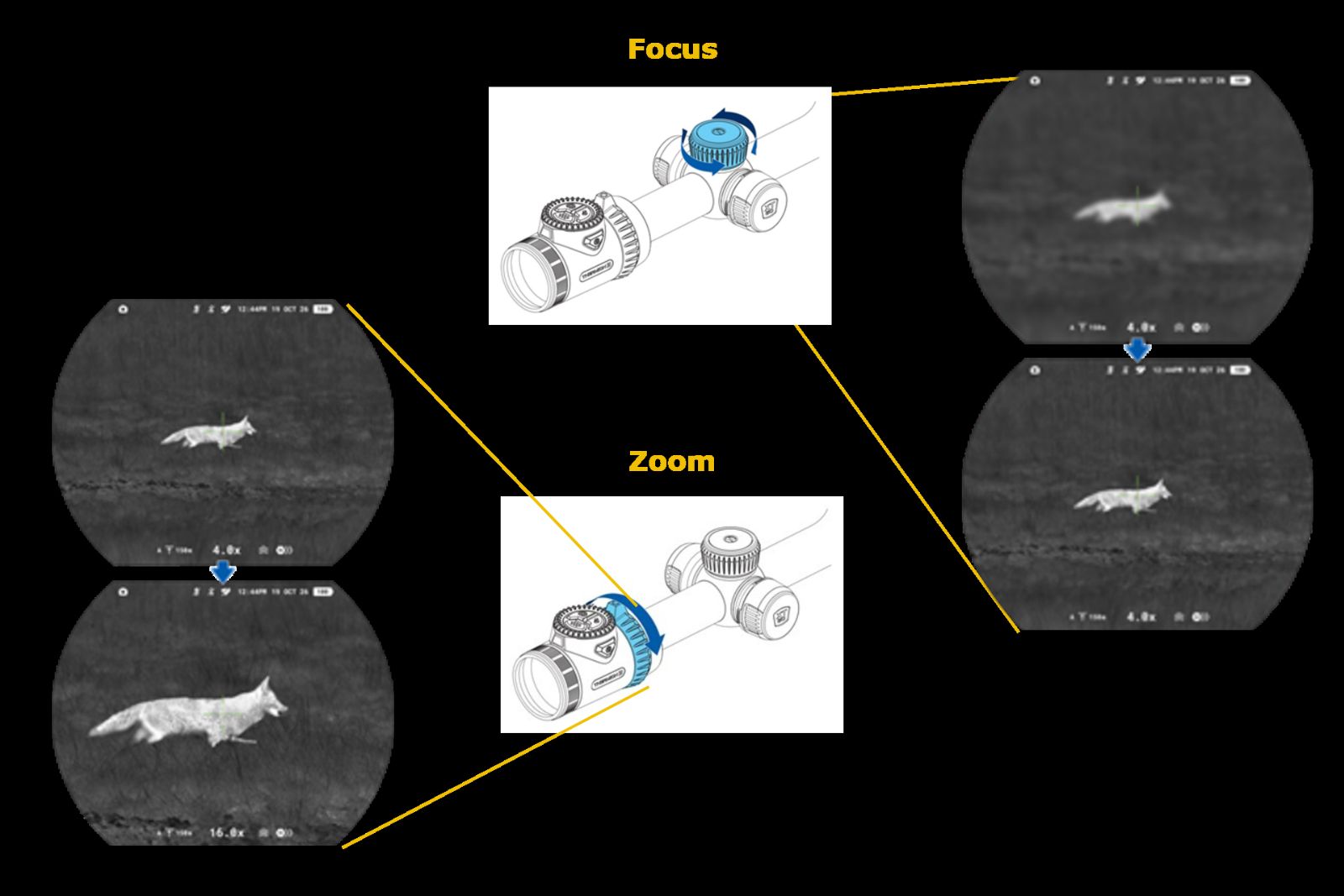

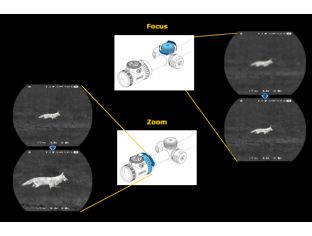

- 2 to 24x Magnification for Excellent Situational Awareness
The 2x base magnification provides a wide and detailed image thanks to the high-resolution HD sensor. This makes it easy to scan large areas efficiently. The continuously adjustable zoom ring allows you to increase magnification smoothly for closer observation and more detailed identification of wildlife.
- Ballistic Calculator for Point-of-Impact Correction
The integrated ballistic calculator determines the recommended aiming point based on the measured distance and selected ammunition profile. This helps hunters account for bullet trajectory and bullet drop when shooting at longer distances.
- High-Resolution AMOLED Display with 2560x2560 Pixels
The brilliant AMOLED display provides highly detailed thermal images with excellent contrast. This makes wildlife easier to observe during nighttime hunting while keeping the reticle clearly visible under different viewing conditions.
- Highly Sensitive Thermal Sensor with System NETD <20 mK
The highly sensitive thermal sensor can detect even small temperature differences. This provides a significant advantage during humid nights, fog, light rain or when the temperature difference between wildlife and the surrounding environment is minimal.
- 10 Zeroing Profiles and Multiple Reticle Options
The XT60 offers 10 zeroing profiles for different rifles, calibres and ammunition types. In addition, you can choose from 10 reticle designs and 11 reticle colour options. This allows you to configure the riflescope according to your hunting equipment and personal preferences.
- IP67 Protection, Dual APS5 Battery System and Automatic Video Recording
The durable housing is dustproof and waterproof according to the IP67 protection rating, making it suitable for use in challenging weather conditions. The dual APS5 battery system provides a specified operating time of up to 8 hours. With 128 GB of internal memory and automatic recoil-activated video recording, you can conveniently capture and save memorable hunting moments.
Package Contents Pulsar Thermion 3 XT60
The Pulsar Thermion 3 XT60 is supplied with the following accessories:
- Pulsar Thermion 3 XT60 thermal imaging riflescope
- Rubber eyecup for daytime use
- Rubber eyecup for nighttime use
- Zoom ring lever
- Removable APS5 battery
- APS5 battery charger
- Power adapter
- Wireless remote control
- USB-C cable with USB-A adapter
- Carrying case
- Lens cleaning cloth
- Quick start guide
- Stream Vision Ballistics quick start guide
- Warranty card
The riflescope also features a built-in APS5 battery.
Please note: A suitable 30mm riflescope mount is available separately.
Main Specifications Pulsar Thermion 3 XT60
| Specification | Value |
|---|
| Model | Pulsar Thermion 3 LRF XT60 |
| Resolution and Pixel Pitch | 1280x1024 pixels, 12µm |
| Sensor Type | Uncooled microbolometer |
| NETD | Sensor <40 mK / System <20 mK |
| Detection Range | 2,800 metres |
| Rangefinder | Yes, laser rangefinder up to 1,200 metres |
| Objective Lens | 60mm F/1.1 |
| Field of View | 14.6° / 25.7 metres at 100 metres |
| Display Type | AMOLED, 2560x2560 pixels |
| Battery Life | Up to 8 hours at 22°C |
| Replaceable Battery | Yes, removable APS5 battery |
| Weight | 1,360 grams including removable battery |
| Colour Palettes | White Hot / Black Hot / Green / Red Hot / Red Monochrome / Rainbow / Ultramarine / Violet / Sepia |
| Magnification | 2 to 24x, continuously adjustable |
| Adjustable Contrast | Yes, levels 0 to 20 |
| Water Resistance | IP67 |
Experience the Pulsar Thermion 3 XT60 at JVS-Outdoor
Would you like to see and test the Pulsar Thermion 3 XT60 yourself? At JVS-Outdoor, you can experience this thermal imaging riflescope during a personal demonstration by appointment.
Our advisors are experienced hunters who understand the practical requirements of hunting equipment. Whether you primarily hunt roe deer, regularly hunt wild boar or observe large fields and forest edges, we are happy to help you select the right thermal imaging riflescope for your needs.
During a personal demonstration, we can show you the image quality, wide field of view, integrated laser rangefinder and ballistic functions of the XT60.
Additional Technical Specifications and Features
Product Number: 76590
Frame Rate: 50 Hz
Base Magnification: 2x
Maximum Magnification: 24x
Eye Relief: 65mm
Dioptre Adjustment: -4.5 to +3.5
Objective Lens: F60 F/1.1
Main Tube Diameter: 30mm
Click Value at 100 Metres: 20mm at 2x / 10mm at 4x / 5mm at 8x / 2.5mm at 16x / 1.7mm at 24x
Reticle Adjustment Range H/V: 4,000 / 4,000mm at 100 metres
Reticle Designs: 10
Reticle Colours: 11 options
Reticle Brightness: 10 levels
Zeroing Profiles: 10
Ballistic Calculator: Yes
Picture-in-Picture (PiP): Yes
LRF Scanning Mode: Yes
Horizontal Distance Measurement: Yes
Sensitivity Settings: Normal / High / Ultra
Calibration: Automatic / semi-automatic / manual
Photo Resolution: 1280x960 pixels
Video Resolution: 1280x960 pixels
Photo Format: JPG
Video Format: MP4
Audio Recording: Yes
Internal Memory: 128 GB
Recoil-Activated Video Recording: Yes
Pre-Recording: 30 seconds
Wi-Fi: 2.4 / 5 GHz
Bluetooth: BLE 4.2
App: Stream Vision 2
Ballistic App: Stream Vision Ballistics
USB Connection: USB-C
Battery Capacity: 4900 mAh per APS5 battery
Battery System: Built-in and removable APS5 lithium-ion batteries
External Power Supply: USB-C, 5V / 9V
Maximum Recoil Energy: 6,000 joules
Operating Temperature: -25°C to +50°C
Dimensions: 391x96x90mm
Protection Rating: IP67
